4 Culligan® Culligan Top Mount (CTM) Water Filters
4 Cat. No. 01029343
CTM Dimensions
Table 3. CTM Dimensions (inches)
Model
21 24 30 36
Overall Depth
21.5 24 30 36
Overall Width
23.8 25.2 30 36
Overall Height (A)
85.5 94 95.7 102
Plumbing Height (B)
74.1 82.6 84.3 90.6
Tank Height (C)
67 75.5 77.2 83.6
NOTE Allow a minimum of 12" above the overall system height for access into the top of tank(s).

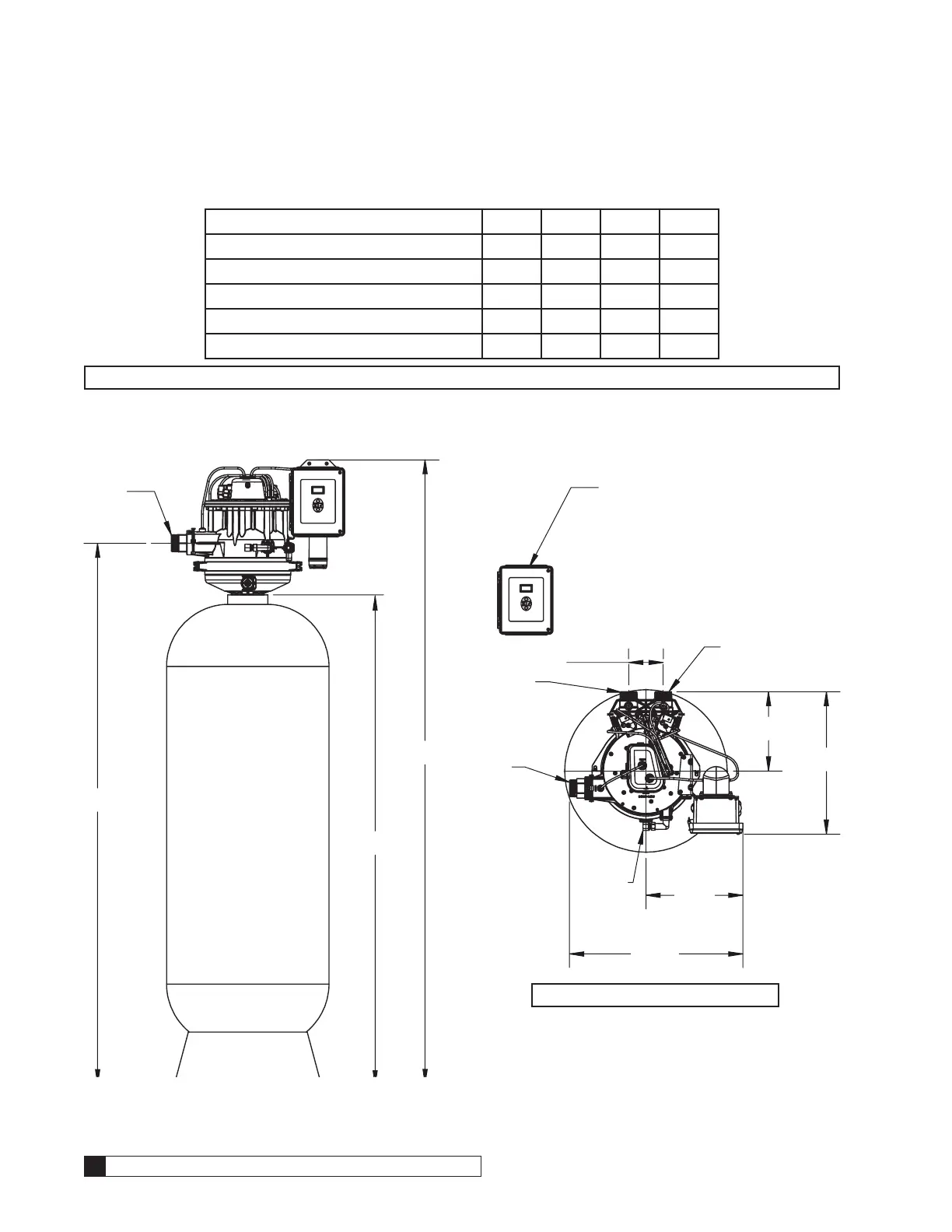

Figure 1. Overview
Controller can be wall mounted
Drain
A
Drain
B
C
Inlet
4.75”
Outlet
11”
19.6”
Brine
13.3”
23.8”
NOTE Dimensions for all models
