12 Culligan® M1 Series Reverse Osmosis
12 Cat. No. 01022940
1S Tubing Assembly Instructions
NOTE DIRECTION OF FLOW
3/8 STEM ELBOWS, TO
BE INSERTED INTO
RECIRCULATION ASSEMBLY
ON MOTOR PANEL (M1-ONLY)
INSERT 3/8" FITTING ASSEMBLY
OVER 3/8" STEM
3/8" TUBE FOR RECIRCULATION/WASTE
REMOVE CAPS
ON 3/8" STEMS
1/2" TUBE FOR
PRODUCT
1/2" TUBE FOR FEED
INSERT 1/2"X3/8" ELBOW
OVER 3/8" STEM
INSERT 1/2"X3/8" ELBOW
OVER 3/8" STEM
REMOVE CAPS
ON 3/8" STEMS

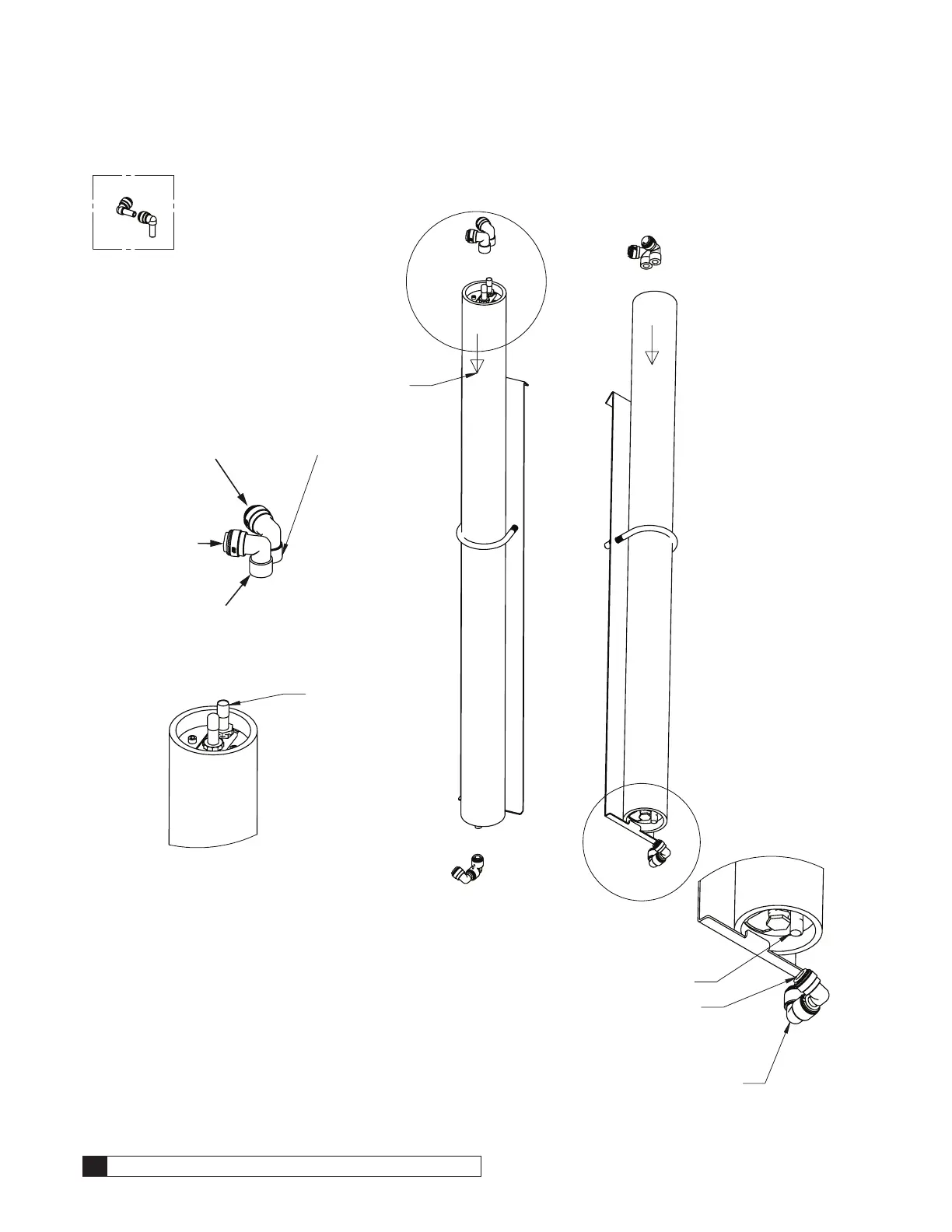

Figure 10. RO 1S tubing assembly instructions.
