M1 RO Installation
13
Cat. No. 01022940

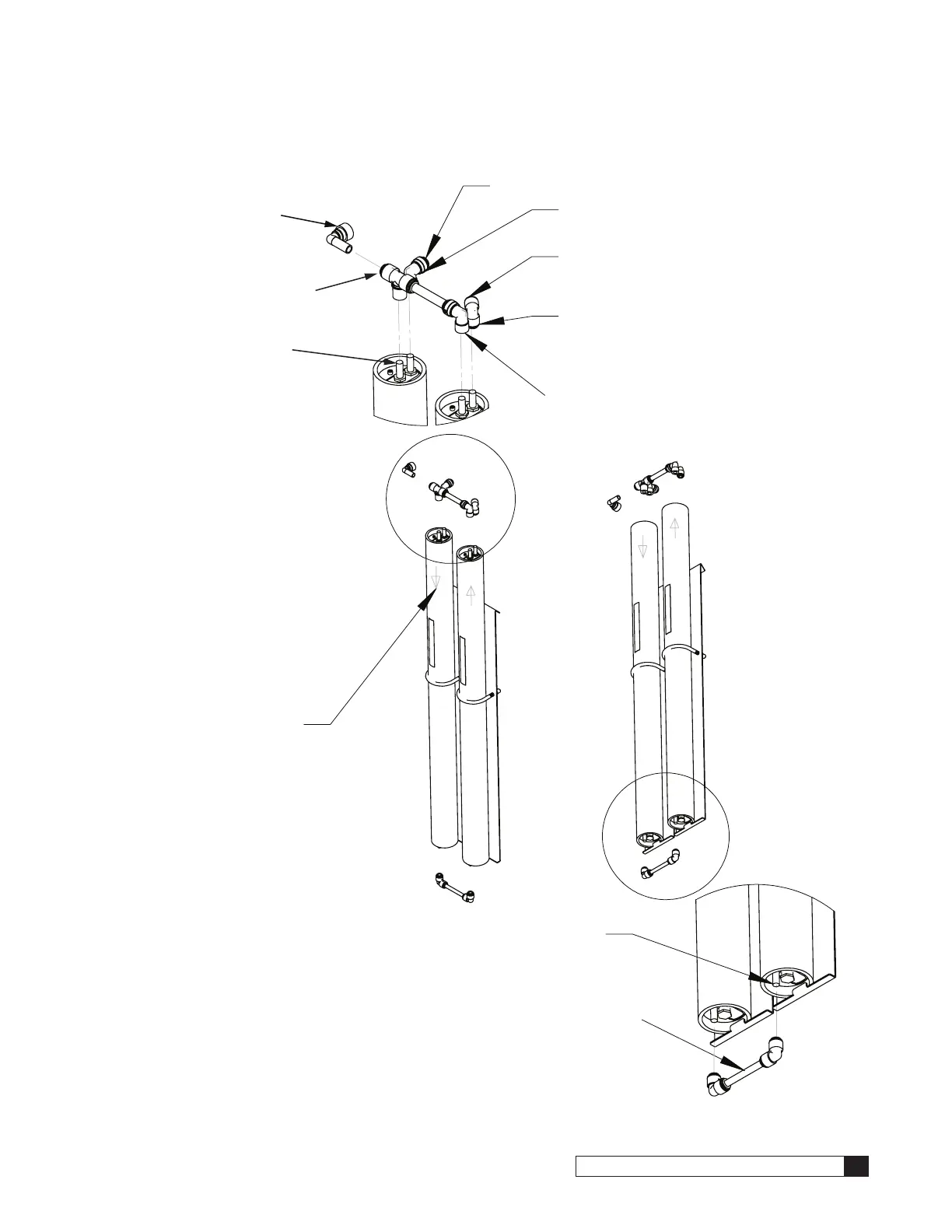

2S/2L Tubing Assembly Instructions
NOTE DIRECTION
OF FLOW
USED FOR FLOOR
STAND APPLICATION
1/2" TUBE FOR FEED
1/2" TUBE
FOR PRODUCT
3/8" TUBE FOR RECIRCULATION/WASTE
INSERT 3/8"X3/8" ELBOW
OVER 3/8" STEM
INSERT 1/2"X3/8" ELBOW
OVER 3/8" STEM
INSERT PRODUCT FITTING
ASSEMBLY OVER 3/8" STEMS
REMOVE CAPS
ON 3/8" STEMS
REMOVE CAPS
ON 3/8" STEMS
INSERT FEED FITTING
ASSEMBLY OVER 3/8" STEMS
(BOTTOM SIDE OF MEMBRANES)
Figure 1
1.
RO 2S/2L tubing assembly instructions.
16
18
