Culligan M1 Series User Manual

M1 RO Installation 15
Cat. No. 01022940
4S/4L Tubing Assembly Instructions
NOTE DIRECTION OF FLOW
1/2" TUBE FOR PRODUCT
USED FOR FLOOR STAND APPLICATION
1/2" TUBE FOR FEED
INSERT 1/2"X3/8" ELBOW OVER 3/8" STEM
INSERT FEED FITTING ASSEMBLY OVER 3/8" STEMS
INSERT 3/8"X3/8" ELBOW OVER 3/8" STEM
3/8" TUBE FOR RECIRCULATION/WASTE
REMOVE CAPS
ON 3/8" STEMS
REMOVE CAPS ON 3/8" STEMS
INSERT FEED FITTING ASSEMBLIES OVER 3/8" STEMS (BOTTOM SIDE OF MEMBRANES)

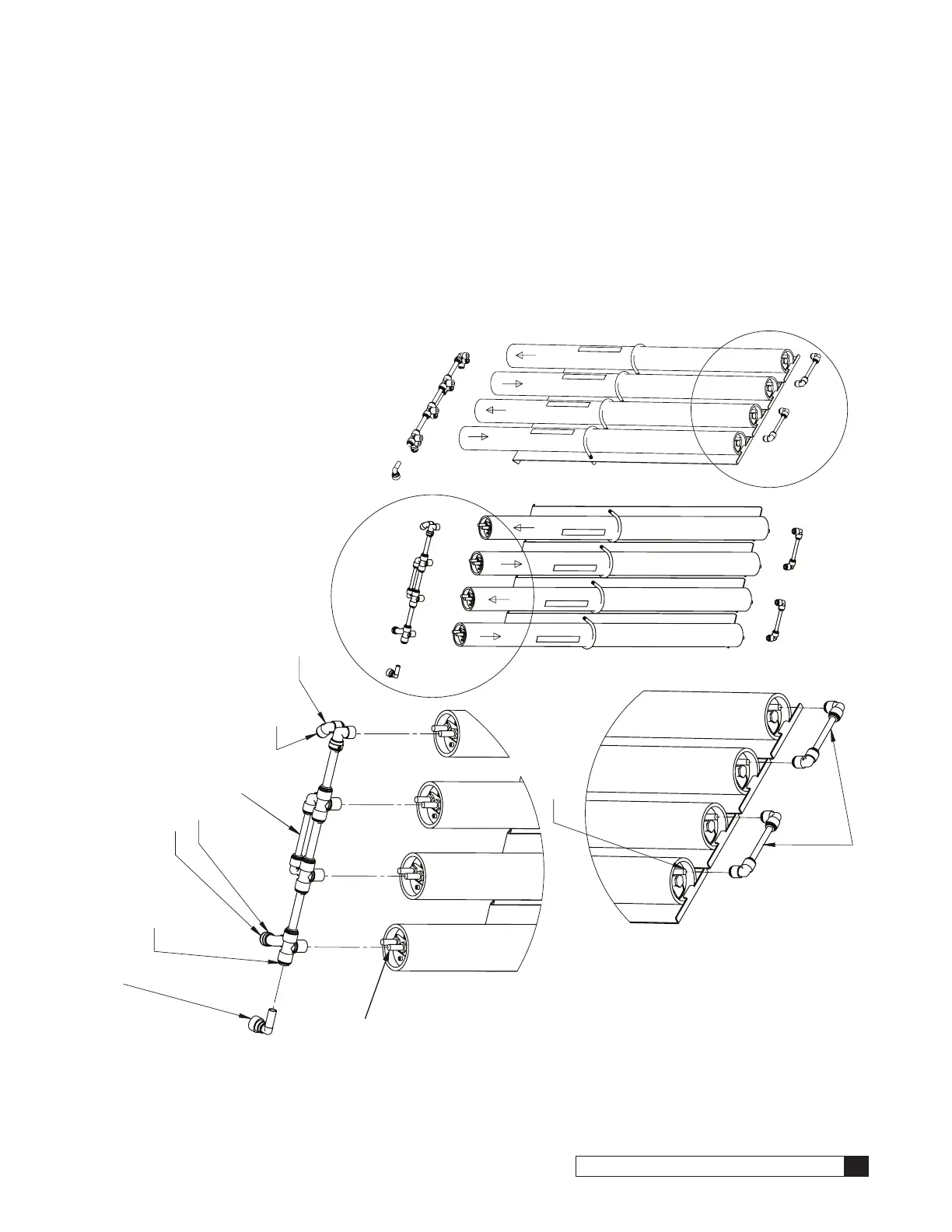

Figure 13. RO 4S/4L tubing assembly instructions.
