16 Culligan® M1 Series Reverse Osmosis
16 Cat. No. 01022940
1F Tubing Assembly Instructions
NOTE DIRECTION
OF FLOW
1/2" TUBE FOR PRODUCT
1/2" TUBE FOR FEED
INSERT 1/2"X1/2" ELBOW
OVER1/2" STEM
INSERT 1/2"X1/2" ELBOW
OVER1/2" STEM
REMOVE CAPS
ON 1/2" STEMS
USED ONLY IN
M1/G1-1F UNITS
INSERT FITTING ASSEMBLY
OVER 1/2" STEM
3/8" TUBE FOR
RECIRCULATION/WASTE
REMOVE CAPS
ON 1/2" STEMS
INSERT INTO RECIRULATION/WASTE
ASSEMBLY ON MOTOR PANEL
M1/G1-1F UNITS ONLY

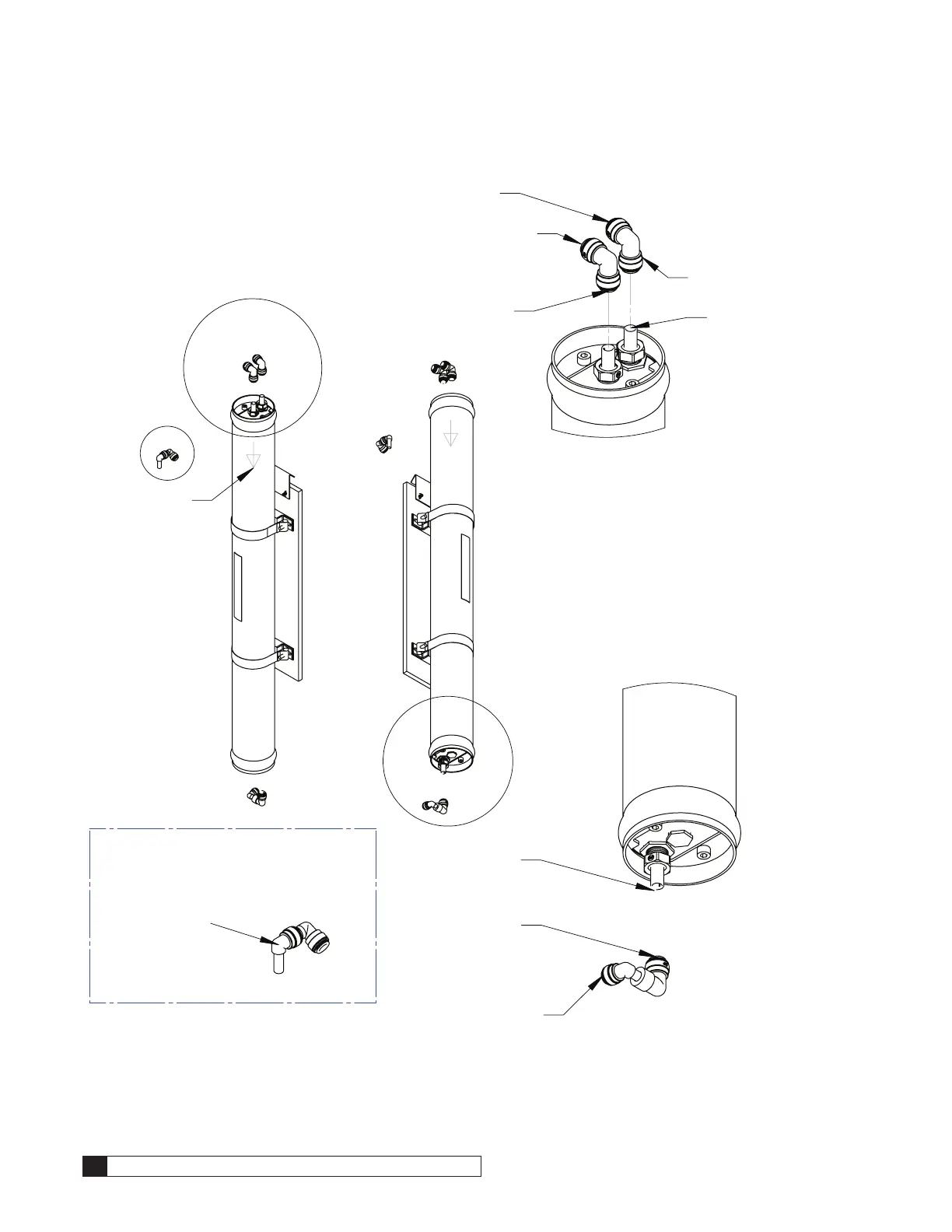

Figure 14. RO 1F tubing assembly instructions.
