M1 RO Installation
17
Cat. No. 01022940

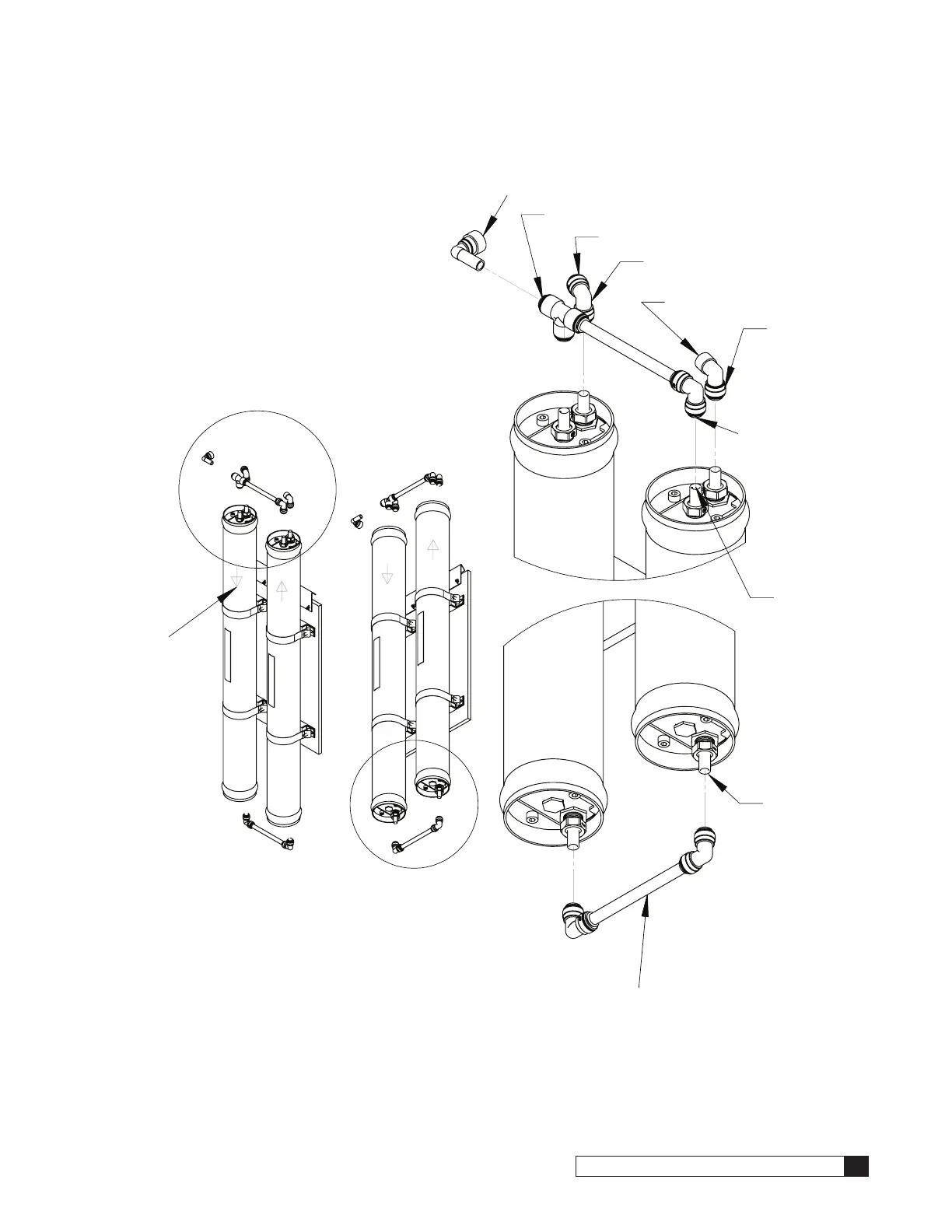

2F Tubing Assembly Instructions
NOTE DIRECTION
OF FLOW
USED FOR FLOOR STAND APPLICATION
1/2" TUBE FOR PRODUCT
1/2" TUBE FOR FEED
INSERT 1/2"X1/2" ELBOW
OVER 1/2" STEM
3/8" TUBE FOR
RECIRCULATION/WASTE
INSERT 3/8"X1/2"
ELBOW
OVER
INSERT PRODUCT
FITTING
ASSEMBLY
REMOVE CAPS
ON 1/2" STEMS
INSERT FEED FITTING
ASSEMBLY OVER 1/2" STEMS
(BOTTOM SIDE OF MEMBRANES)
REMOVE CAPS
ON 1/2" STEMS
1/2" STEM
OVER 1/2" STEMS
Figure 15.
RO 2F tubing assembly instructions.
20
22
