Culligan M1 Series User Manual

48 Culligan® M1 Series Reverse Osmosis
48 Cat. No. 01022940
Drain Assembly
R
2.75
2.43
2.97
1
5
4
7
3
6
8
2
9
10
REVISIONS
REV. DESCRIPTION DCO# LOC BY APP DATE
1 GEN 0 RELEASE CP 4/2/09
2
UPDATE FITTING FOR CHECK
VALVE
CP
5/7/09
3 UPDATE BOM CP 6/10/09
A PRODUCTION RELEASE 011351 CP 10/1/09
2
1
A
B
LOCATION OF GATES, EJECTORS, INSERT LINES, & PARTING LINES MUST BE APPROVED BY CULLIGAN R&D AND MANUF. ENG.
BEFORE BUILDING TOOL. IF SHARP APPEARS ON SOLID FILE, MINIMUM R.010 UNLESS
OTHERWISE NOTED. NO SHARP EDGES OR BURRS EXCLUDING THREADS, CHAMFERS, & PARTING LINES.
ALL DIMENSIONS NOT
SHOWN ARE TO BE BASED
OFF SOLIDWORKS FILE
TOLERANCE BETWEEN ANY TWO POINTS ON
FILE SHOULD MATCH PART WITHIN THE
FOLLOWING TOLERANCE:
THE SOLIDWORKS SOLID FILE FOR THIS ITEM IS THE CONTROLLING DOCUMENT. THIS DRAWING CONTAINS MAINLY INSPECTION
AND CRITICAL DIMSENSIONS. ALL MODIFICATIONS MADE TO PRODUCTION TOOLING OR FIXTURES ARE TO BE BASED SOLELY OFF
OF THE SOLID FILE ONLY EXCLUDING MODELED THREADS.
TOLERANCES, UNLESS
OTHERWISE SPECIFIED
LAST DIGIT TOLERANCE
0. ± 0.030
0.0 ± 0.015
0.00 ± 0.010
0.000 ± 0.005
ANGULAR ±2.0°
ALL INFORMATION CONTAINED ON THIS DOCUMENT IS THE
PROPERTY OF CULLIGAN INT'L (CULLIGAN). THE DESIGN
CONCEPTS AND INFORMATION CONTAINED HEREIN ARE
PROPRIETARY TO CULLIGAN, AND ARE SUBMITTED IN
CONFIDENCE. THE MUST NOT BE DISCLOSED, REPRODUCED,
LOANED OR USED IN ANY OTHER MANNER WITHOUT THE
EXPRESS WRITTEN CONCENT OF CULLIGAN.
SCALEPROJECT N0. TOOL / REFERENCE NO.
1:4 XXXX XXXXX
FILE NAME DRAWN BY DATE
01022053 CP 3/26/2009
SHEET APPROVED BY DATE
1
OF
1
PART DESCRIPTION ORIGINAL PART DRAWN IN SOLIDWORKS PART NUMBER SIZE
B
DISTANCE
TOLERANCE
0" - .5" ±.005
.5" - 1"
±.010
>1" ±.010
Assembly, Drain, E1/M1
01022053
B

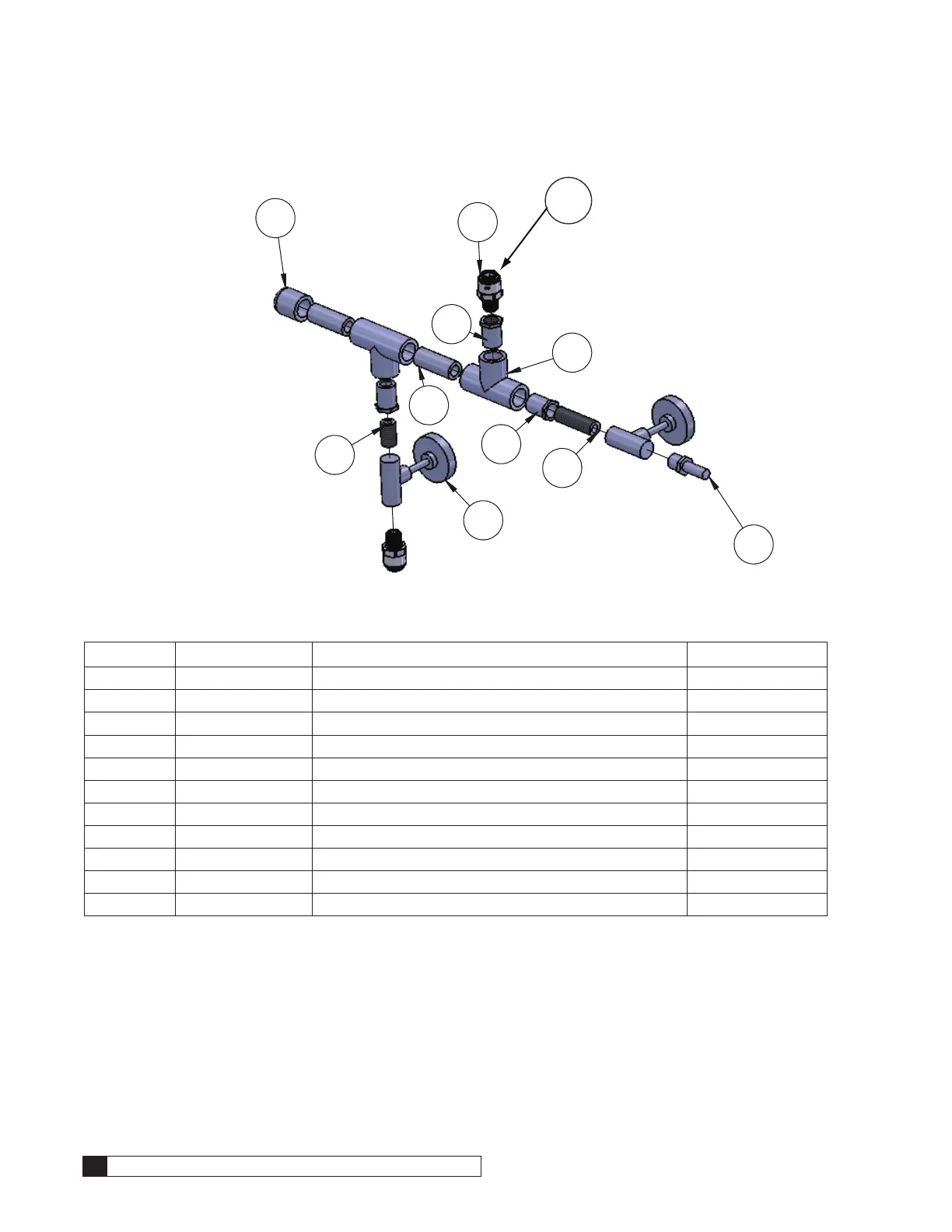

Figure 30. Drain Assembly with Fast Flush Solenoid Valve.
Item Part No. Description Quantity
01022053 Return/Drain Assembly
1 01022013 Needle Valve, 1/4" FNPT, Brass 2
2 — Nipple,1/4xClose,PVC Sch.80,TBE 1
3 — Tee,3/8",Socket,PVC Sch.80 2
4 — Bushing,3/8x1/4,SxT,PVC Sch.80 2
5 — Pipe, 3/8", SCH 80, Length 1.75" 2
6 — Bushing,3/8x1/4,SxS,PVC Sch.80 1
7 — Connector,Male,1/4 NPTx3/8 Tube,PI,PP 2
8 — Nipple,1/4x1-3/4,PVC Sch.80,TOE 1
9 — Plug, 3/8" Cap, Socket 1
10 — Stem Adapter,1/4Tx3/8 Stem,PP 1
