Culligan M1 Series User Manual

M1 RO Parts Diagrams and Lists 53
Cat. No. 01022940
3S/3L Sub-Assembly
Top View
Bottom View
8
B
C
A
Note orientation
of flow
Used Only
When
Mounting
on Floor
Stand
A = to Feed Port
B = to Recirculating Assy
C = to Center Port (Product)
FEED
PRODUCT
7
6
9
2
A
A
C
C
C
3
2
5
4
5
1
1
1
A
1
1
4
4

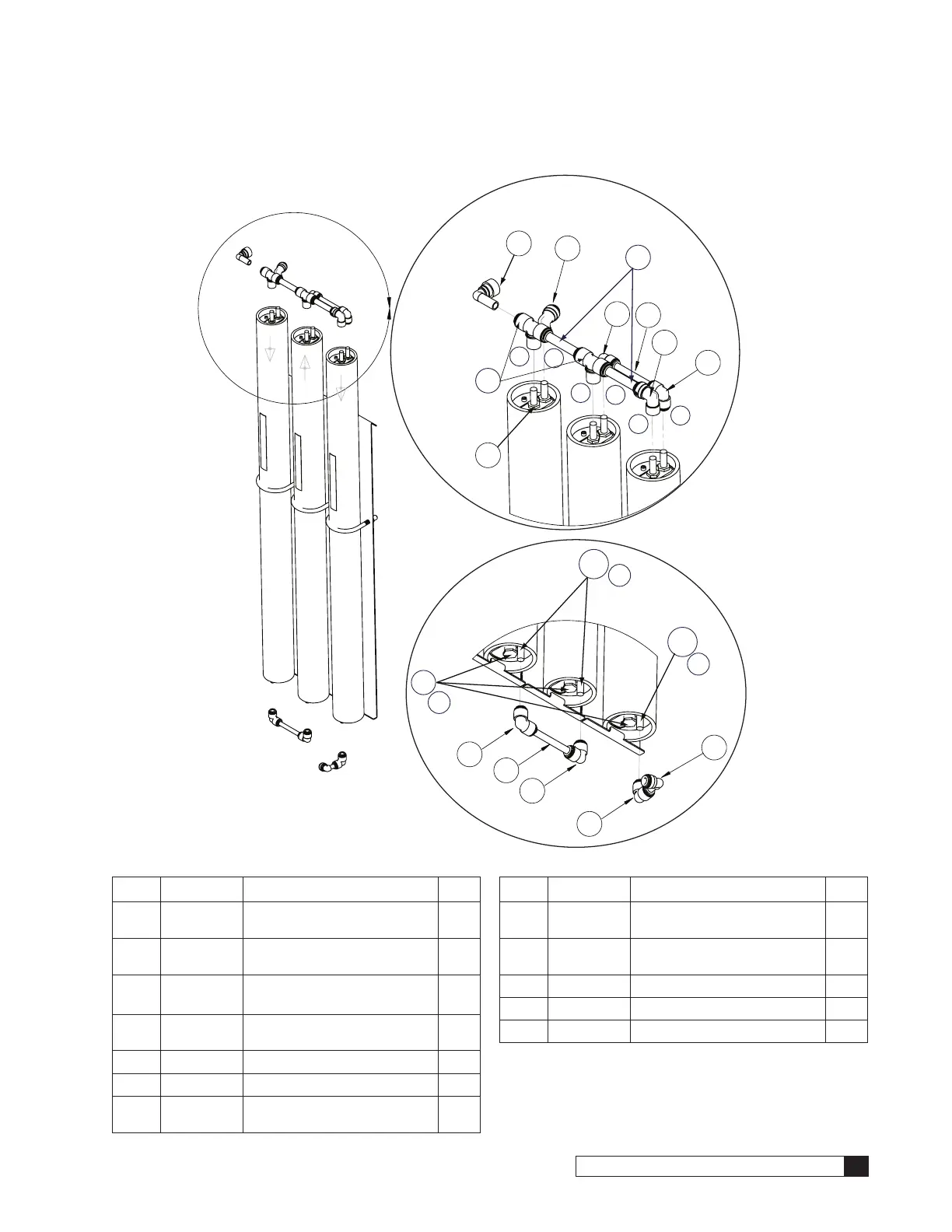

Figure 35. M1-3S/3L sub-assembly.
Item Part No. Description Qty
01023412 Assembly, Membrane Housing,
Single, 2.5"x21"
01023417 Assembly, Membrane Housing,
Single, 2.5"x40"
01023908
Kit, Tube and Fittings, 3S, 3L
(includes items 1–9)
1
— Elbow, Union, 3/8 Tube, PI,
Polypropylene
5 EA
2
— Tube, 3/8", cut length 4.4"
2 EA
3
— Tube, 1/2", Length 4.25"
2 EA
4
— Stem Adapter, 1/4Tx3/8 Stem,
Polypropylene
9 EA
Item Part No. Description Qty
5
— Fitting, Union, Reducing, 1/2 x
3/8, PI, Polypropylene
2 EA
6
— Tee, Union, Reducing, 1/2 Ends,
3/8 Branch, PI, Polypropylene
2 EA
7
— Elbow,1/2 Stem x 1/2T,PI
1 EA
8
— Plug, 1/4" NPT, PVC, Sch 80
3 EA
9
— Elbow, 3/8" stem, 3/8 tube
1 EA
