Culligan M1 Series User Manual

54 Culligan® M1 Series Reverse Osmosis
54 Cat. No. 01022940
4S/4L Sub-Assembly
Bottom View
2
Note
orientation
of flow
A = to Feed Port
B = to Recirculating Assy
C = to Center Port (Product)
Top View
Used Only
When
Mounting
on Floor
Stand
7
FEED
PRODUCT
6
6
6
B
A
C
C
C
C
A
A
5
3
3
3
2
5
4
2
1
A
4
8
C
8
C
1
1
1
1
1

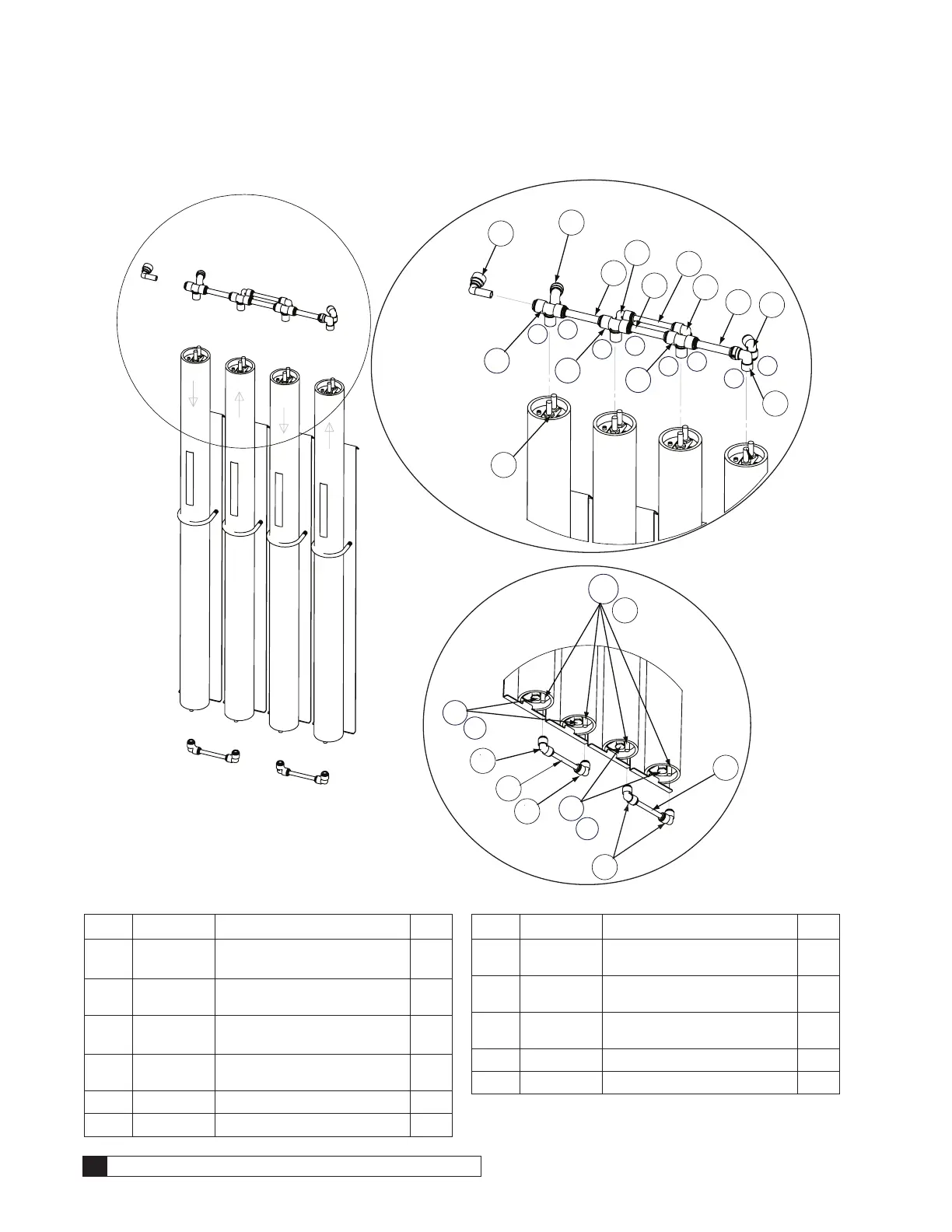

Figure 36. M1-4S/4L sub-assembly.
Item Part No. Description Qty
01023412 Assembly, Membrane Housing,
Single, 2.5”x21”
01023417 Assembly, Membrane Housing,
Single, 2.5"x40"
01023909
Kit, Tube and Fittings, 4S,4L
(in-
cludes items 1–8)
1
— Elbow, Union, 3/8 Tube, PI,
Polypropylene
7 EA
2
— Tube, 3/8", cut length 4.4"
3 EA
3
— Tube, 1/2", Length 4.25"
3 EA
Item Part No. Description Qty
4
— Stem Adapter, 1/4Tx3/8 Stem,
Polypropylene
12
EA
5
— Elbow, Union, Reducing, 1/2 x
3/8, PI, Polypropylene
2 EA
6
— Tee, Union, Reducing, 1/2 Ends,
3/8 Branch, PI, Polypropylene
3 EA
7
— Elbow,1/2 Stem x 1/2T,PI
1 EA
8
— Plug, 1/4” NPT, PVC, Sch 80
4 EA
