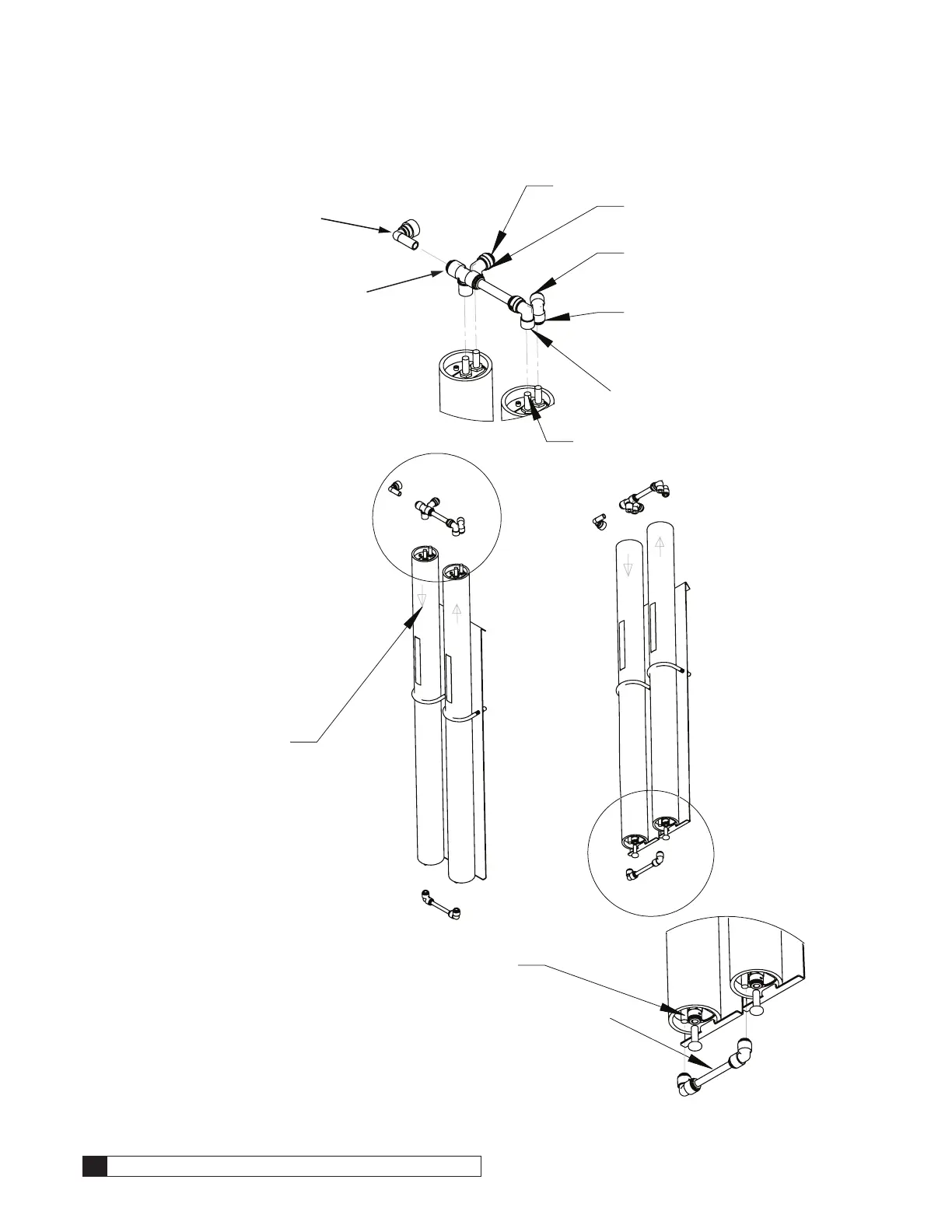

Culligan® M1 Series Reverse Osmosis
62
Cat. No. 01022940
2S/2L Tubing Assembly Instructions, 230V
NOTE DIRECTION OF FLOW
10mm TUBE FOR FEED
10mm TUBE FOR
RECIRCULATION/WASTE
INSERT 10mm ELBOW
OVER 10mm STEM
INSERT 10mm ELBOW
OVER 10mm STEM
INSERT PRODUCT FITTING
ASSEMBLY OVER 10mm STEMS
REMOVE CAPS
ON 10mm STEMS
REMOVE CAPS ON
10mm STEMS
INSERT FEED FITTING
ASSEMBLY OVER 10mm STEMS
(BOTTOM SIDE OF MEMBRANES)
10mm TUBE FOR PRODUCT
USED FOR FLOOR
STAND APPLICATION
Figure 4
3.
RO 2S/2L tubing assembly instructions, 230V.
65
67
