Culligan M1 Series User Manual

M1 RO International 63
Cat. No. 01022940

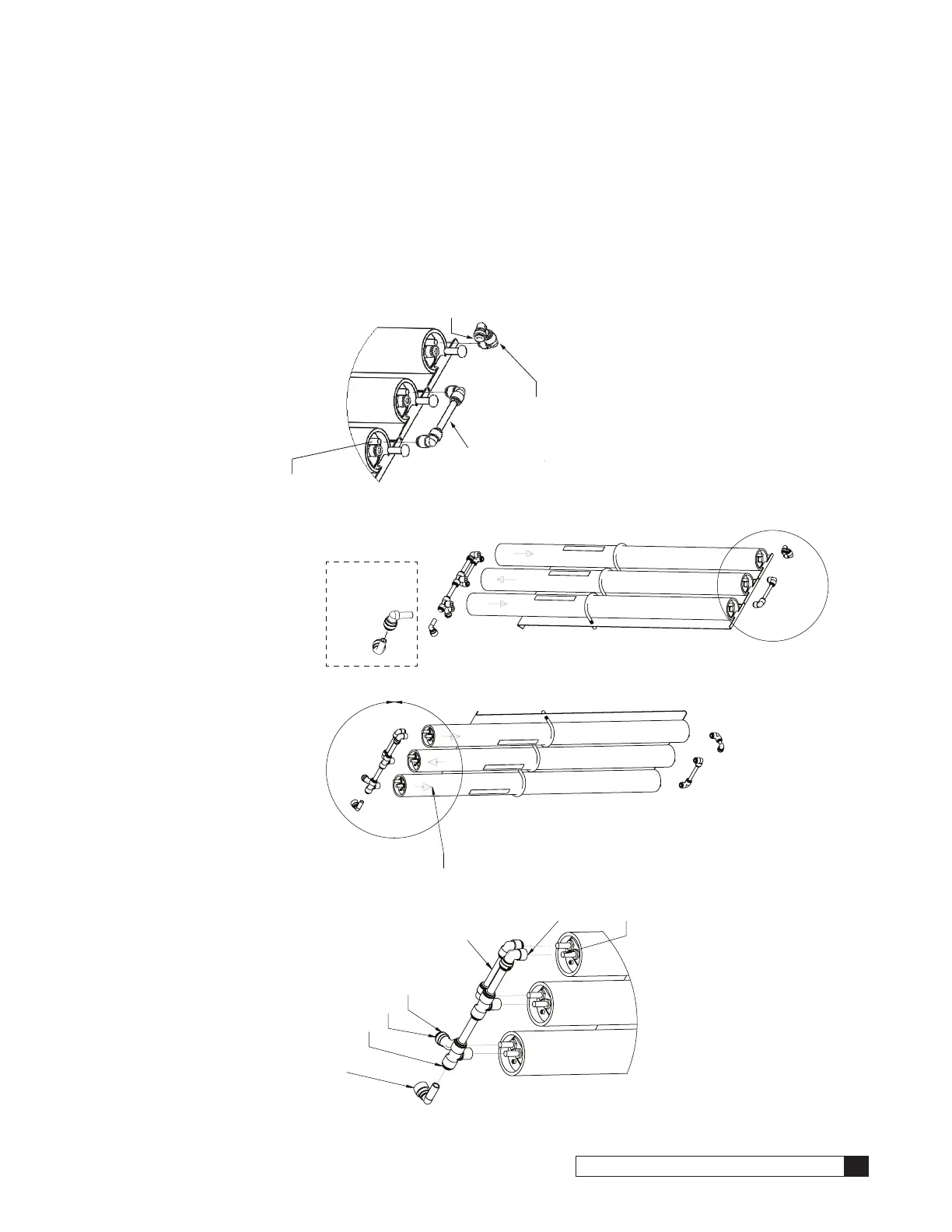

3S/3L Tubing Assembly Instructions, 230V
NOTE DIRECTION OF FLOW
USED FOR FLOOR STAND APPLICATION
INSERT FEED FITTING
ASSEMBLY OVER 10mm STEMS
10mm TUBE FOR FEED
10mm TUBE FOR PRODUCT
INSERT 10mm ELBOW OVER 10mm STEM
INSERT PRODUCT FITTING ASSEMBLY OVER 10mm STEMS REMOVE CAPS ON 10mm STEMS
INSERT FEED FITTING ASSEMBLY OVER 10mm STEMS (BOTTOM SIDE OF MEMBRANES) INSERT 10mm FITTING ASSEMBLY OVER 10mm STEM
10mm TUBE FOR
RECIRCULATION/WAST
E
REMOVE CAPS ON 10mm STEMS
For Recirculating Assembly on Motor Panel
Figure 44. RO 3S/3L tubing assembly instructions, 230V.
