Culligan® M1 Series Reverse Osmosis
64
Cat. No. 01022940

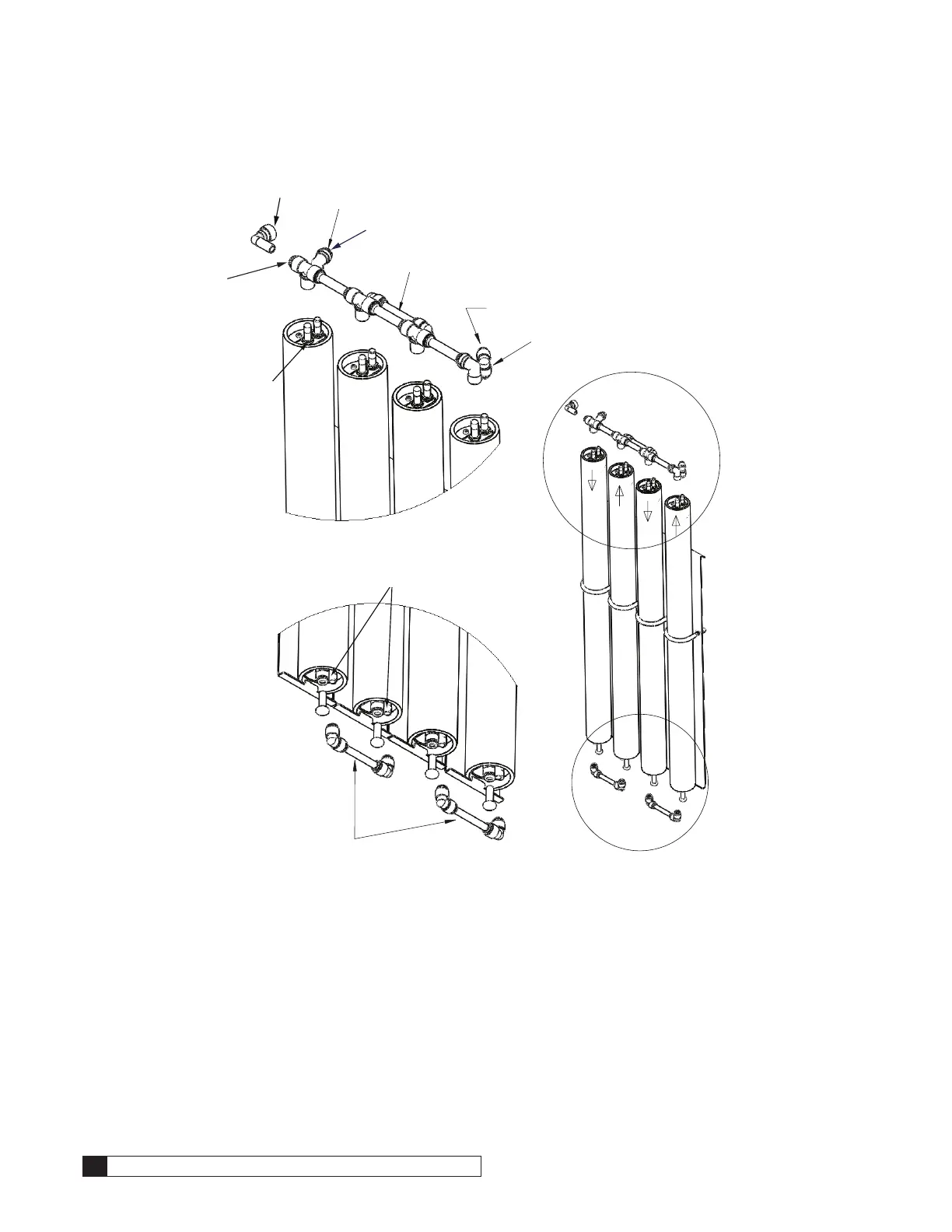

4S/4L Tubing Assembly Instructions, 230V
NOTE DIRECTION OF FLOW
REMOVE CAPS
ON 10mm STEMS
INSERT FEED FITTING
ASSEMBLIES OVER 3/8" STEMS
(BOTTOM SIDE OF MEMBRANES)
USED FOR FLOOR STAND APPLICATION
REMOVE CAPS
ON 10mm STEMS
10mm TUBE FOR FEED
10mm TUBE FOR
RECIRCULATION/WASTE
INSERT 10mm ELBOW
OVER 10mm STEM
INSERT 10mm ELBOW
OVER 10mm STEM
INSERT FEED FITTING
ASSEMBLY OVER 10mm STEMS
10mm TUBE FOR PRODUCT
Figure 4
5.
RO 4S/4L tubing assembly instructions, 230V.
