68 Culligan® M1 Series Reverse Osmosis
68 Cat. No. 01022940
1S Sub-Assembly, 230V
Note Orientation
of Flow
1
1
A
C
3
3
PRODUCT
FEED
Top View
5
1
4
3
2
B
Bottom View
A = to Feed Port
B = to Recirculating Assy
C = to Center Port (Product)

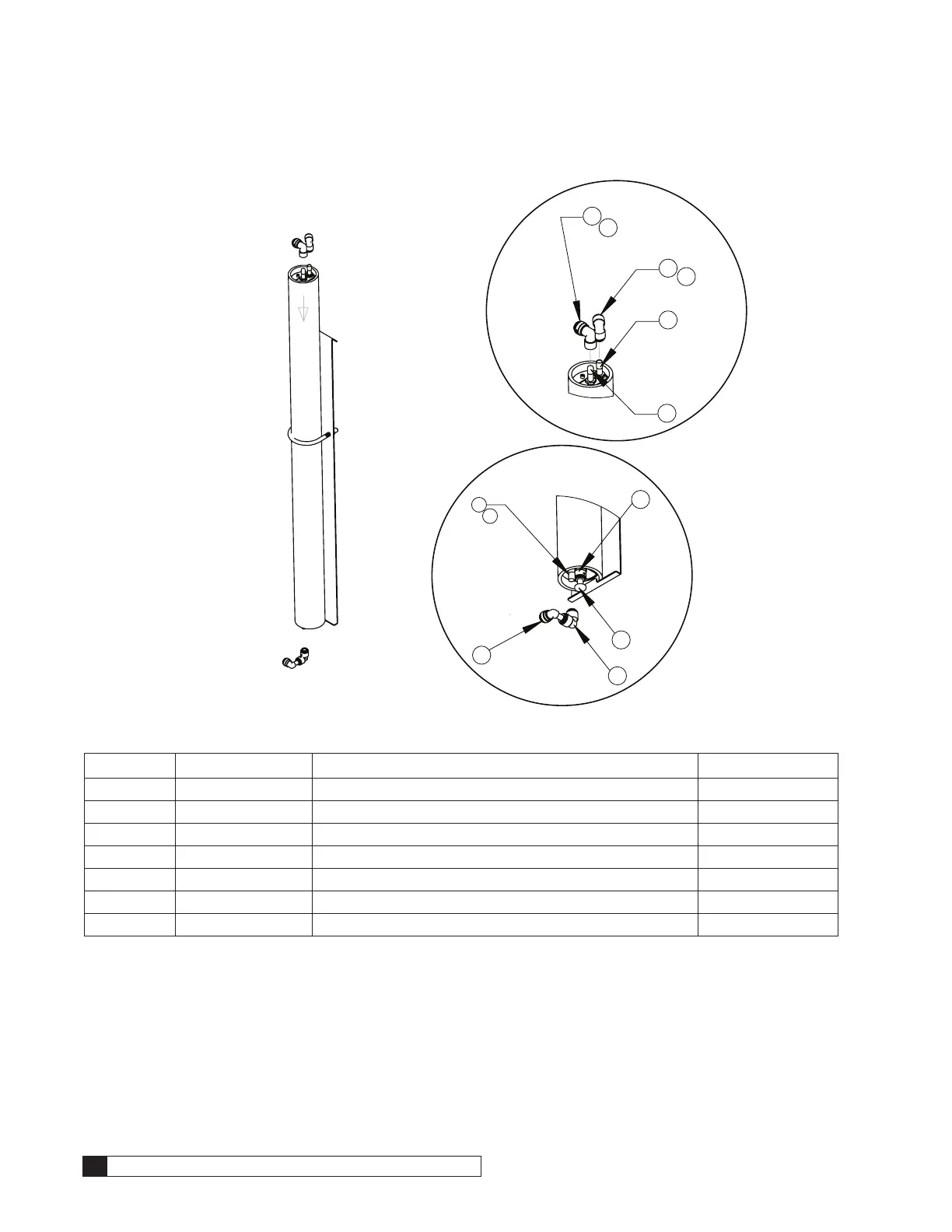

Figure 49. 1S/1L sub-assembly, 230V.
Item Part No. Description Quantity
01025333 Assembly, Membrane Housing, Metric, Single, 2.5"x21" (1S)
01025816 Kit, Tube and Fittings, Metric, 1S (includes items 1–5)
1 — Elbow, Union, 10mm 3 EA
2 — Elbow, Stem, 10mm 1 EA
3 — Stem Adapter, 1/4 BSPP, 10mm 3 EA
4 — Connector, 1/4 BSPP, 10mm 1 EA
5 — Plug, 10mm 1 EA
