M1 RO International 69
Cat. No. 01022940
2S/2L Sub-Assembly, 230V
Bottom View
4
8
C
A
2
1
Note
orientation
of flow
A = to Feed Port
B = to Recirculating Assy
C = to Center Port (Product)
Top View
Used Only When
Mounting on
Floor Stand
3
1
B
A
1
4
7
C
C
6
FEED
PRODUCT
4
A
C
1
5
5

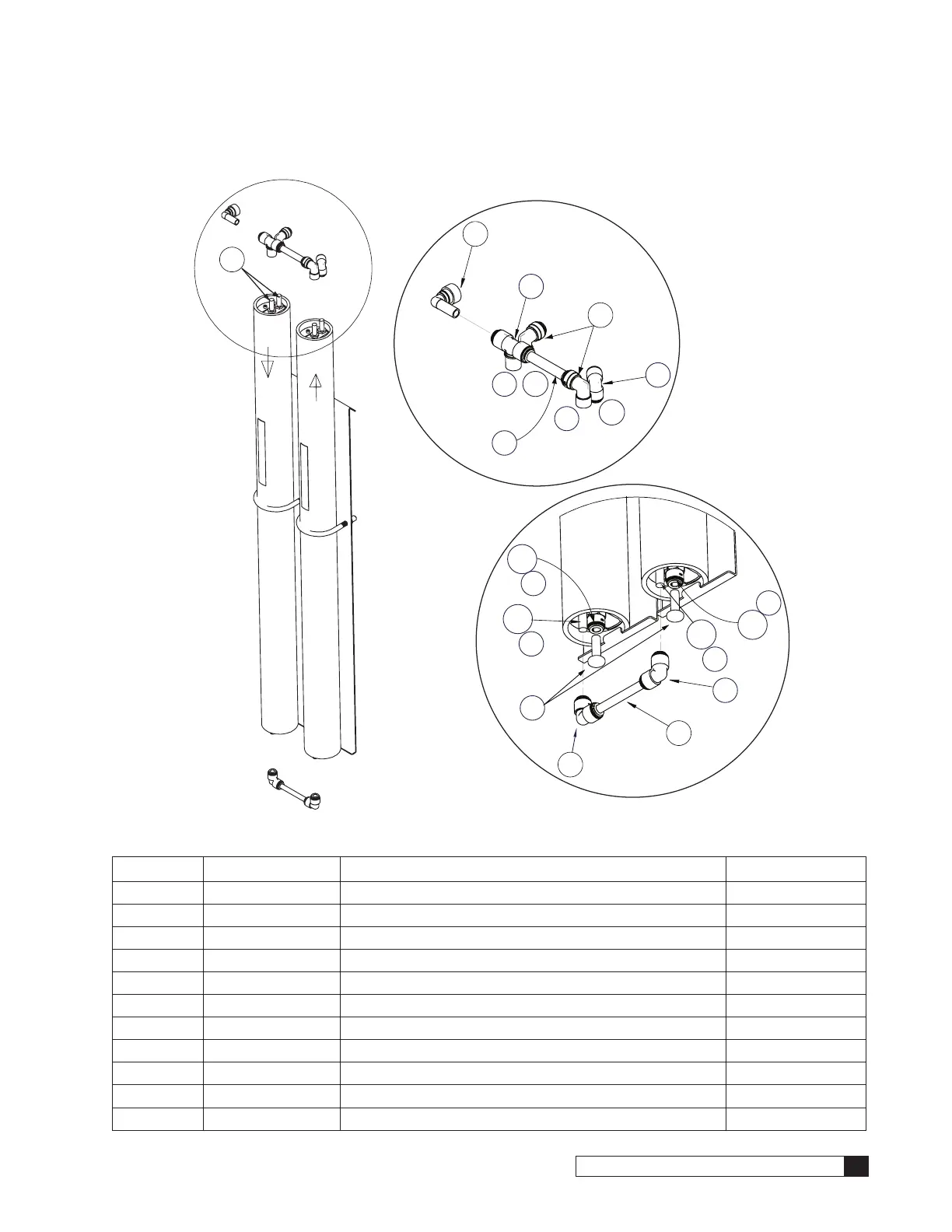

Figure 50. 2S/2L sub-assembly, 230V.
Item Part No. Description Quantity
01025333 Assembly, Membrane Housing, Metric, Single, 2.5"x21" (2S)
01025334 Assembly, Membrane Housing, Metric, Single, 2.5"x40" (2L)
01025330 Kit, Tube and Fittings, Metric, 2S, 2L (includes items 1–8)
1 — Elbow, Union, 10mm 5 EA
2 — Tube, 10mm 1 EA
3 — Tube, 10mm 1 EA
4 — Stem Adapter, 1/4 BSPP, 10mm 6 EA
5 — Connector, 1/4 BSPP, 10mm 2 EA
6 — Tee, Union, 10mm 1 EA
7 — Elbow, Stem, 10mm 1 EA
8 — Plug, 10mm 2 EA
