Culligan MARK 89 - Timer Parts List

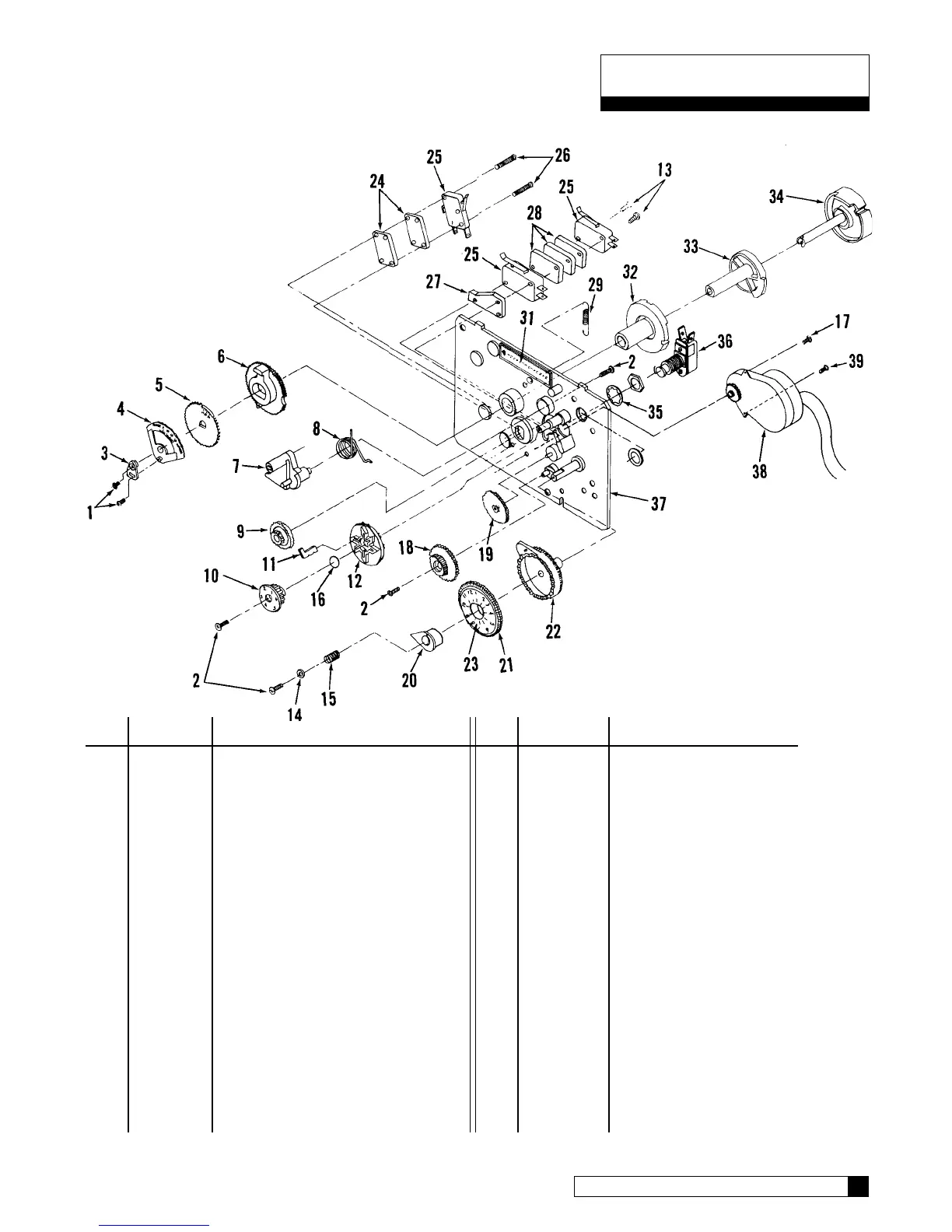

TIMER PARTS LIST 25
00-4429-21 Mark 89/812 Timer Replacement
1 00-4482-57 Screw, #4-24 x 0.625" Phil.
2 00-4031-54 Screw, #4-24 x 0.312" Oval Hd.
3 00-4417-67 Adjustment Lever
4 00-4413-35 Dial, Salt Dosage
5 00-4413-38 Dial, Backwash
6 00-4010-24 Cam, Notched
7 00-4045-02 Lever, Manual Regeneration
8 00-4409-32 Spring
9 00-4413-32 Gear, Idler
10 00-4409-47 Pin, Retainer
11 00-4409-28 Pin
12 00-4409-29 Wheel, Interval
13 00-4477-96 Screw, #4-40 x 0.750" Rd. Hd.
† 00-4428-85 Screw, #4-40 x 1.625" Lg. Slot
14 00-4406-30 Washer
15 00-4031-39 Spring
16 00-4409-35 O-ring
17 00-4414-08 Screw, #4-24 x 0.250" Pan Hd.
18 00-3354-29 Gear, Gray
19 00-4409-43 Gear, Black
Item Part No.
Description
20 00-4409-40 Pointer, Time of day
21 01-0013-85 Dial, Time of day
22 01-0013-84 Wheel, Time of Regeneration
23 01-0013-86 Decal
24 00-4409-30 Spacer
25 00-4409-31 Switch, Miniature
26 00-4475-72 Screw, #4-24 x 0.875" Phil
27 00-4421-48 Spacer
†28 00-4480-04 Spacer
29 00-4412-63 Spring
31 00-4442-99 Decal
32 00-4010-23 Cam, Refill, Backwash
33 00-4413-40 Cam, Backwash
34 01-0017-58 Cam, Fast Rinse
†35 00-3183-32 Washer
‡†36 00-4416-77 Switch, Push Button
37 00-4459-38 Plate with Inserts
‡38 00-4409-34 Motor, Timer
39 00-4414-10 Screw, #4-40 x 0.250" Pan Hd.
* 00-3300-00 Kit, Frequency Wheel, 6-Day
* 00-3300-01 Kit, Frequency Wheel, 7-Day
Item Part No. Description
† Used only for Aqua-Sensor
®
‡ Recommended Spare Parts
* Not Illustrated
Timer & Parts List
