Diesel Engine Complete Engine
49

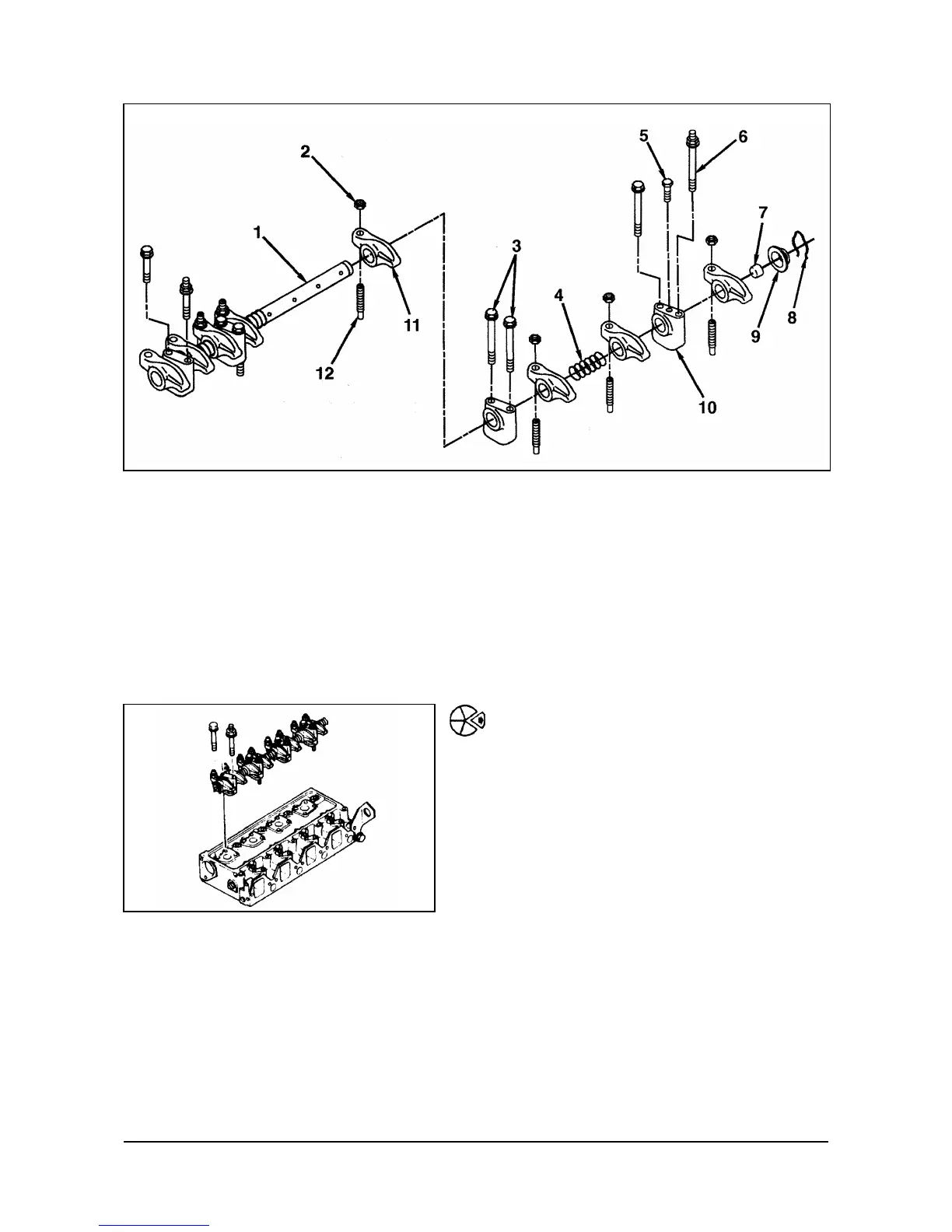

Rocker Arm Assembly
1. Rocker Shaft
2. Adjusting Screw Lock Nut
3. Pedestal Mounting Capscrews
4. Separating Spring
5. Rocker Shaft Indexing Screw
6. Pedestal Mounting Stud
7. Cup Plug
8. Snap Ring
9. Thrust Washer (if equipped)
10. Rocker Lever Pedestal
11. Rocker Lever
12. Adjusting Screw.
Rocker Arm Assembly
Remove the mounting capscrews and the rocker arm
assembly.
NOTE: When removing the rocker arm, loosen the
locknut, and turn the adjustment screw
counterclockwise 2 to 3 turns.
00900251
00900169
