Diesel Engine Complete Engine
56

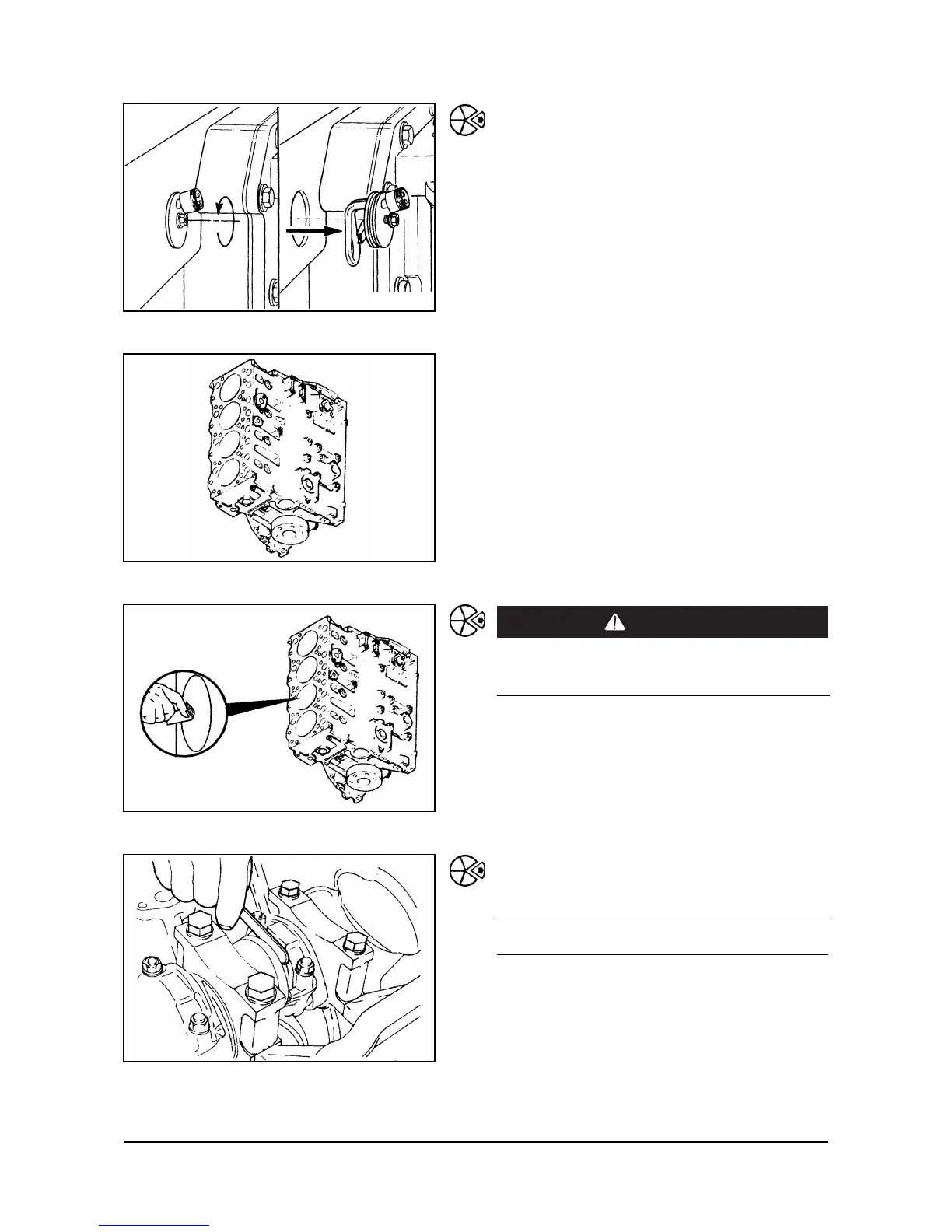

Loosen the block heater retaining nut.
Remove the block heater from the block.
Piston, Connecting Rod Assembly
Turn the cylinder block on its side with cylinders
positioned horizontally.
CAU
TIO
N
Be careful not to damage the inside of the
cylinder.
Remove the carbon at the top of the cylinder using
fine sandpaper.
Measure the side clearance of the connecting rod
with a dial gauge before removing the piston and
connecting rod assembly.
Side Clearance
mm in
0.20 MIN 0.0079
0.40 MAX 0.016
cs900mb
00900190
00900191
00900192
