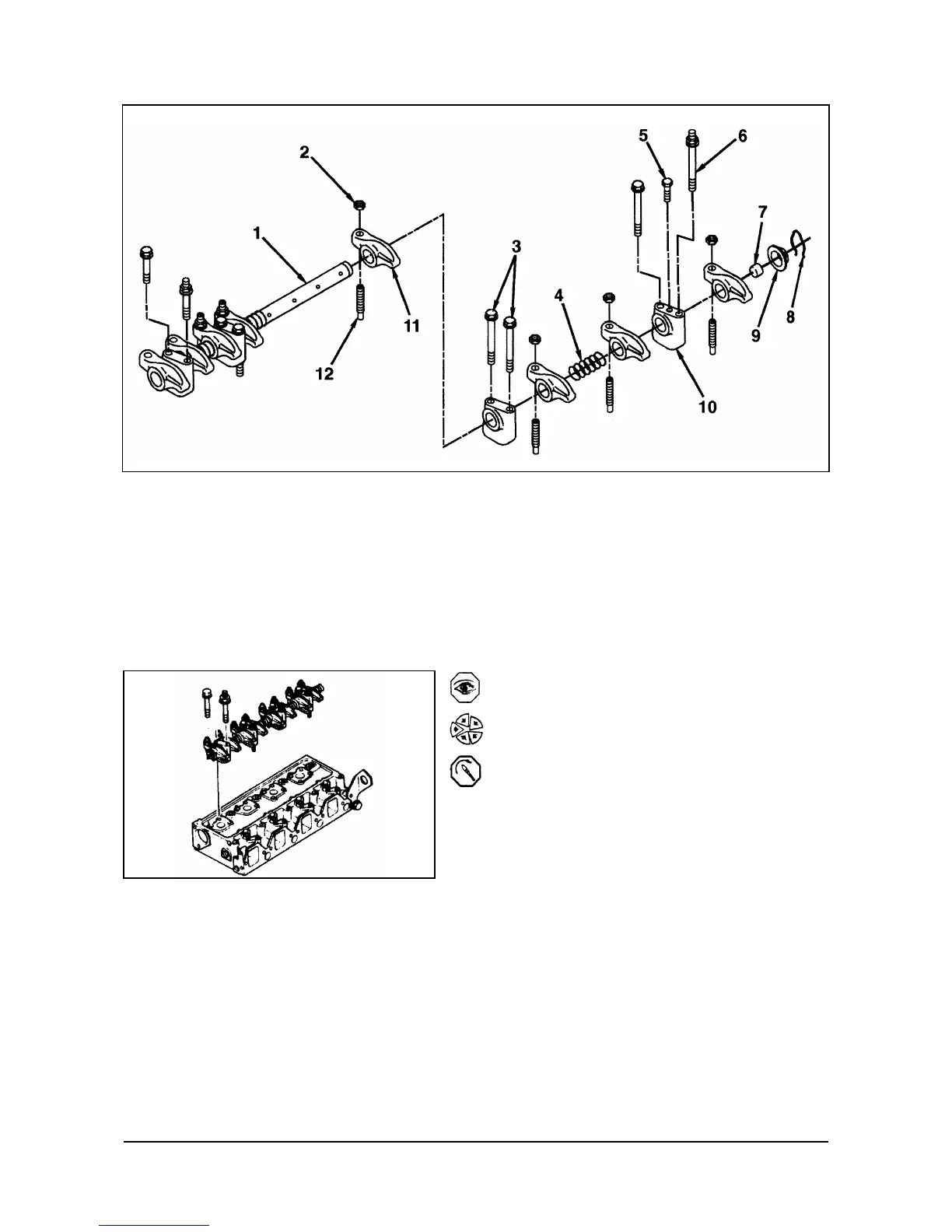

Rocker Arm Assembly
1. Rocker Shaft
2. Adjusting Screw Lock Nut
3. Pedestal Mounting Capscrews
4. Separating Spring
5. Rocker Shaft Indexing Screw
6. Pedestal Mounting Stud
7. Cup Plug
8. Snap Ring
9. Thrust Washer (only used on some engines)
10. Rocker Lever Pedestal
11. Rocker Lever
12. Adjusting Screw.
Rocker Arm Assembly
NOTE: Check that the ball of the adjustment screw
is fitted properly into the socket of the
pushrod before tightening the capscrews. If
the valve spring tension pushes against the
rocker arm, loosen the locknut, and turn the
adjustment screw back to prevent strain on
the pushrod.
Install the rocker arm assembly and eight capscrews.
Tighten the capscrews.
Torque Value: 25 N•m [18 ft-lb]
00900251
00900169
