Diesel Engine Complete Engine
83

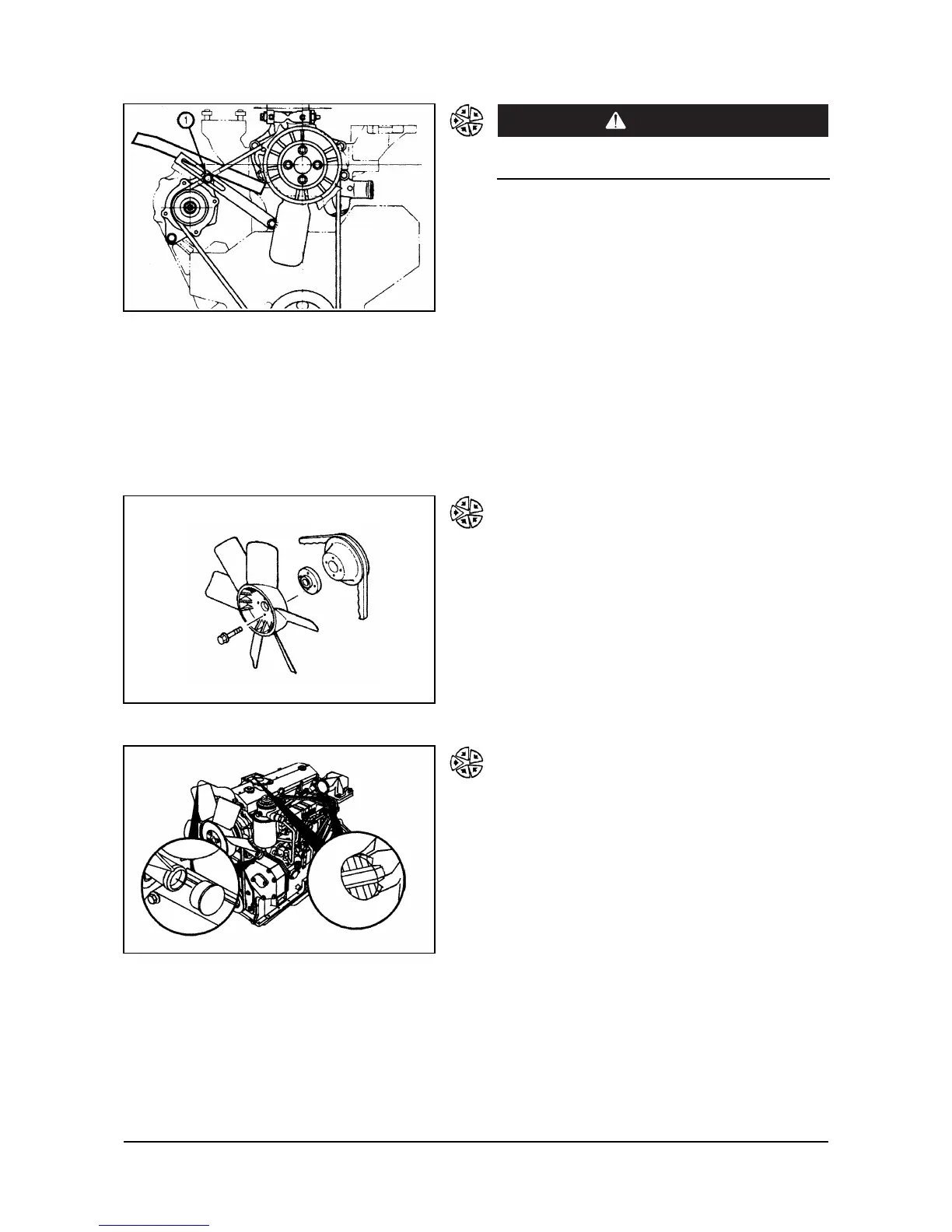

Be careful not to injure your fingers or damage
the alternator when adjusting the belt tension.
Insert a bar or pipe between the alternator and the
cylinder block. Raise the alternator to adjust the fan
tension.
NOTE: The belt must deflect 7 mm to 10 mm [0.28
in to 0.39 in] when pushed with finger-
pressure of 6 kg [13 lb] at a point midway
between the fan pulley and the crankshaft
pulley.
Tighten the adjustment capscrew (1).
Torque Value:
Mounting
Capscrew
31 N•m [23 ft-lb]
Adjustment
Capscrew
31 N•m [23 ft-lb]
Fan
Install the spacer, fan, four capscrews.
Tighten the capscrews.
Torque Value: 31 N•m [23 ft-lb]
Remove the covers on all the engine openings that
were installed to prevent dirt and debris from entering
the engine.
W
ARN
I
N
G
00900257
00900157
00900209
