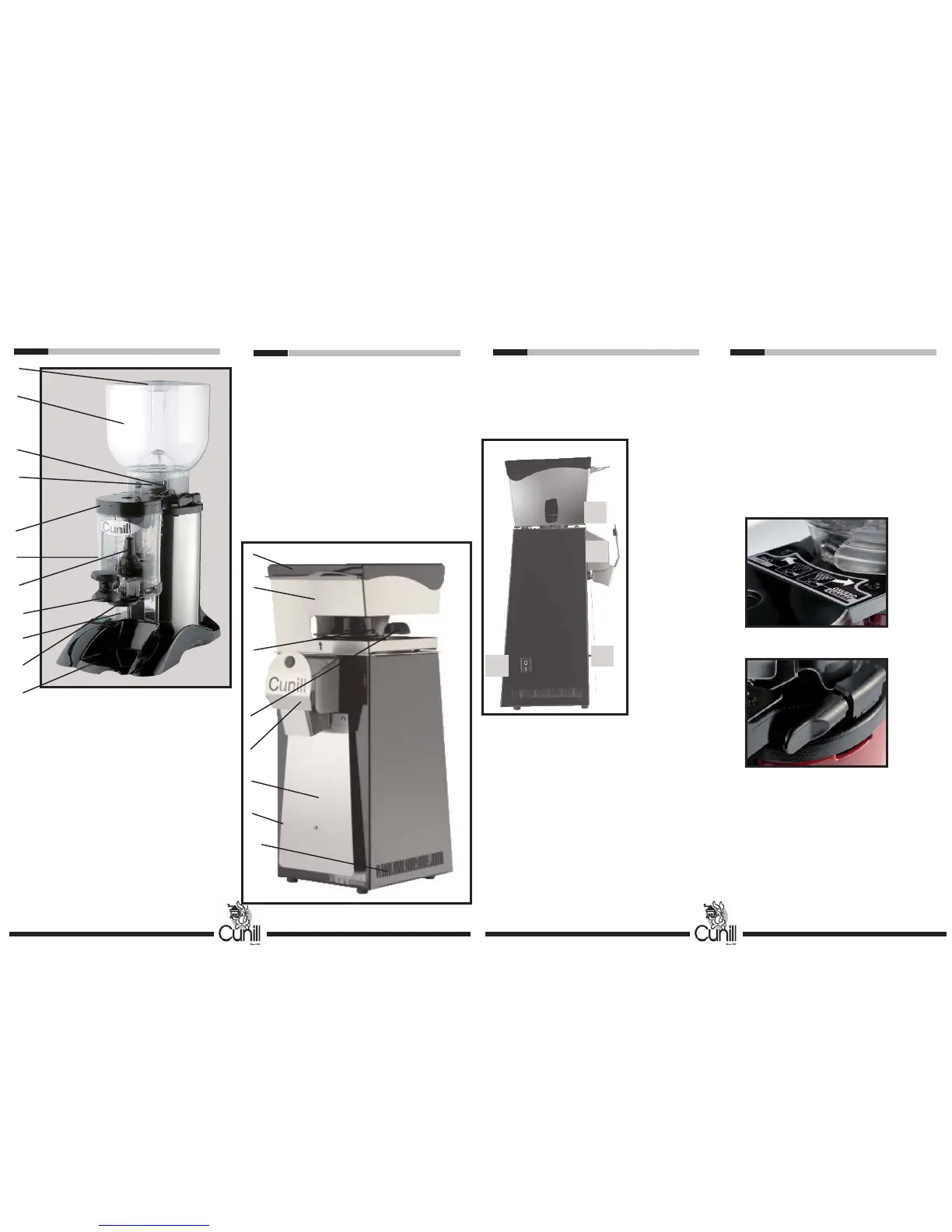

1.-Coffee bean hopper lid.
2.-coffee bean hopper
3.-Hopper-grinder adjustment platen
lockscrews.
4.-Grinder Adjustment platen
5.-Trap of (open/close) bean hopper.
6.-Grinder adjustment trigger
7.-Ground coffee feeder lid.
8.-Ground coffee feeder.
9.-Ground coffee adjustment screw.
10.-ground coffee press.
11.-On / Off switch.
12.-Direct intake (seal-saver).
13.-Coffee collection Tray.
14.-Feeder Handle.
08
Identification (Classic) of the
Components.
1.-Hopper lid.
2.-Hopper.
3.-Fixing screws (hopper + adjust. disk).
4.-Split pin (opening/closing) of the hopper.
5.-Adjustment pawl.
6.-Selection-lever of adjustment.
7.-Holding lever for the bags
8.-Vibrating inox plate.
9.-On / Off switch.
10.-Air exits.
08
Identification (Especial) of the
Components
The models Michigan and Hawai-2 are the
only ones of our product range which does
not dispense ground coffee in measures, but
rather in “bulk”, therefore, its specific featu-
res only affect coffee dispensing.
a) In the mo-
del Hawai-2
is possible to
regulate the
type of ground
coffee through
the selection-
lever of ad-
justment (6)
putting on the
type of ground
coffee desired,
through the
frontal upper
arrow (coarse,
medium, fine,
espresso and
Turkish).
b) Place the
bag where you
want to sto-
re the ground
coffee under the holding-lever (7), the bag
will be supported by the vibratory (8) plate
through the one is possible a perfect settling
of the ground coffee in the bag.
C) Turn on and of the grinder using the On/
Off switch (9) .
16
Operating the Michigan and the
Hawai-2 Models
You can adjust the degree of grinding (more fi
-
nely/coarsely/ground) by adjusting the grinde
r
by means of the grinder adjustment platen (4
)
as follows:
To obtain a more finely ground coffee:
a) Unplug the grinder.
b) Keep the adjust-ment trigger pressed to fre
e
the adjustment platen (4) and turn the platen T
O
THE RIGHT as indicated by the “F” arrow o
n
the platen.
C) Release the adjustment trigger (6) and mak
e
sure the adjustment platen (4) cannot turn.
To obtain MORE COARSELY GROUND CO
-
FFEE:
a) Unplug the grinde.
b) Keep the adjustment trigger (6) pressed to fre
e
the adjustment platen (4) and turn the platen T
O
THE LEFT as indicated by the “G” arrow on th
e
platen.
c) Release the adjustment trigger (6) and mak
e
sure the adjustment platen (4) cannot turn.
ATENTION: If the adjustment platen (4) is com
-
pletely removed from its emplacement, the grin
-
ding wheels are fully exposed, with the conse
-
quent hazard if the coffee grinder is turned on
.
Never operate the coffee grinder without all it
s
moving parts correctly in place.
17
