DKC600 (U) & DKC600 (U)Y SLIDING GATE OPERATOR USER’S MANUAL

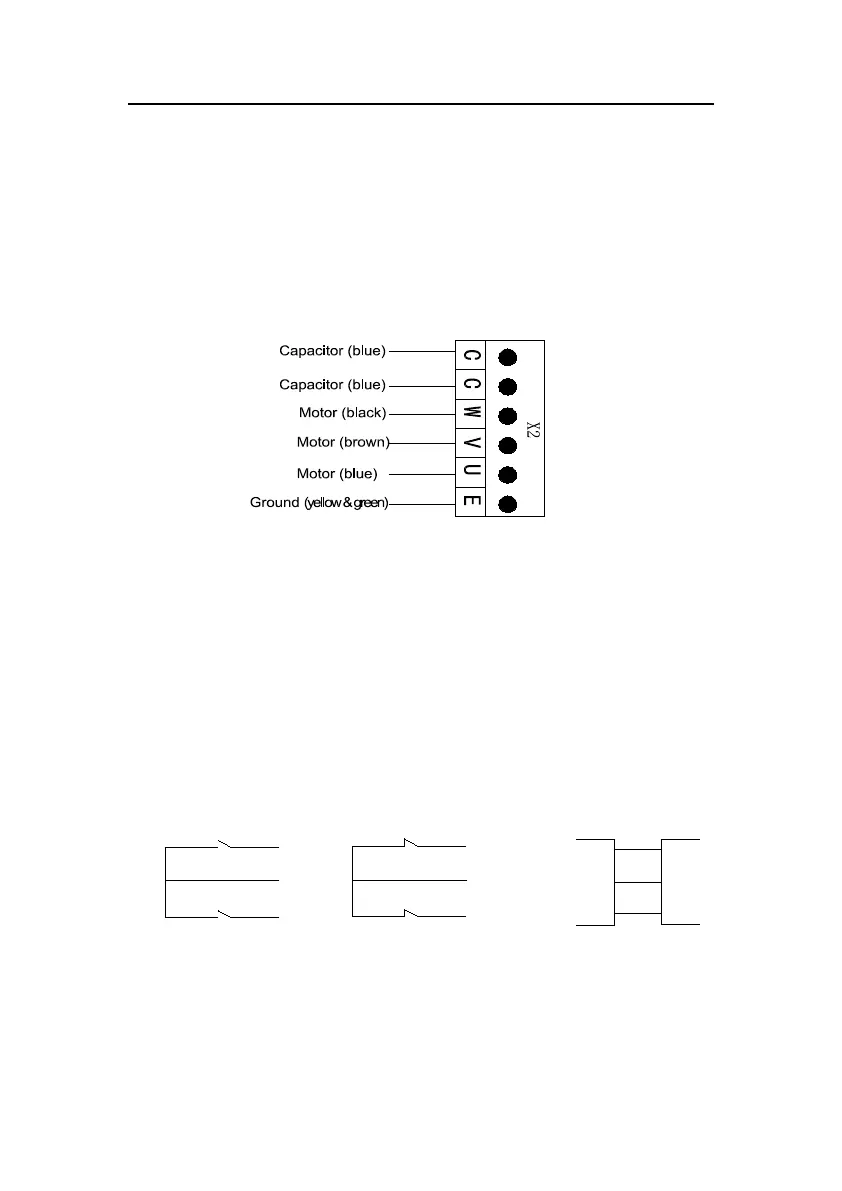

Wiring notes for control board
1. Fuse:5A, φ5x20(220V), 10A φ5x20(110V)
2. Power supply: E(Ground), N(Neutral ), L(Live)
3. Motor: U (Com), V (Positive direction), W (Opposite direction), E (Earth)
4. Capacitor
5. Alarm Lamp (not supply): AC220V, AC110V
6. Force Adjustor (VR2): Clockwise +, Counterclockwise –
7. Force Adjustor (VR1): Clockwise +, Counterclockwise –
8. DIP-switch
9. Learn button: LEARN
10. Indicator light (learn): LED2
11. Receiver
12. MCU: stm8s103
13. Limit switch(N.C.) : OP(open),GND(com), CL(close),
Snip short wire ‘S2’ , Limit switch : N.O.
OP
GND
CL
Wiring
Open
Com
Close
N.C. (for N.C. limit switch)
Open
Com
Close
Control
board
Open limit
Com
Close limit
N.O. (for N.O. limit switch)
Limit switch mode is adjustable by DIP switch.
