DKC600 (U) & DKC600 (U)Y SLIDING GATE OPERATOR USER’S MANUAL

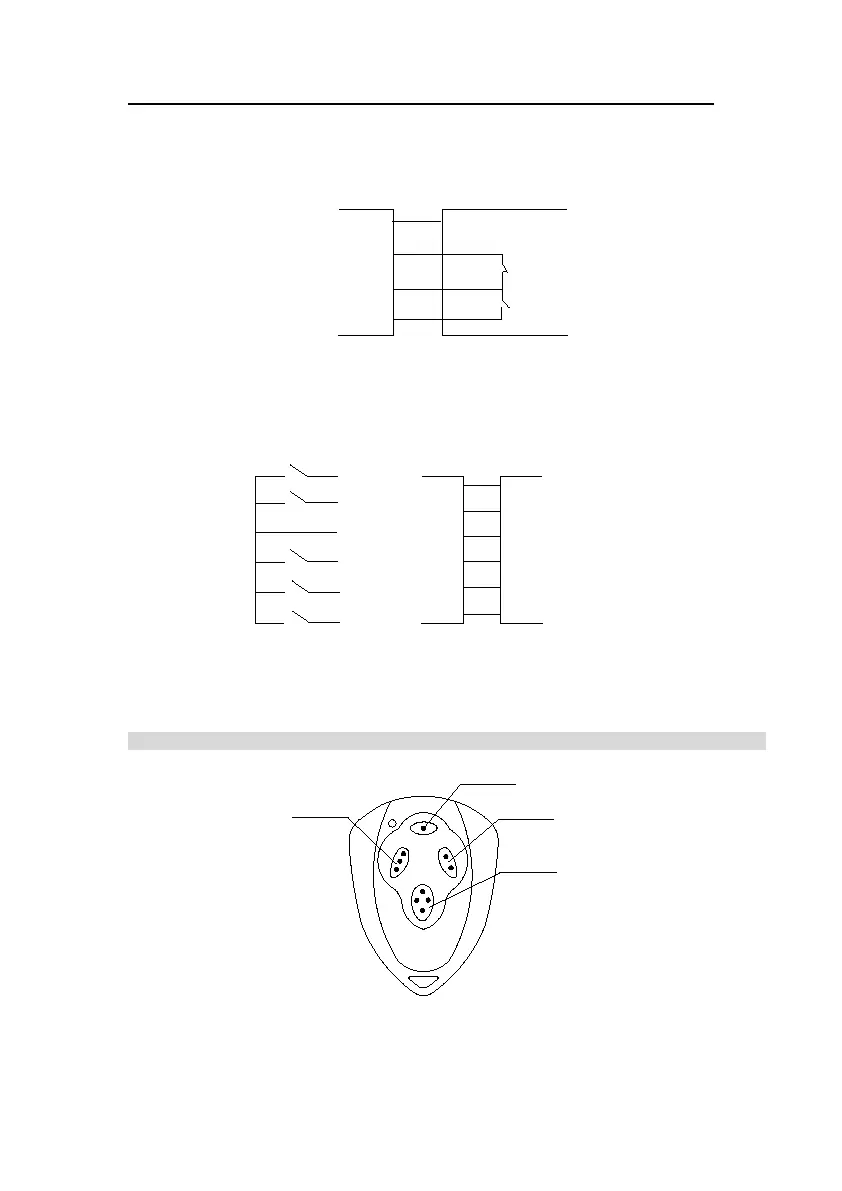

14. Output power supply: 12V(DC 12V), GND(COM), DET(Loop detector), IR( Infrared
photocell)
12V
IR
GND
DET
Safety device
Control
board
12V
Infrared
Com
Loop detector
15. Power indicator light: LED1
16. External button switch: P（Pedestrian mode）、OSC（Keypad）、GND（Com）、G (Close)、
T（Stop）、K（Open）
P
OSC
GND
G
T
K
P
OSC
GND
G
T
K
Pedestrian
Keypad
Com
Close button
Stop button
Open button
Schematic diagram
Wiring diagram
Control board
External button switch
17. Transformer： 220V/10V 5W, 110V//10V 5W
9.Control
Fig.15
Button 3
Button 4
Button 2
Button 1
