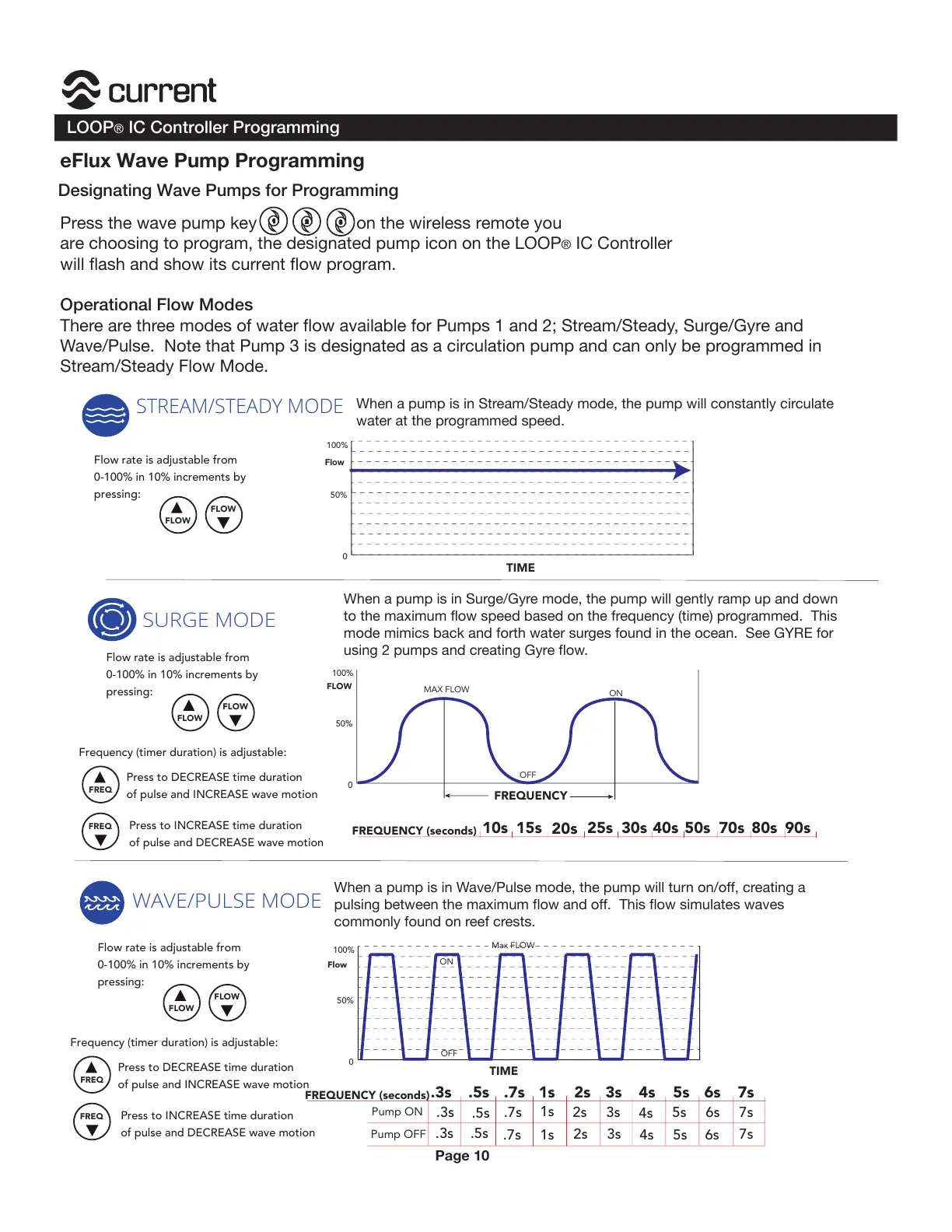

LOOP® IC Controller Programming
eFlux Wave Pump Programming
Press the wave pump key on the wireless remote you
are choosing to program, the designated pump icon on the LOOP
® IC Controller
will flash and show its current flow program.
Operational Flow Modes
There are three modes of water flow available for Pumps 1 and 2; Stream/Steady, Surge/Gyre and
Wave/Pulse. Note that Pump 3 is designated as a circulation pump and can only be programmed in
Stream/Steady Flow Mode.
0
1
2
TIME
0
100%
50%
Flow
Flow rate is adjustable from
0-100% in 10% increments by
pressing:
FLOW
FLOW
STREAM/STEADY MODE
When a pump is in Stream/Steady mode, the pump will constantly circulate
water at the programmed speed.
SURGE MODE
FREQ
FREQ
0
100%
50%
FLOW
Press to DECREASE time duration
of pulse and INCREASE wave motion
Press to INCREASE time duration
of pulse and DECREASE wave motion
FREQUENCY
10s
FREQUENCY (seconds)
15s
20s
25s 30s 40s 50s 70s 80s 90s
MAX FLOW
Frequency (timer duration) is adjustable:
WAVE/PULSE MODE
0
100%
50%
Flow
Pump OFF
Pump ON
.3s .5s
1s 2s 3s 4s 5s 6s 7s
.3s .5s
.7s
.3s
.5s
.7s
1s
1s
2s
2s
3s
4s
5s 6s 7s
3s
4s 5s 6s
7s
.7s
TIME
ON
FREQUENCY (seconds)
OFF
Max FLOW
ON
OFF
When a pump is in Surge/Gyre mode, the pump will gently ramp up and down
to the maximum flow speed based on the frequency (time) programmed. This
mode mimics back and forth water surges found in the ocean. See GYRE for
using 2 pumps and creating Gyre flow.
When a pump is in Wave/Pulse mode, the pump will turn on/off, creating a
pulsing between the maximum flow and off. This flow simulates waves
commonly found on reef crests.
Flow rate is adjustable from
0-100% in 10% increments by
pressing:
FLOW
FLOW
FREQ
FREQ
Press to DECREASE time duration
of pulse and INCREASE wave motion
Press to INCREASE time duration
of pulse and DECREASE wave motion
Frequency (timer duration) is adjustable:
Flow rate is adjustable from
0-100% in 10% increments by
pressing:
FLOW
FLOW
Designating Wave Pumps for Programming
Page 10
