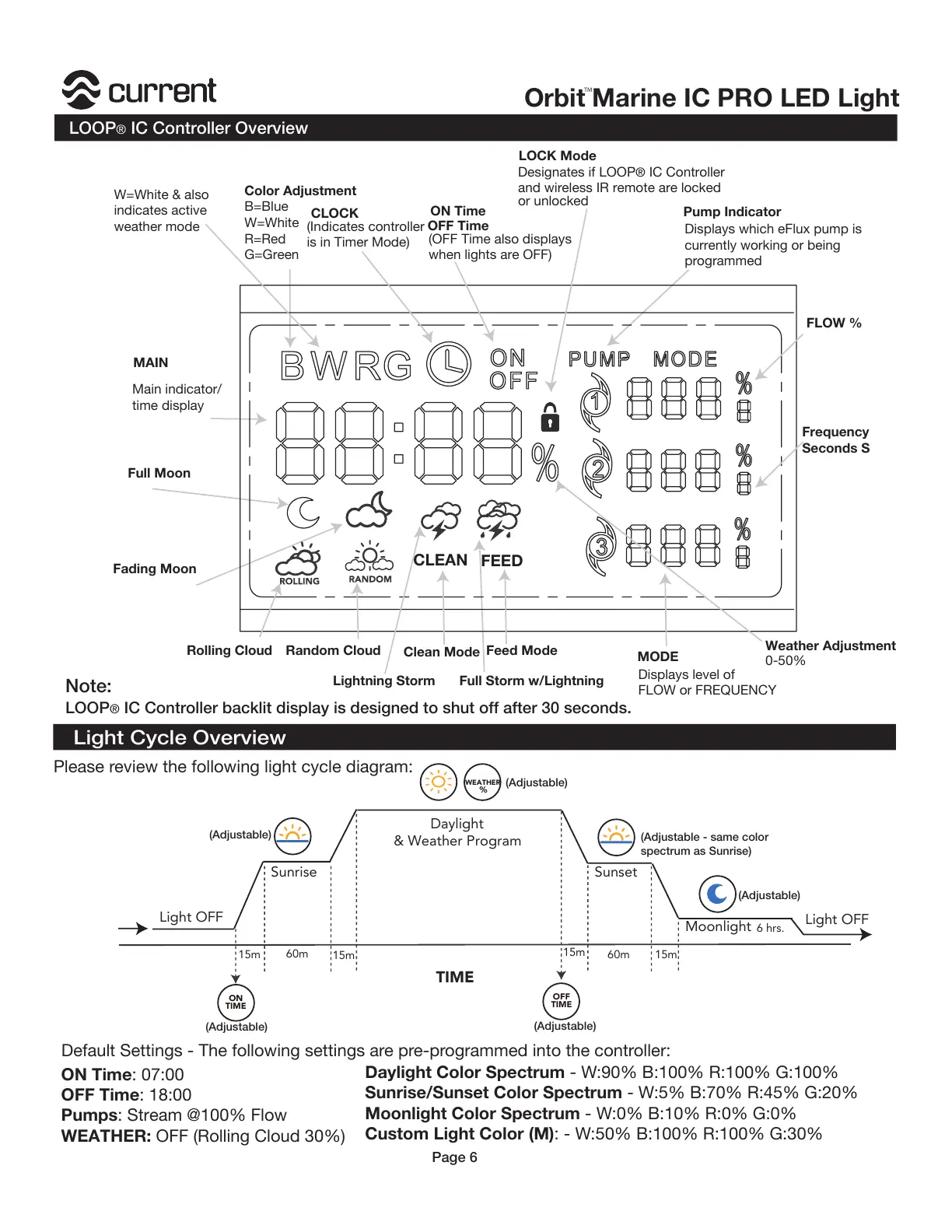

LOOP® IC Controller Overview
MODE
Pump Indicator
LOCK Mode
CLEAN
Color Adjustment
B=Blue
W=White
R=Red
G=Green
Displays which eFlux pump is
currently working or being
programmed
Displays level of
FLOW or FREQUENC
Y
Designates if LOOP
® IC Controller
and wireless IR remote are locked
or unlocked
MAIN
Main indicator/
time display
FEED
CLOCK
ON Time
OFF Time
Full Moon
Fading Moon
Rolling Cloud Random Cloud
Full Storm w/Lightning
Lightning Storm
Clean Mode
Feed Mode
Note:
LOOP® IC Controller backlit display is designed to shut off after 30 seconds.
W=White & also
indicates active
weather mode
FLOW %
Frequency
Seconds S
Weather Adjustment
0-50%
(OFF Time also displays
when lights are OFF)
(Indicates controller
is in Timer Mode)
Light Cycle Overview
Light OFF
TIME
15m
15m
15m
15m60m
60m
Moonlight
Sunrise
Daylight
& Weather Program
Sunset
ON
TIME
OFF
TIME
6 hrs.
Please review the following light cycle diagram:
(Adjustable)
(Adjustable)
(Adjustable)
(Adjustable)
(Adjustable)
(Adjustable - same color
spectrum as Sunrise)
ON Time: 07:00
OFF Time: 18:00
Pumps: Stream @100% Flow
WEATHER: OFF (Rolling Cloud 30%)
Daylight Color Spectrum - W:90% B:100% R:100% G:100%
Sunrise/Sunset Color Spectrum - W:5% B:70% R:45% G:20%
Moonlight Color Spectrum - W:0% B:10% R:0% G:0%
Custom Light Color (M): - W:50% B:100% R:100% G:30%
Default Settings - The following settings are pre-programmed into the controller:
WEATHER
%
Light OFF
