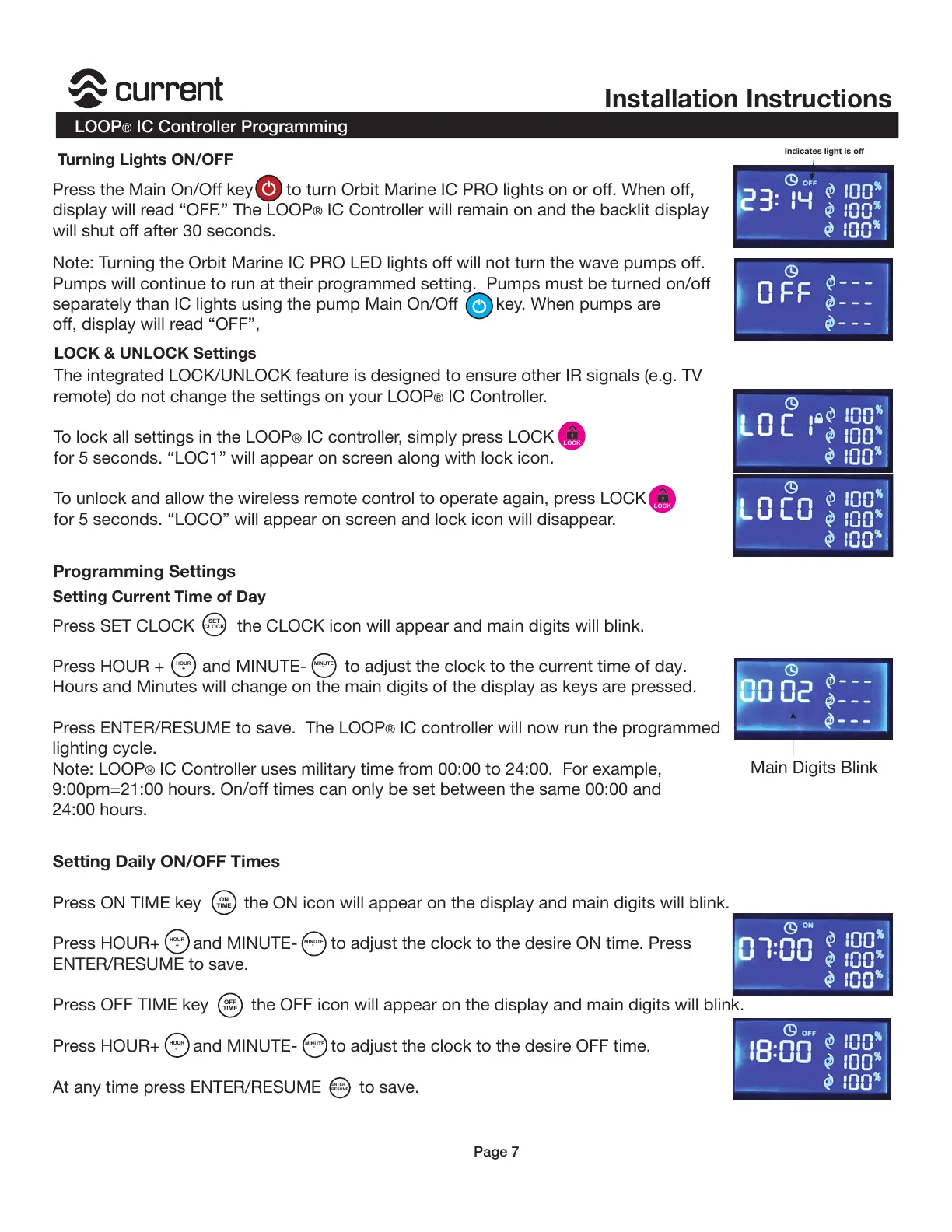

LOOP® IC Controller Programming
Turning Lights ON/OFF
LOCK
LOCK
Note: Turning the Orbit Marine IC PRO LED lights off will not turn the wave pumps off.
Pumps will continue to run at their programmed setting. Pumps must be turned on/off
separately than IC lights using the pump Main On/Off key. When pumps are
off, display will read “OFF”,
Press the Main On/Off key to turn Orbit Marine IC PRO lights on or off. When off,
display will read “OFF.” The LOOP® IC Controller will remain on and the backlit display
will shut off after 30 seconds.
The integrated LOCK/UNLOCK feature is designed to ensure other IR signals (e.g. TV
remote) do not change the settings on your LOOP
® IC Controller.
To lock all settings in the LOOP
® IC controller, simply press LOCK
for 5 seconds. “LOC1” will appear on screen along with lock icon.
To unlock and allow the wireless remote control to operate again, press LOCK
for 5 seconds. “LOCO” will appear on screen and lock icon will disappear.
LOCK & UNLOCK Settings
Setting Current Time of Day
Programming Settings
Press SET CLOCK the CLOCK icon will appear and main digits will blink.
Press HOUR + and MINUTE- to adjust the clock to the current time of day.
Hours and Minutes will change on the main digits of the display as keys are pressed.
Press ENTER/RESUME to save. The LOOP
® IC controller will now run the programmed
lighting cycle.
Note: LOOP
® IC Controller uses military time from 00:00 to 24:00. For example,
9:00pm=21:00 hours. On/off times can only be set between the same 00:00 and
24:00 hours.
SET
CLOCK
HOUR
MINUTE
+
-
Setting Daily ON/OFF Times
Press ON TIME key the ON icon will appear on the display and main digits will blink.
Press HOUR+ and MINUTE- to adjust the clock to the desire ON time. Press
ENTER/RESUME to save.
Press OFF TIME key the OFF icon will appear on the display and main digits will blink.
Press HOUR+ and MINUTE- to adjust the clock to the desire OFF time.
At any time press ENTER/RESUME to save.
HOUR
MINUTE
-
-
OFF
TIME
ON
TIME
ENTER
RESUME
HOUR
MINUTE
+
-
Main Digits Blink
Indicates light is off
