Curt Manufacturing 11065 - Installation Walkthrough Steps; Parts List and Preparation; Positioning and Securing the Hitch

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com

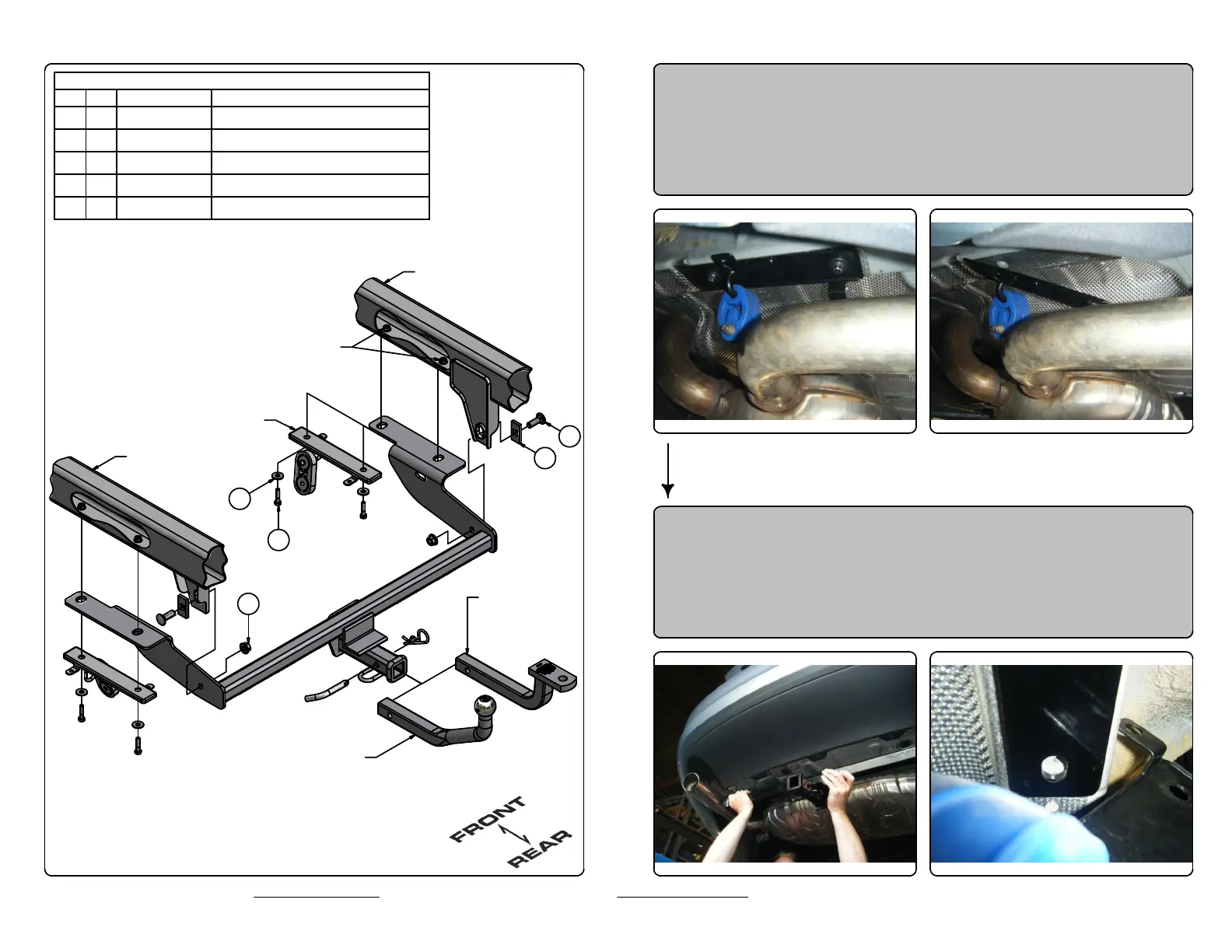

Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
HEX BOLTM8-1.25 x 3541
CONICAL TOOTHED WASHER3/8"
4
2
CARRIAGE BOLT1/2-13 x 1 1/223
.250 x 1.00 x 2.00" SQUARE HOLE SPACERCM-SP122
4
HEX FLANGE NUT
HFN 121325
EXISTING WELDNUTS (BOTH SIDES)
EXHAUST HANGER BRACKET (BOTH SIDES)
DRIVER SIDE FRAME RAIL
PASSENGER SIDE FRAME RAIL
EURO MOUNT OPTION AVAILABLE
#45591 (1 7/8" BALL) AND #45592 (2" BALL)
DESIGNED FOR
USE WITH
BALLMOUNT #45522
1
2
3
4
5
1. Lower exhaust by removing (2) M8 fasteners from each
exhaust hanger bracket. Return (4) M8 fasteners to vehicle
owner.
2. Raise hitch into position. (NOTE: Hitch will be sandwiched
between frame and exhaust hanger brackets)


