HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
1-877-287-8634
INSTALLATION STEPS
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT
Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the
warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
TOYOTA PRIUS
07/02/2020
11473
PAGE 2 of 2
1. Remove the (14) push pin fasteners and (3) twist type fasteners attaching the (3) underbody panels to the rear
of the vehicle.
2. Using a phillips screwdriver, remove (2) screws from the lower rear fascia. NOTE: some models will have
(2) white plastic clips located by the screws, these will need to be removed as well. Using a 12mm socket,
remove the (8) bolts attaching the bumper assembly to the rear face of the cabin. Lightly pull the lower fascia
away to remove the bumper beam and return flange bolts to vehicle owner.
3. Using a hammer, flatten the tabs on the end of the bumper beam assembly so they are flush.
4. Unclip the wiring from the ends of the fascia clips and unclip the lower fascia from the rest of the bumper cover
to remove.
5. Raise the hitch and bumper beam assembly into position and loosely install fasteners with a 13mm socket.
6. Torque all M8 fasteners to 23 lb-ft.
7. Re-install lower bumper fascia in reverse order of removal.

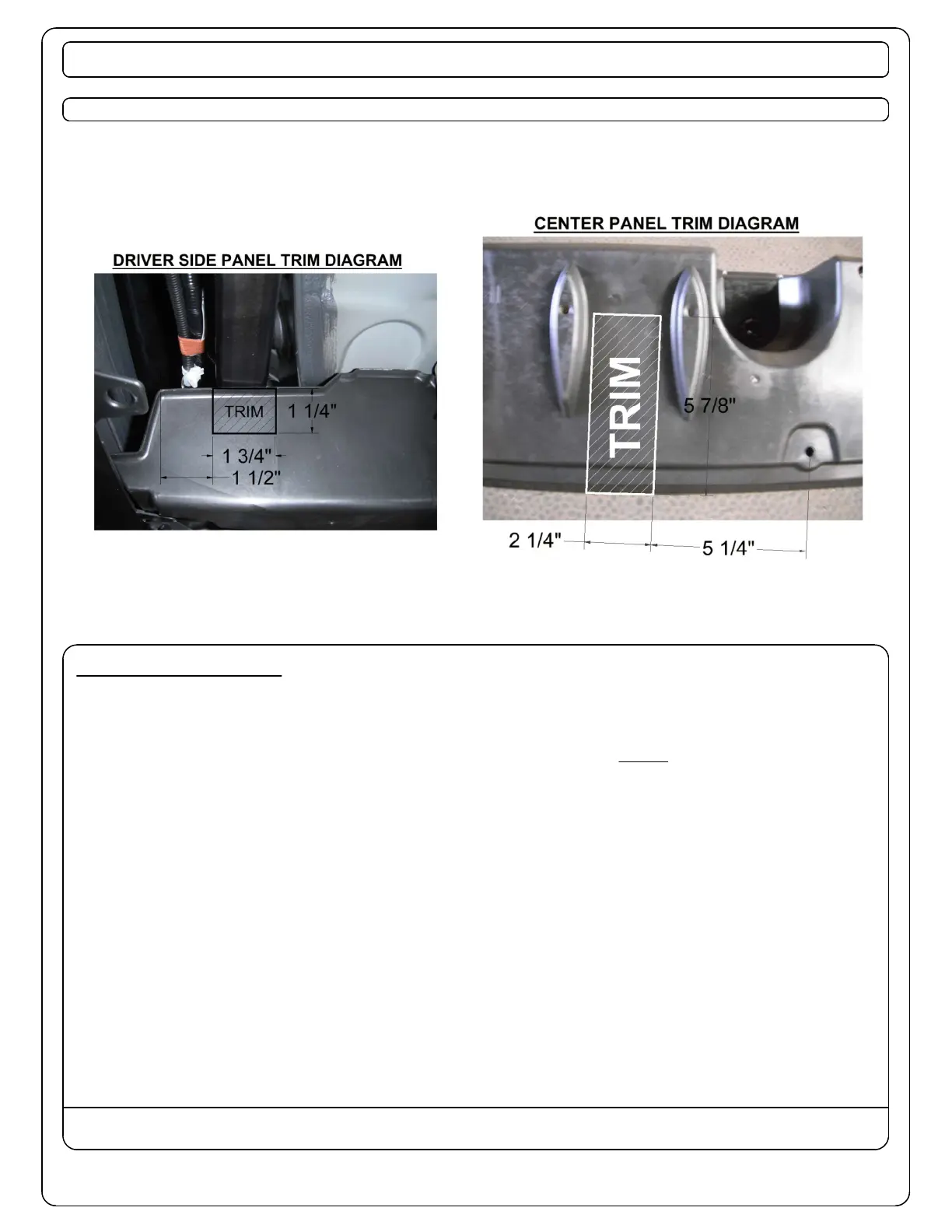

8. Using the diagrams above, trim the underbody panels as needed for reinstallation.
9. Reinstall the remaining underbody panels removed in step 1.
