curt 18087 - ASSEMBLE AND INSTALL 2-BIKE EXTENSION

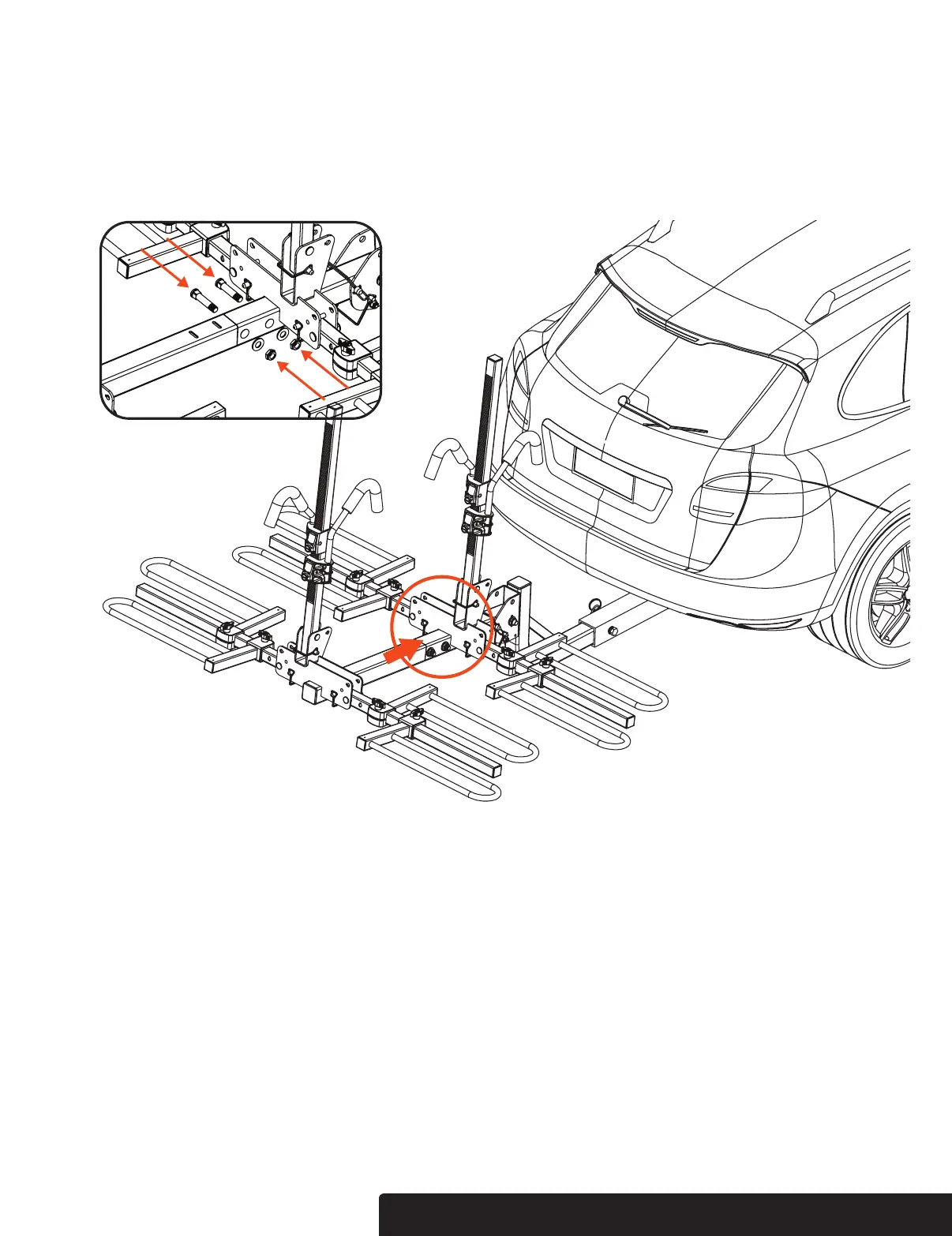

Figure 7
Detail M
ASSEMBLE AND INSTALL THE 2-BIKE EXTENSION
7 (SR)
6 (SL)
To assemble
Assemble the extension following steps 2 through 4 in the 'Assembly' section using the extension rack arms (#2).
To install
Insert shank of extension rack (#2) into the open shank of the main body rack (#1).
Secure using both extension bolt sets (#13). See Figure 7, Detail M.
