Parts List
Qty Description #
1 Bottom bracket 1
4 U-clamp 2
9 Lock nut, M10 3
4 Eye bolt, M10 x 45mm 4
1 Carrier frame 5
1 Fixed plate 6
1 Button socket cap screw,
M10 x 25mm
7
2 Eye bolt, M10 x 20mm 8
1 Flat washer, M10 9
1 Shank assembly 10

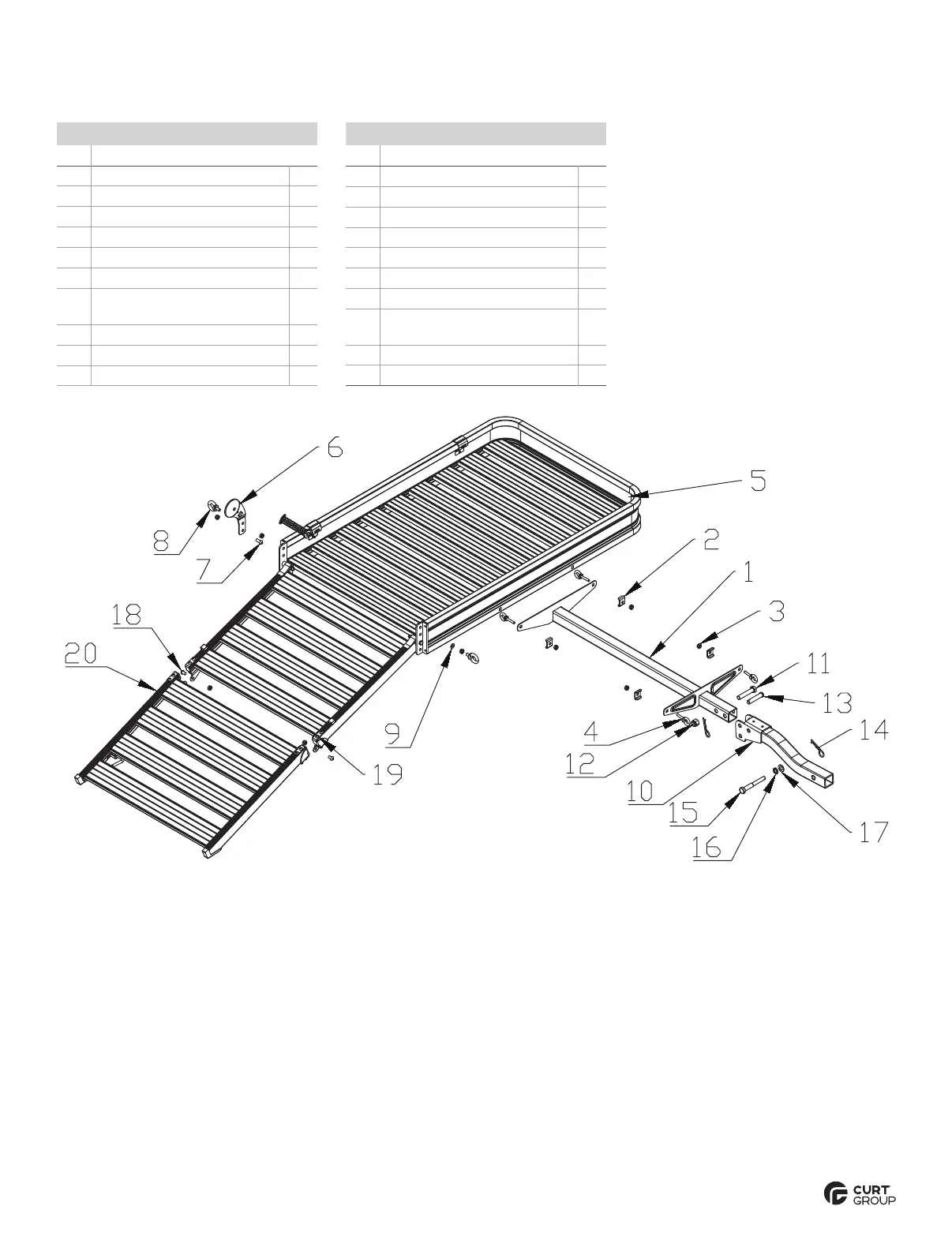

ASSEMBLY
Parts List
Qty Description #
1 Hex head bolt, M16 11
1 Lock nut, M16 12
1 Pin 13
2 Clip 14
1 Anti-rattle hitch pin, M16 15
1 Spring washer, M16 16
1 Flat washer, M16 17
2 Button socket cap screw,
M10 x 20mm
18
1 Upper ramp 19
1 Lower ramp 20
