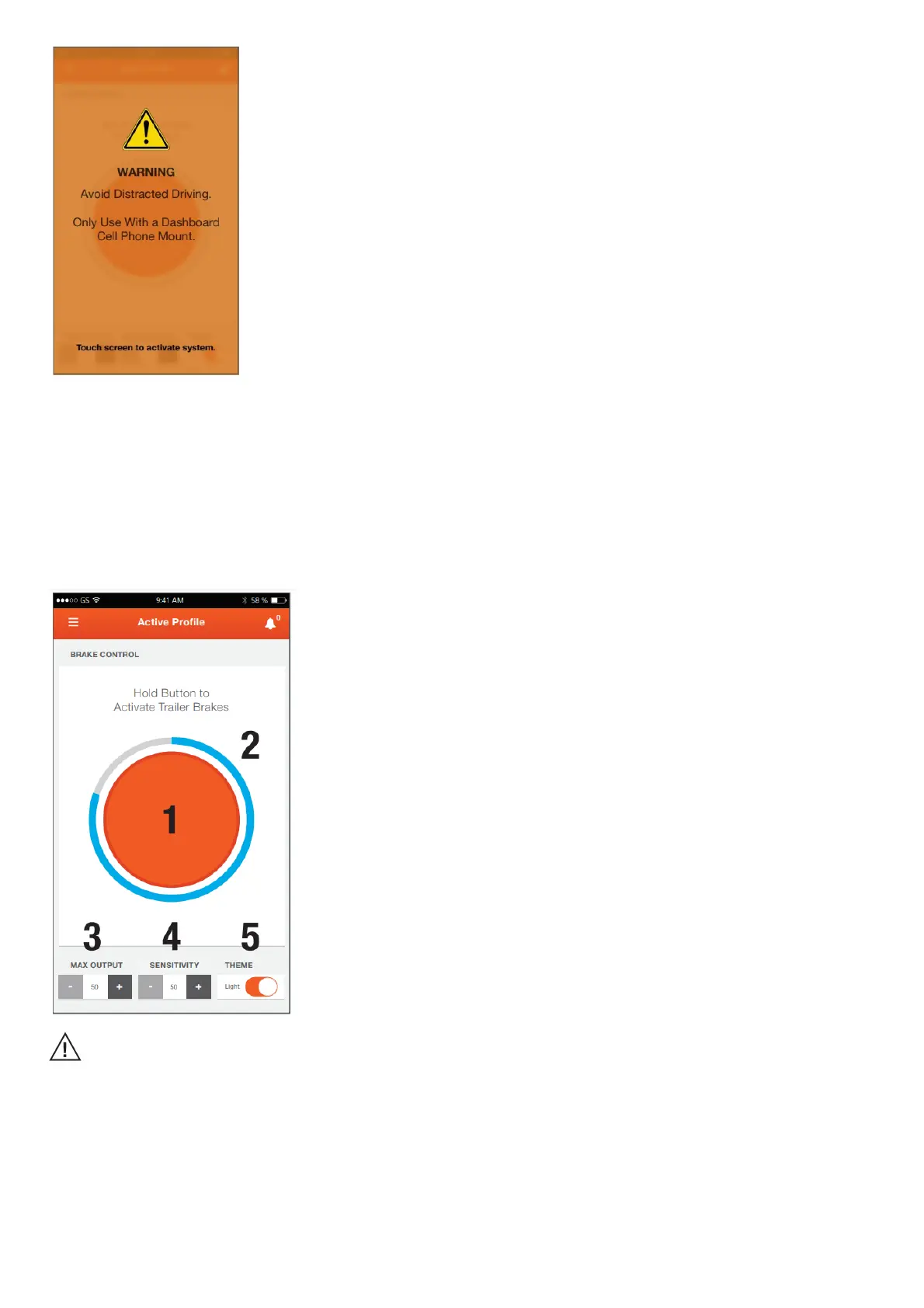

CONFIGURING PROFILE SETTINGS
In your ‘Active Profile’ screen, you can adjust settings.
1. Manual Brake Activation:
Activate manual brake control by pressing and holding the orange button.
2. Current Brake Level:
The blue ring indicates the current brake output level.
3. Max Output:
The maximum level of the brake is set by the ‘Max Output’ setting.
4. Sensitivity Level:
The sensitivity of the braking power is set by the ‘Sensitivity’ setting.
5. Screen Theme:
Select the look of your screen for day or night. Note: ‘Max Output’ and ‘Sensitivity Level’ are adjustable in increments of five.
WARNING
If a communication error occurs between the mobile application and the brake control, the ‘Manual Brake Activation’, ‘Max Output’ and ‘Sensitivity Level’ setting
updates will not take effect, and condition notifications from the brake control will not be sent. The brake control will continue to function properly at the most recently
programmed settings and braking operation will not be affected.
Manual Brake Activation
Manual brake control activation is used in situations where a slow reduction in speed is desirable. As the manual control is activated,the Echo™ begins to apply the
trailer brakes. Manual output can be activated by pressing and holding the orange button in the app.
The manual control can be set up to apply 100% of the unit’s power to the trailer brakes or to limit power to the output control setting.
Echo™ is factory-set with the switch in the ‘limited to the output control’ position. This can be changed in the app settings menu.
Max Output
The output control establishes the max amount of power available to the trailer brakes when braking. The output should be adjusted during initial setup, when trailer
load changes, when different trailers are used, or when adjustment is needed for changing road or driving conditions.
