4. Plug the trailer’s 7-way connector into the Echo™ brake control while parked on a level surface. With the brake control inserted and the vehicle started, the LED
light on the Echo™ will flash yellow for five to eight seconds while calibration occurs. Once the device is calibrated the LED will turn solid green.
If the calibration takes longer than eight seconds remove and reinsert Echo into the vehicle’s 7-way socket.
If the LED does not light up, the 7-way may not have +12V power.
Refer to the ‘Vehicle-Specific Requirements’ on page one and the ‘Troubleshooting Guide’ on page four of this manual.

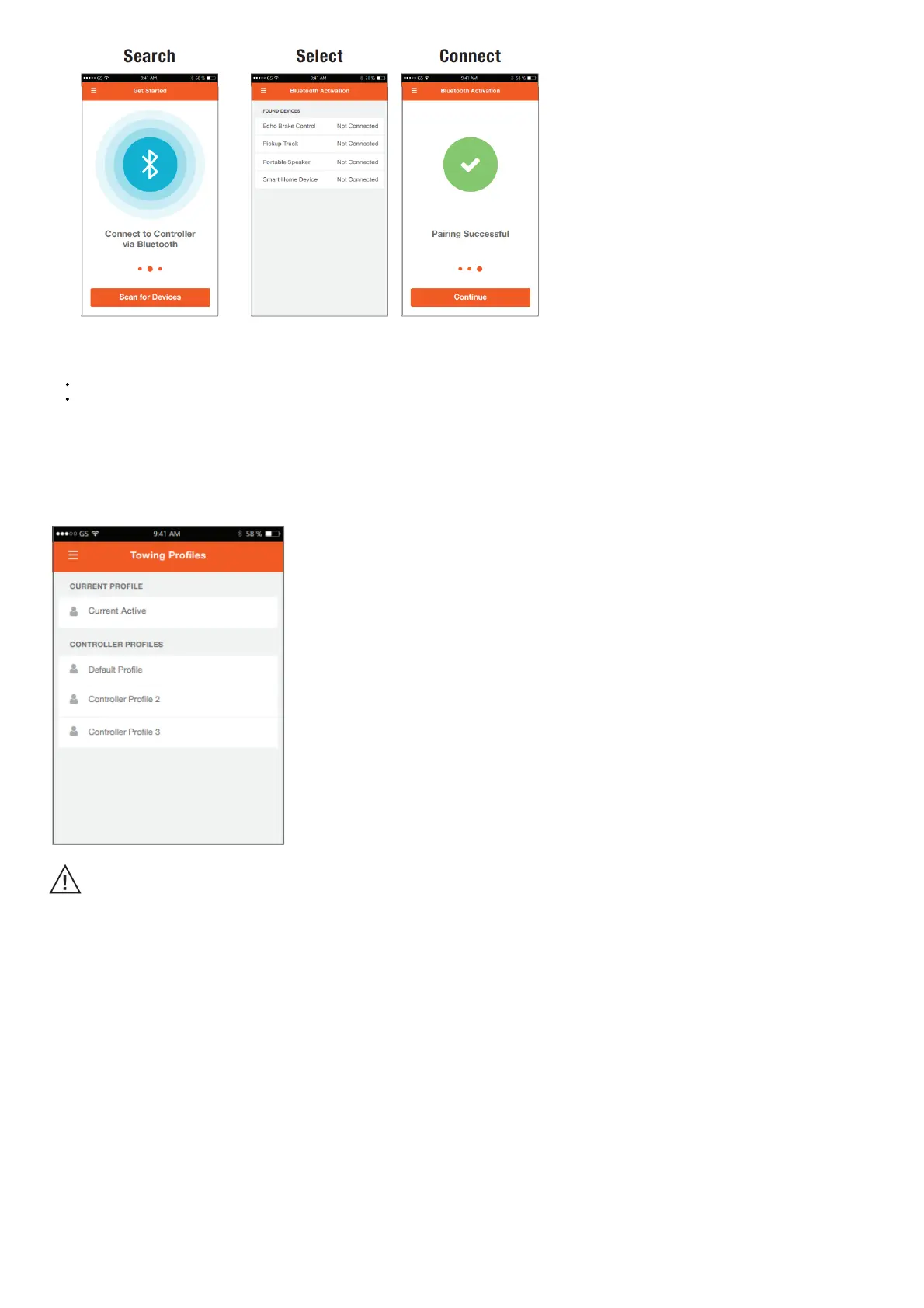

APPLICATION SETUP
After pairing with the Echo™, you will be directed to the ‘Towing Profiles’ screen to set up your trailer’s profile. You can create and save profiles for multiple vehicles,
trailers, and load conditions.
Setting configuration is required when trailer conditions change or the brake control is being used for a different trailer or vehicle.
WARNING
Avoid distracted driving.
Only make adjustments when the vehicle is stationary.
