1313 Handheld Programmer Manual (18 MARCH 2010)
1 5 M A R C H 2 0 1 1 D R A F T
2 — OPERATION
Powering up the programmer
Connect the handheld programmer into the control system by plugging it into
the controller’s charger/programmer port.

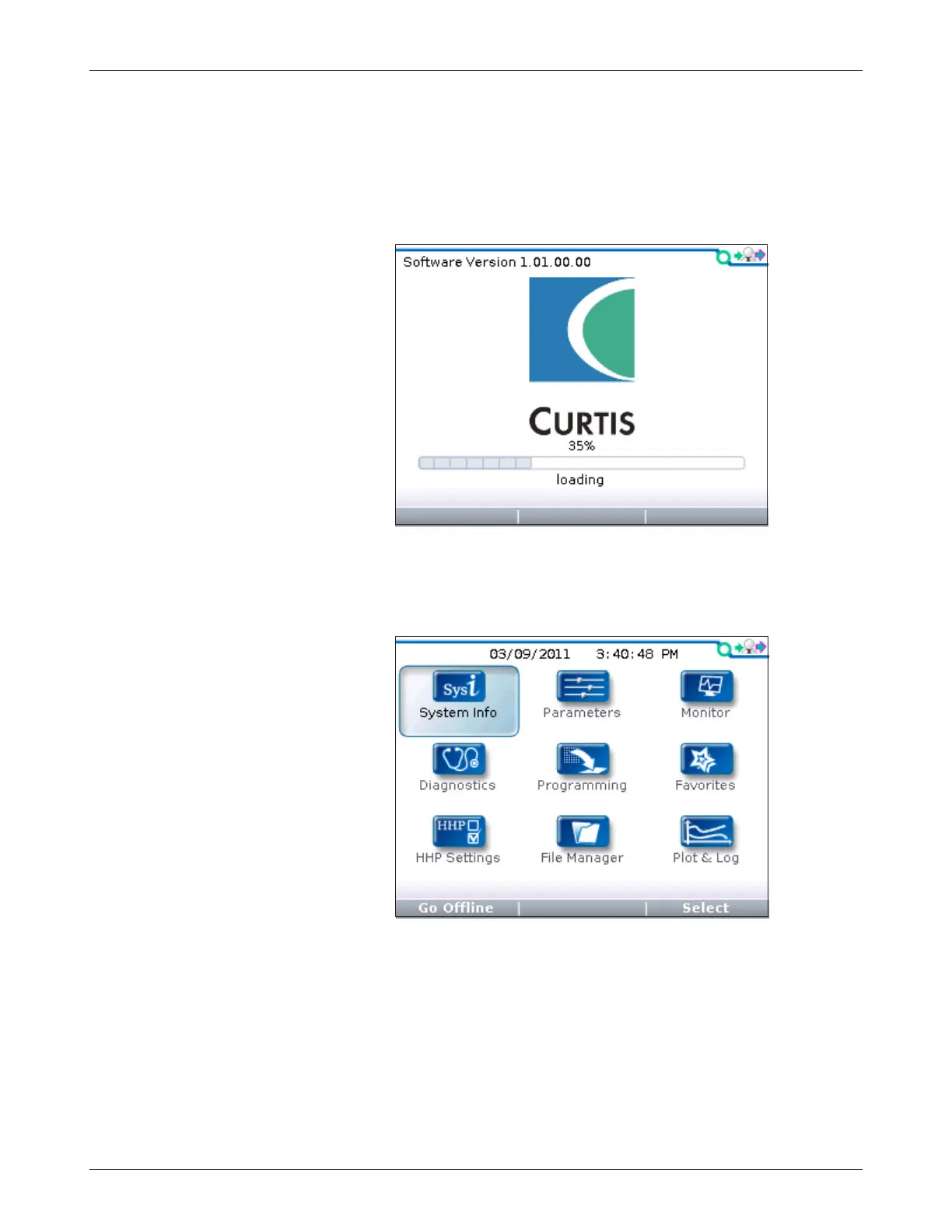

The programmer automatically powers up, and displays this screen while
it loads information from the controller.
Once the programmer has uploaded the information from the controller, it
displays the Main Menu.
If the controller is not turned on when the programmer is connected, you can
power up the programmer by pressing the Power key; the message “No System
detected” will be displayed.
