1 — OVERVIEW
pg. 1
Return to TOC Curtis AC F4-A Motor Controller – August 2020
1 — OVERVIEW
e AC F4-A is CAN-based induction-motor controller. Available in either 24 volt or 36-48 volt
models, this compact motor controller delivers unmatched performance with a exible feature set.
e Model AC F4-A is fully optimized for use as a traction controller on class III pedestrian-operated
powered pallet trucks. It provides vehicle designers with the ability to fully dene and control the
detailed dynamic performance of their vehicle’s drivetrain, and also provides comprehensive vehicle
management and CAN manager capabilities. Model AC F4-A is also suitable for traction or hydraulic
pump control on other types of battery powered vehicles.
Together with the new Curtis model 3140/3141 CAN LCD display and the new user-friendly Curtis
Integrated Toolkit
TM
, the Curtis model AC F4-A is the ultimate Class III truck control system.
Easily enhance any application by using Curtis’s Vehicle Control Language (VCL). e F4’s setup and
diagnostic tasks use the new PC-based Curtis Integrated Toolkit™ program (CIT) or the CAN-based
Curtis 1313 handheld programmer (1313HHP).

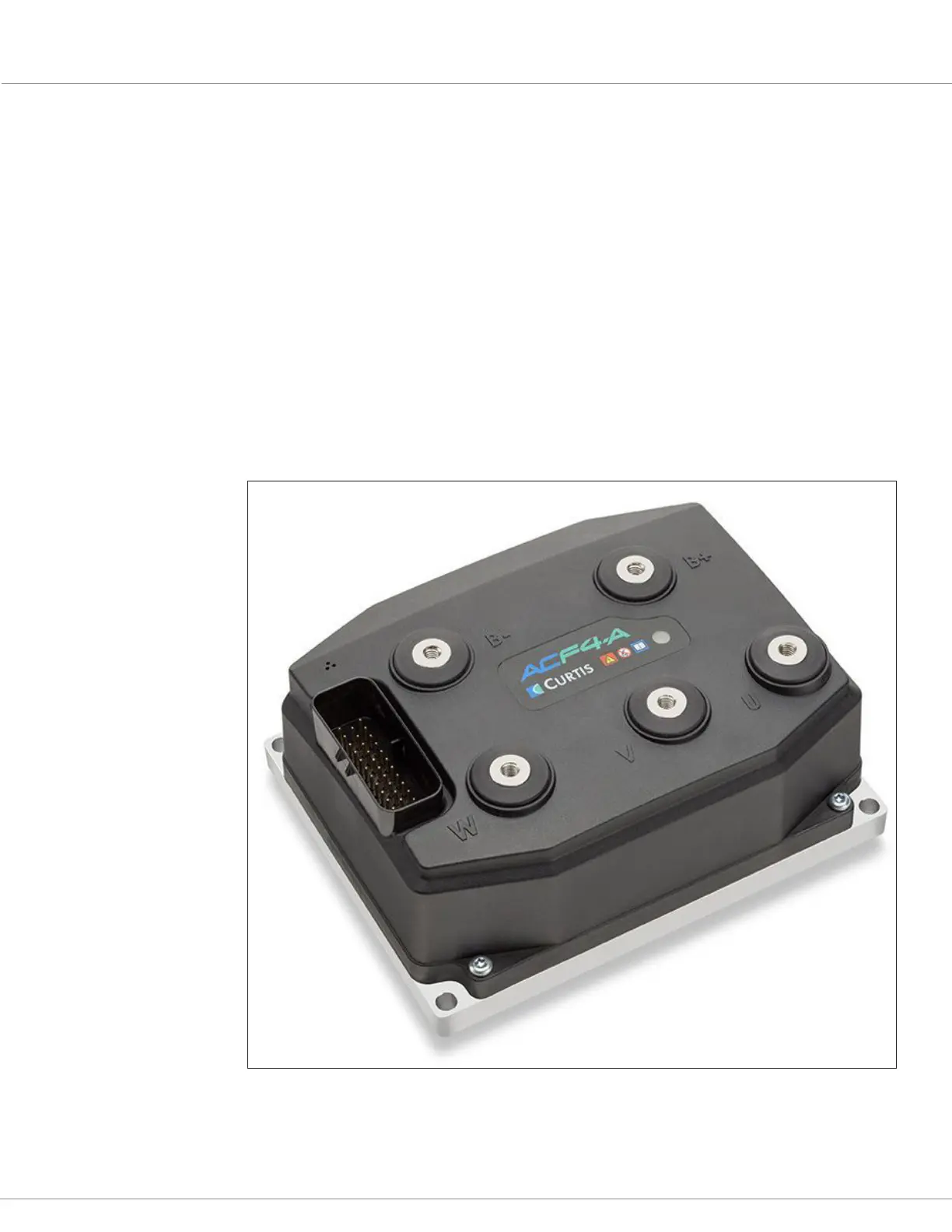

Figure 1
AC F4-A Motor
Controller
