ILLUSTRATED PARTS/RECOMMENDED PARTS IP21
8$8$ø5"/,"44&.#-:*--6453"5&%1"3543&$0..&/%&%1"354 '
ITEM # PART # DESCRIPTION
1A WC-6277
TANK, COMPLETE 1600W 120V D500GT/TCTS/
PTT/CBS
1B
1
WC-75236
TANK, ASSY D500GT/H/TCTS/PTT3/ CBS W/WC-
904 HEATING ELEMENT
1C
3
WC-75236-20
TANK, ASSY D500GT/H/TCTS/PTT3/CBS W/WC- 917
HEATING ELEMENT
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3 WC-43062* GASKET, TANK LID
ITEM # PART # DESCRIPTION
4A
a
WC-5528K* KIT, WATER LEVEL PROBE, SILICONE
4B
b
WC-5502-01*
KIT, PROBE, ASSY WATER LEVEL W/HEX FITTING,
O-RING & NUT
5A WC-904-04*
KIT,ELEMENT, HEATING 1.6KW120V W/ JAM NUT &
SILICONE O-RING
5B
3
WC-917 ELEMENT, HEATING 1.45KW 120V W/JAM NUTS
6 WC-1438-101* SENSOR, TEMPERATURE TANK
7 WC-4394*
GUARD, SHOCK/HEATING ELEMENT FOR SINGLE
HEATING ELEMENT
8 WC-523*
THERMOSTAT, MANUAL RESET 120/ 240 VAC 25A
220 DEG F MAX
9 WC-37365* KIT, FITTING TANK INLET
10 WC-37266* KIT, FITTING TANK OVERFLOW
11 WC-37317* KIT, STRAIGHT FITTING & BUSHNG 8mm GEN USE
12
2
WC-2630* BUSHING, CONICAL BLIND GEN USE

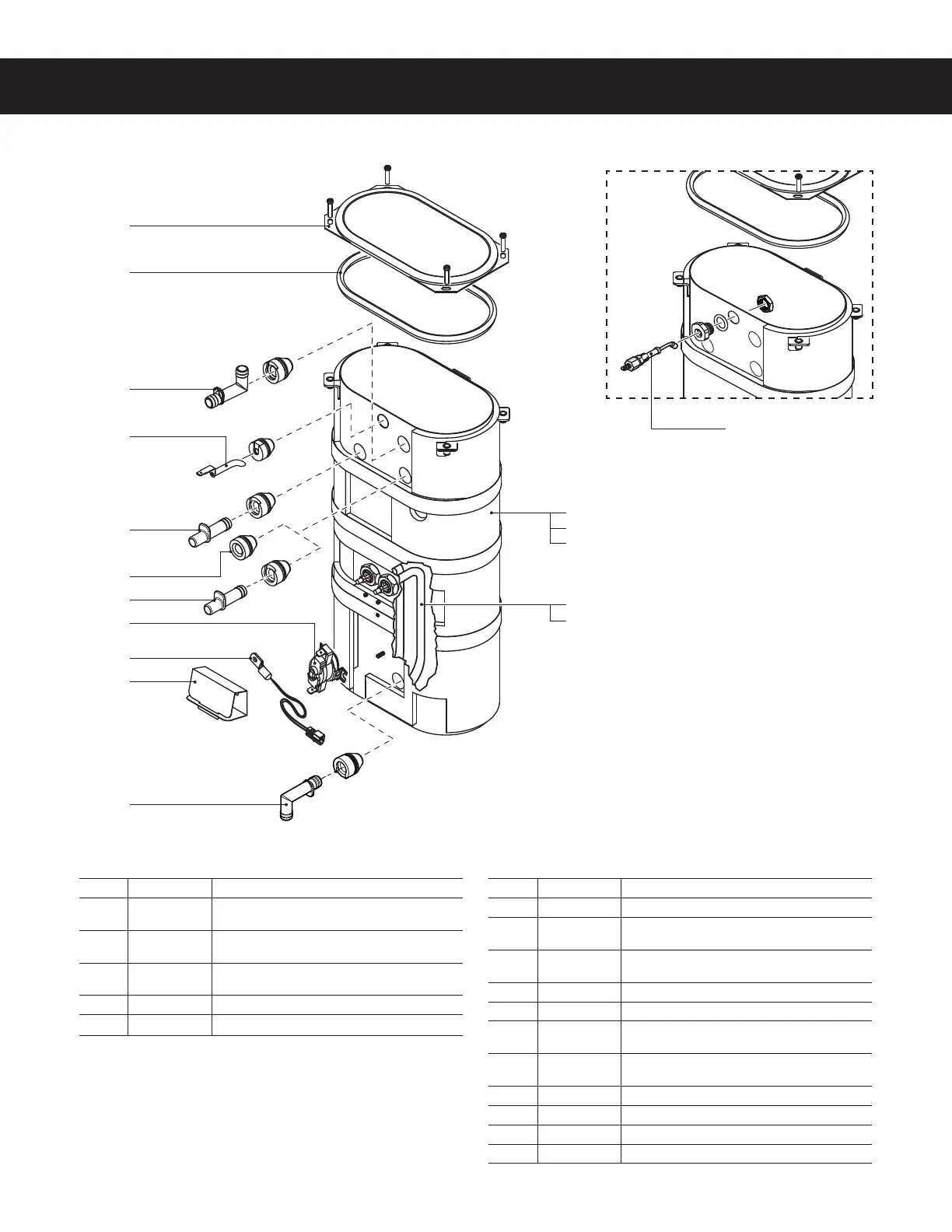

WC-6277/WC-75236[-20] - Tank Assembly
2
3
10
4A
11
12
2
11
8
6
7
WC-6277/WC-75236[-20] - Tank Assembly - Parts List
1
For units without hot water faucet, specify that item 12 be installed in location shown
when ordering
2
For units without hot water faucet
3
Canadian units
a
Units built 01/04/2019 and later.
b
Units built before 01/04/2019. Replaces WC-5527.
*
Recommended parts to stock.
1A
1B
1C
5A
5B
4B
9
