Curtis G3 D500 Series User Manual

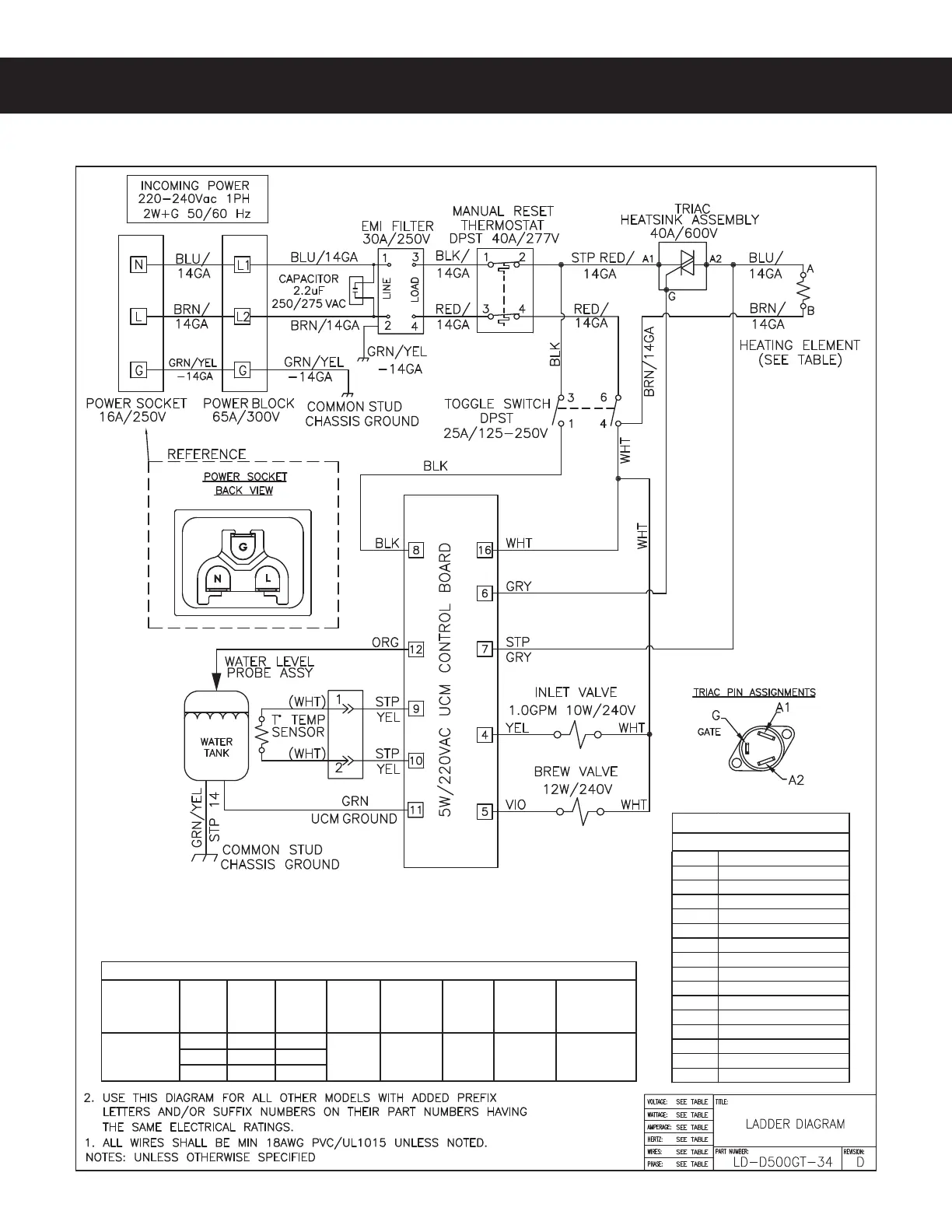

ELECTRICAL SCHEMATICS ES104
%&-&$53*$"-4$)&."5*$ø $
1
NOT USED
2
NOT USED
3
NOT USED
4
INLET VALVE
5
BREW VALVE
6
TRIAC GATE
7
TRIAC A2
8
220V-240V L1
9
TANK TEMPERATURE SENSOR
10
TANK TEMPERATURE SENSOR
11
UCM GROUND
12
WATER LEVEL PROBE
13
NOT USED
14
NOT USED
15
NOT USED
16
220V-240V L2
UCM Pin Assignments
16 Pin Connector
Model
Voltage
V
Amps
A
WaƩs
W
Hertz
Hz
# of
Conductor
Wires
Phase
# of Tank
Elements
Tank Element
RaƟng
W/V
220 11.6 2550
230 12.1 2787
240 12.7 3050
ELECTRICAL RATING TABLE
50/60 2 1 1 2500W/220V
D500GT34x/
D500GTH34x
D500GT34
