ILLUSTRATED PARTS/RECOMMENDED PARTS IP33
GEMSS/GEMTS - GENERIC, ILLUSTRATED PARTS/RECOMMENDED PARTS 090519E
39
5
11
24
22
15
10
34
12
13
16
38
26
17
37
20
18
30

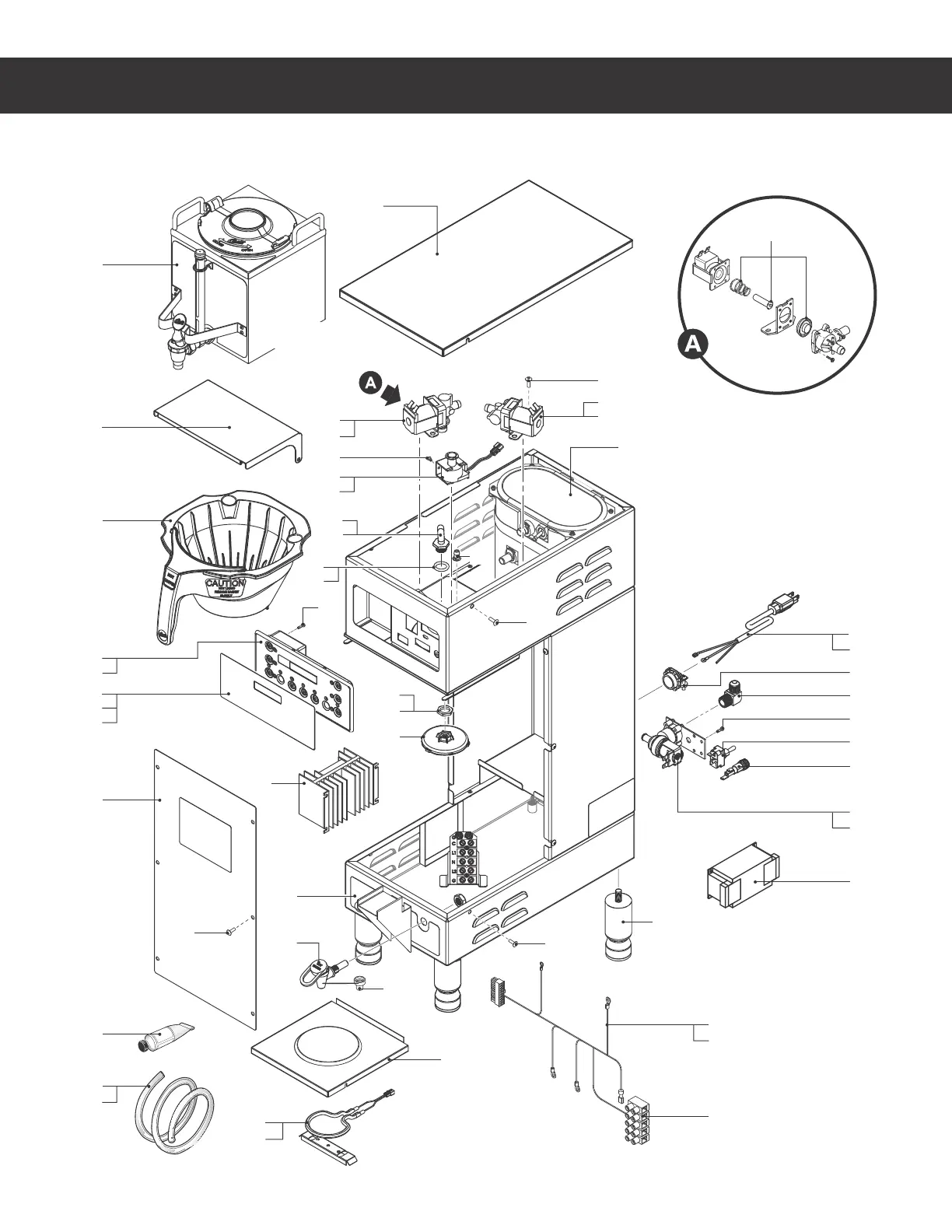

GEMSS - Main Chassis - Exploded View
Water tanks assemblies:
Single voltage units, see section IP31
Dual voltage units, see section IP32
4A
4B
6A
6B
32A
32B
35
7A
7B
8A
8B
33A
33B
2
1
31A
31B
19
23
9A
9B
9C
3A
3B
36
34
25
27A
27B
21A
21B
14A
14B
34
34
28
See satellite user guide for
satellite replacement parts.
29A
29B
