REFRESHER UNIT
29
• 6”Cup Module:
The 6” cup module is aligned by four dimple bosses
located on the bottom of the module. To remove these
modules, remove the passenger side counter-top and
loosen module clamps, (refer to lock-down mechanism).
Gently pull the module up and out using the door handle
and or top end of module.
NOTICE: Passenger side counter-top must be
removed and module clamp must be loos-
ened before attempting module removal.
NO TOOLS REQUIRED
Modules can be arranged in any combination
of the 6” cup, 12”, 18” or 6” pull through modules
up to total of 24” wide.

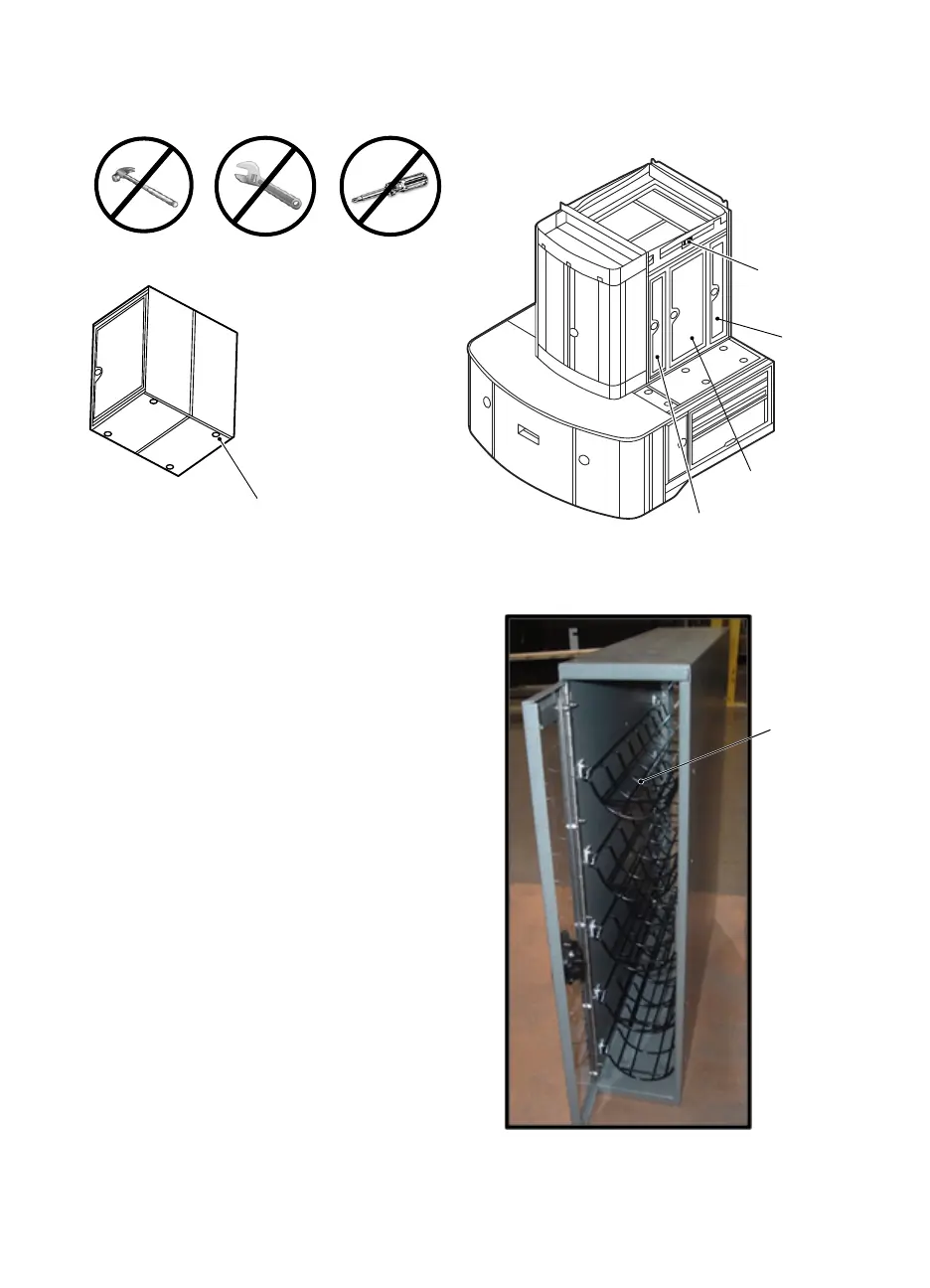

6” Cup Module
12” - 18” Center Module
Dimple Boss - located on the bottom
of each module for positioning.
6” Pull Through Module
Module Clamp
Wire cup racks
are designed to
hold cups only.
