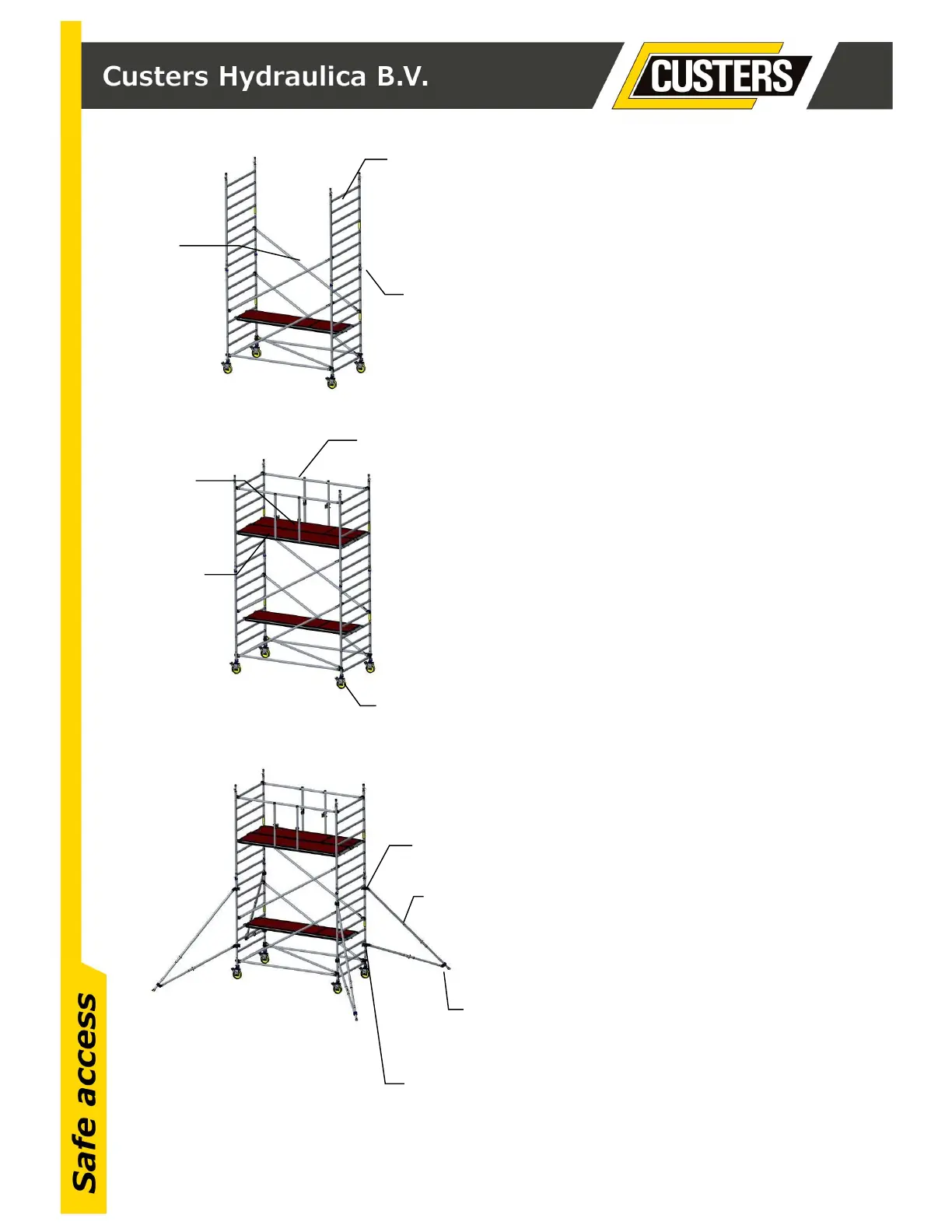

8: Place both 8-rung frames;
9: Place locking pins between the
frames themselves;
10: Place both diagonal braces;
11: Place both Mobile Guard guardrail
frames on the upper rung;
12: Place one platform with hatch (on the
5
th
rung from the top) on the façade
side and the other platform without
hatch on the other side
13: Slide both blow-away protections
under the rung;
14: Lock the brakes and set the
scaffold level by twisting the
spindle nut of the casters;
Now place the four (large or small)
stabilizers:
15: Place the upper coupler under the 6
th
or
7
th
rung at the small leg, 9
th
or 10
th
rung at the large leg;
16: Put the foot on the ground with
observance of the designated basic
form (see 4.4);
17: Make sure that the lower coupler falls
between two rungs;
18: Rotate the stabilizer in such a way that
the designated basic form (see
4.4) is maintained;
19: Tighten the lower coupler
by hand on the upright and slide the
coupler upwards over the upright so
that the leg is slightly tensioned and
slightly tighten both couplers;
8
9
10
11
12
13
14
15/18
18
16/17/19
16
