6.4. Lifting up components

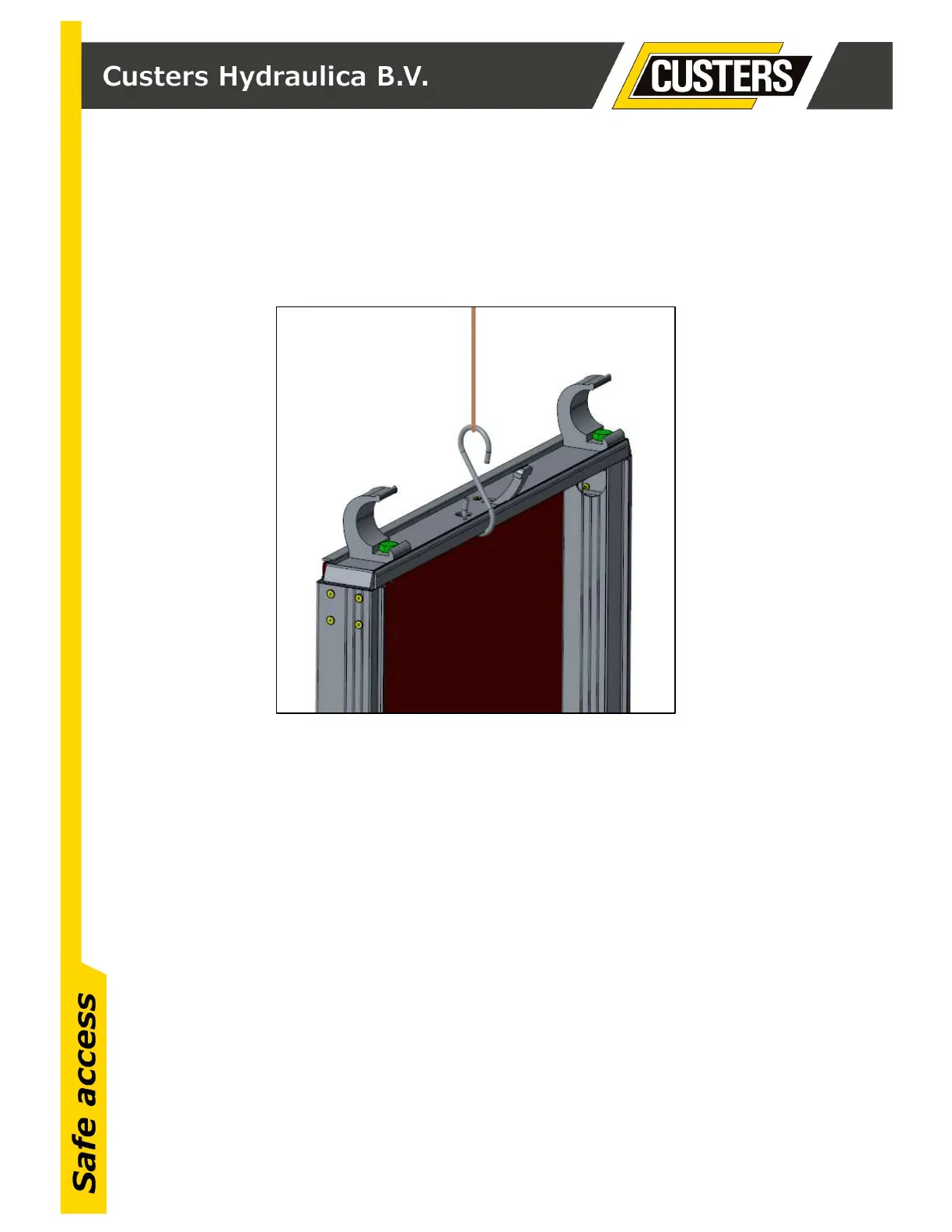

Lifting up components onto higher areas should be done by passing the components
from platform to platform. Parts can also be lifted upwards with a sturdy rope. Use a
proper knot, loop or hook to secure the components. Hoisting equipment may not be
attached to the scaffold.
6.5. Outriggers and stabilizers
The outriggers (arch shaped stabilizer that allows a castor to be attached) / stabilizers
specified in the table must always be fitted once the lower edge of the scaffold has
been erected. During assembly, the upper sides of the outriggers / stabilizers must be
connected to the underside of the rungs in order to prevent them from sliding upwards
unintentionally.
The basic form to be used, i.e. the outrigger to be used (small or large), can be read
in the composition tables.
The basic forms shown below must be strictly adhered to!
If the designated form is different, ballast weights may be required; please contact the
manufacturer/supplier for this. Small outriggers may be replaced by small stabilizers
and large outriggers by large stabilizers, provided that the use of stabilizer follows the
same basic form as the outriggers. This means that the stabilizers, when viewed from
the top, must be mounted in the same position as the outriggers.
