7. Assembling the narrow mobile scaffold tower
(2,4,6,8,10,12 m)

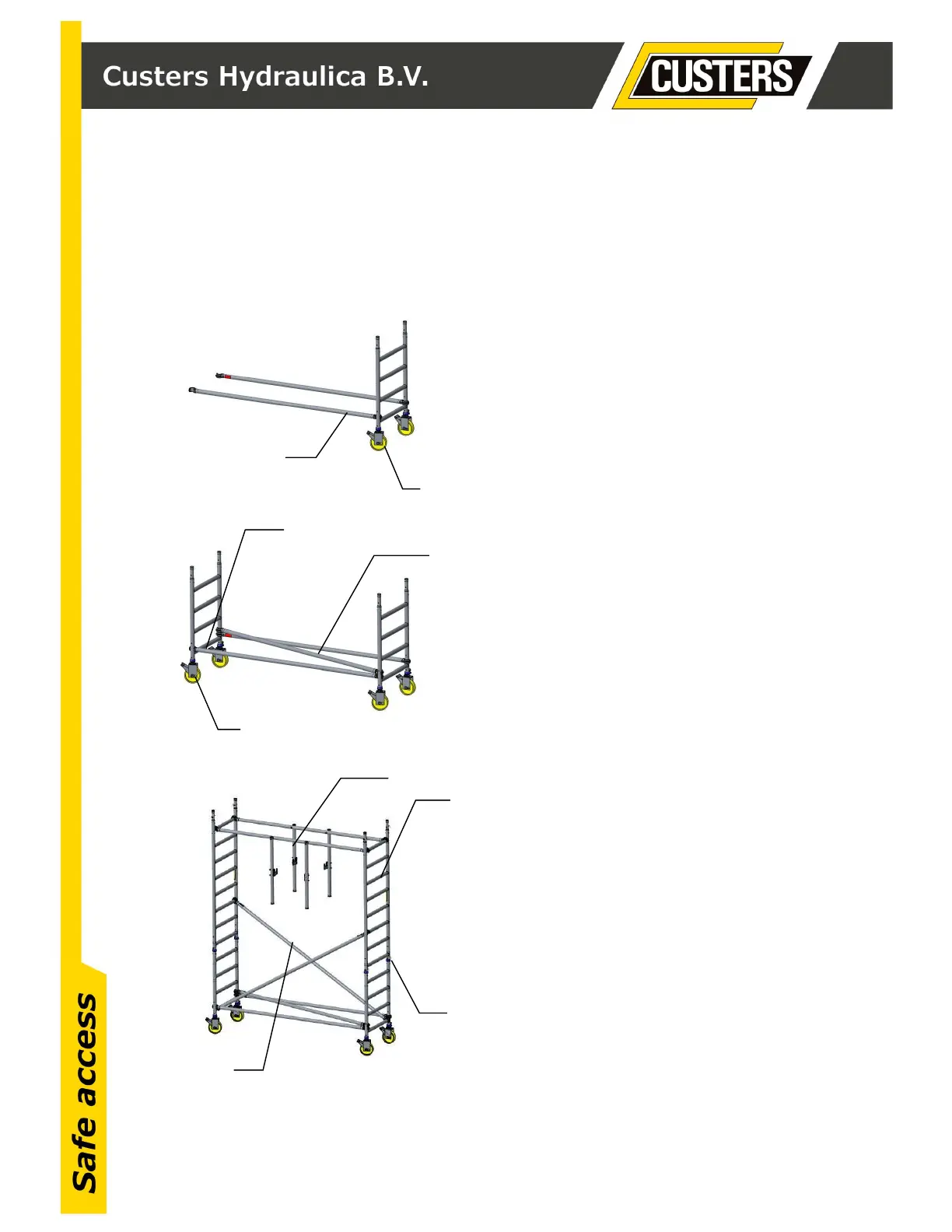

1: Insert both casters into the 4-rung
frame; and make sure that the
casters are properly secured;
2: Place the horizontal braces on the
uprights of the frame;
3: Insert both casters into the 4-rung
frame; and make sure that the
casters are properly secured;
4: Place the horizontal braces on the
uprights of the frame
5: Place the horizontal/diagonal brace on
the uprights of the frame;
6: Place both 8-rung frames;
7: Place locking pins between the
frames themselves;
8: Place both diagonal braces;
9: Place both Mobile Guards on
the upper rung;
1
2
3
4
5
6
7
8
9
