35: Repeat steps 27 - 34 until
the preferred level has been reached;
remove the temporary platform and
use this one on the top level.
36: Climb to the next level through the
hatch; sit down in the hatch and mount
two knee rails on the 2
nd
rung and in
the hooks of the Mobile Guardrails for
permanent use. Now you are allowed
to stand on the platforms.
37: Place the four toe board brackets;
38: Place both end toe boards;
39: Place both longitudinal toe boards;

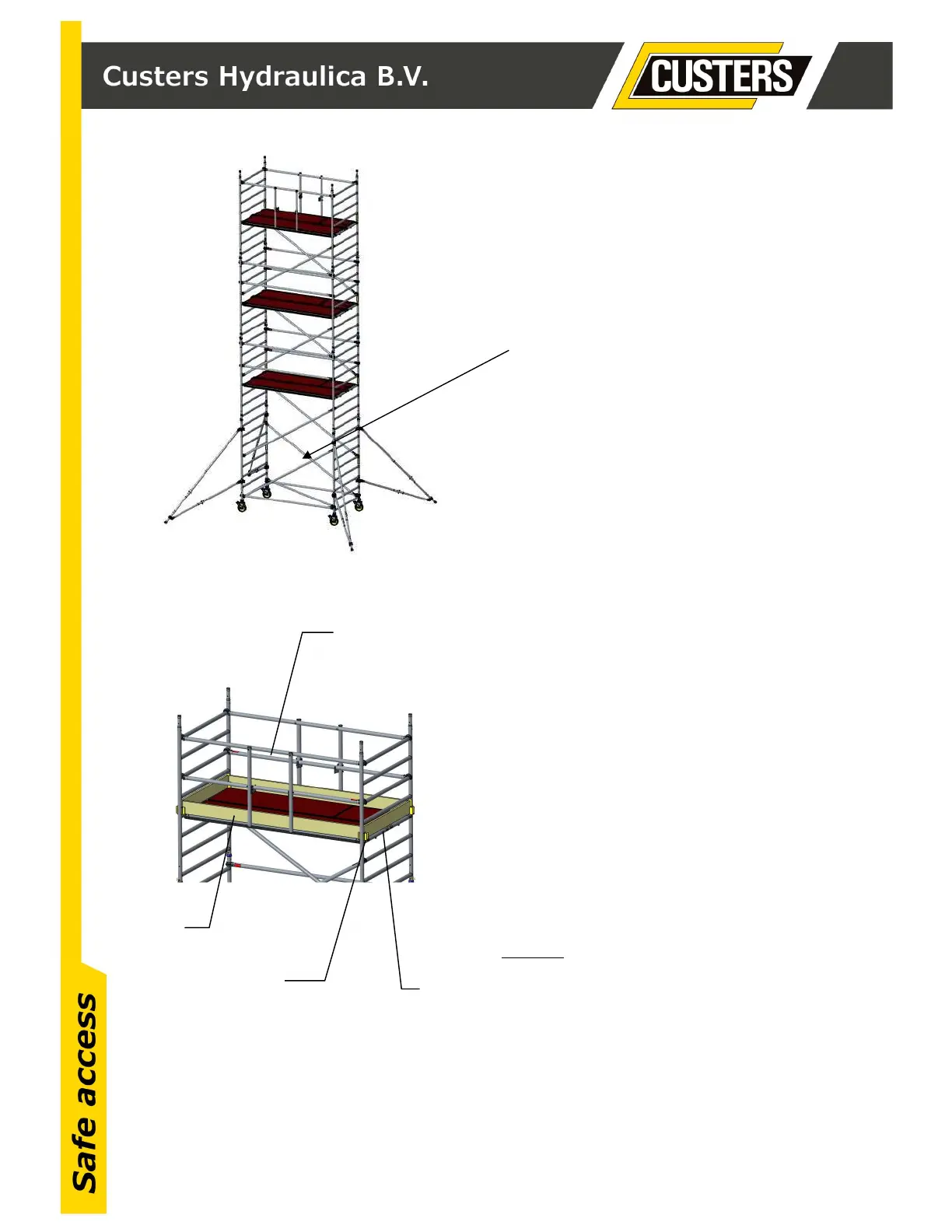

The above shows the assembly of the
freestanding mobile scaffold tower. If the
mobile scaffold tower is placed against the
façade (with a distance between façade and
platform not greater than 15 cm), the edge
protection (guardrail at hip height, knee
railing and toe board) on the façade side
may be omitted.
Attention: when building up a 3 m. platform
height scaffolding, it is practical to add an
extra temporary platform to the assembly.
36
37
38
39
