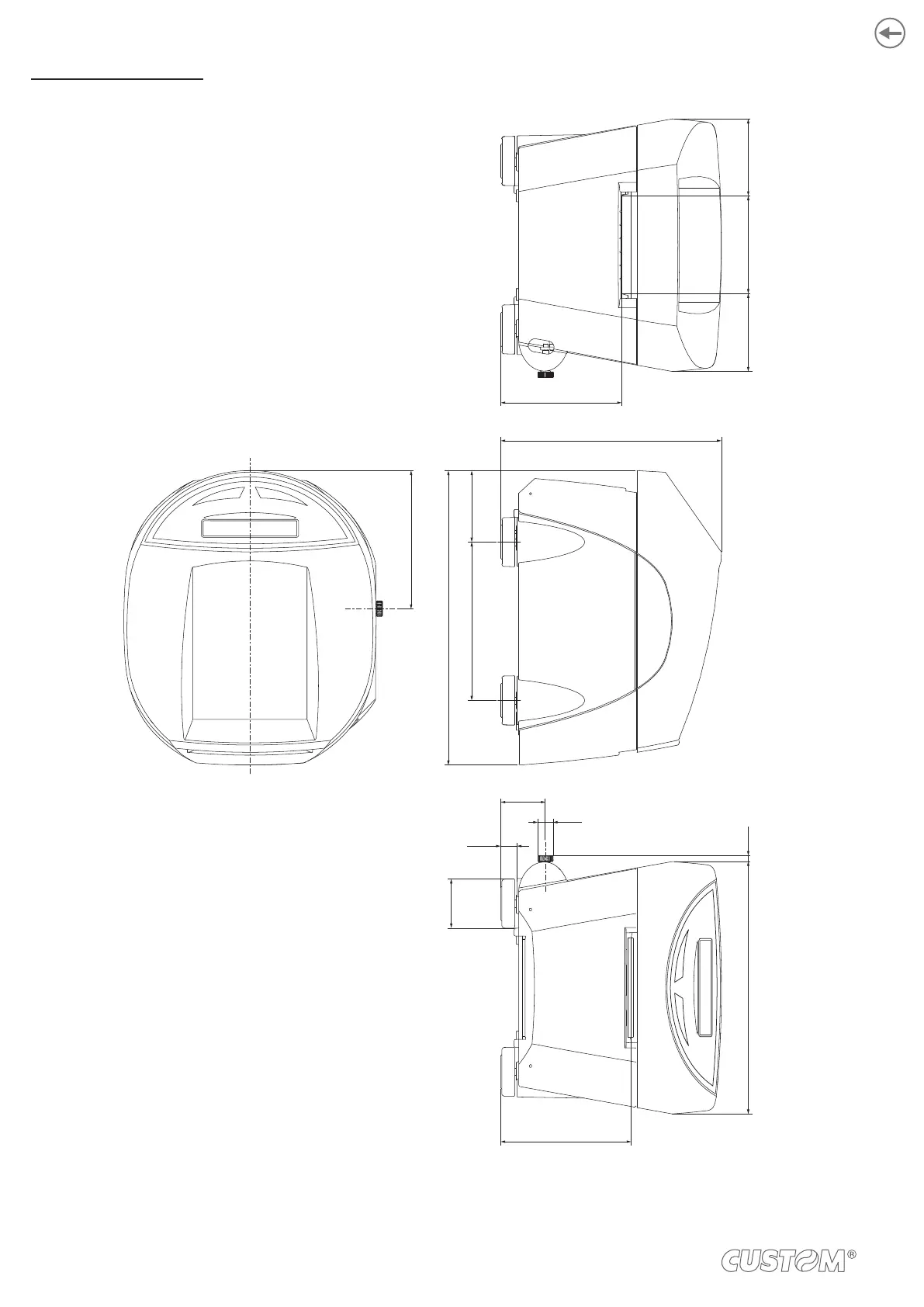

TK302 STD, TK303 STD
252
61.2
135.6
189
66.8
83.5
65.8
103.4 paper in
216
5.3
Ø13
38.4
1
12.5 paper out
13.5
1
18.2
Ø42
134
133
135
Table of Contents
Default Chapter
7
Table of Contents
7
1 Introduction
11
2 Identification of the Models
13
3 Description
15
Box Contents
15
Device Components: External Views
19
Device Components: Connectors View
28
Device Components: Internal View
29
Device Labels
30
Key Functions: Power up
31
Key Functions: Standby
32
Status LED Lashes
33
Triple Feeder LED Lashes
34
Messages on Display
35
4 Installation
37
Fixing Brackets
37
Fixing Slots
41
BURSTER Coniguration
43
CUT&DROP Coniguration
46
Connections
50
Pinout
52
Rs232 Serial Interface
53
Ethernet Interface
54
Driver and SDK
55
5 Operation
57
Adjusting Paper Width
57
Adjusting the Alignment Sensors
58
Switch Device on
60
Loading the Paper Roll
63
Issuing Ticket
67
6 Configuration
85
Coniguration Mode
85
Setup Report
88
Printer Status
90
Printer Parameters
91
Ethernet Parameters
96
Hexadecimal Dump
97
Calendar Clock
98
7 Maintenance
101
Printer Paper Jam
101
Triple Feeder Paper Jam
103
Planning of Cleaning Operations
104
Cleaning
105
Upgrade Irmware
110
8 Specification
113
Hardware Speciication
113
Character Speciications
118
Speciications for RFID Reader/Writer
119
Speciications for Barcode Reader
120
Device Dimensions
121
Device Dimensions with CUT&HOLD Kit
136
Device Dimensions with Paper Roll Holder
137
Device Dimensions with Height Reduction Kit
138
Device Dimensions with Power Supply Container
139
Device Dimensions with Metallic Ticket Tray
140
Device Dimensions with Plastic Ticket Tray
141
Power Supply Dimensions
142
Paper Speciication
143
Character Sets in CUSTOM/POS Emulation
151
Character Sets in SVELTA Emulation
158
9 Consumables
159
10 Accessories
161
Paper Roll Holder
166
Wirings Kit with Low Paper Sensor Boards
167
11 Alignment
169
Enable Alignment
170
Calibration
175
Alignment Parameters
178
Printing Area
182
12 Technical Service
183
13 Advanced Functions
185
File Sharing
185
Embedded Web Server
186
Embedded Web Server : Access
187
Embedded Web Server: Functions
189
Advanced Function
190
Locator
191
Drivers Installation
192
Logos Management
193
Fonts Management
195
Setup
197
