Custom Engineering s'print - MAINTENANCE; Changing the paper roll

1. INSTALLATION AND USE
91-
DPT100-B/I/BT
1.6 MAINTENANCE
1.6.1 Changing the paper roll
To change the roll of paper, proceed as follows:

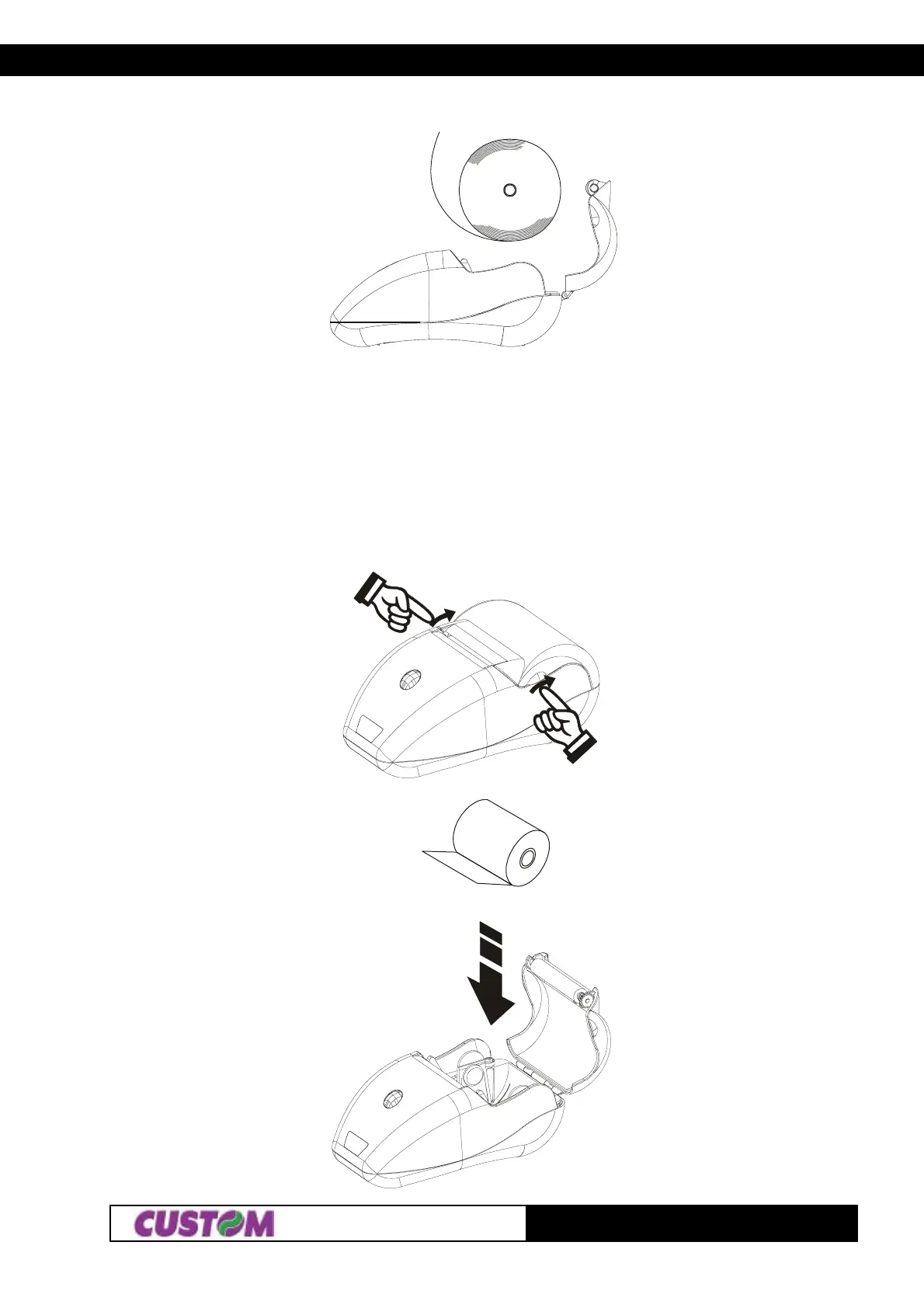

1) Open the printer cover (see fig. 1.12) levering on the cover lateral projections and position the paper roll
so that it unrolls in the direction shown in figure 1.13;
(Fig.1.11)
(Fig.1.12)
(Fig.1.13)
