6. Connect the supplied cable between the repeater and the antenna. The cable should be
within the same room and not routed near electrically noisy sources such as fluorescent lights
or electrical outlets.
7. Perform a signal survey after the antenna is mounted.

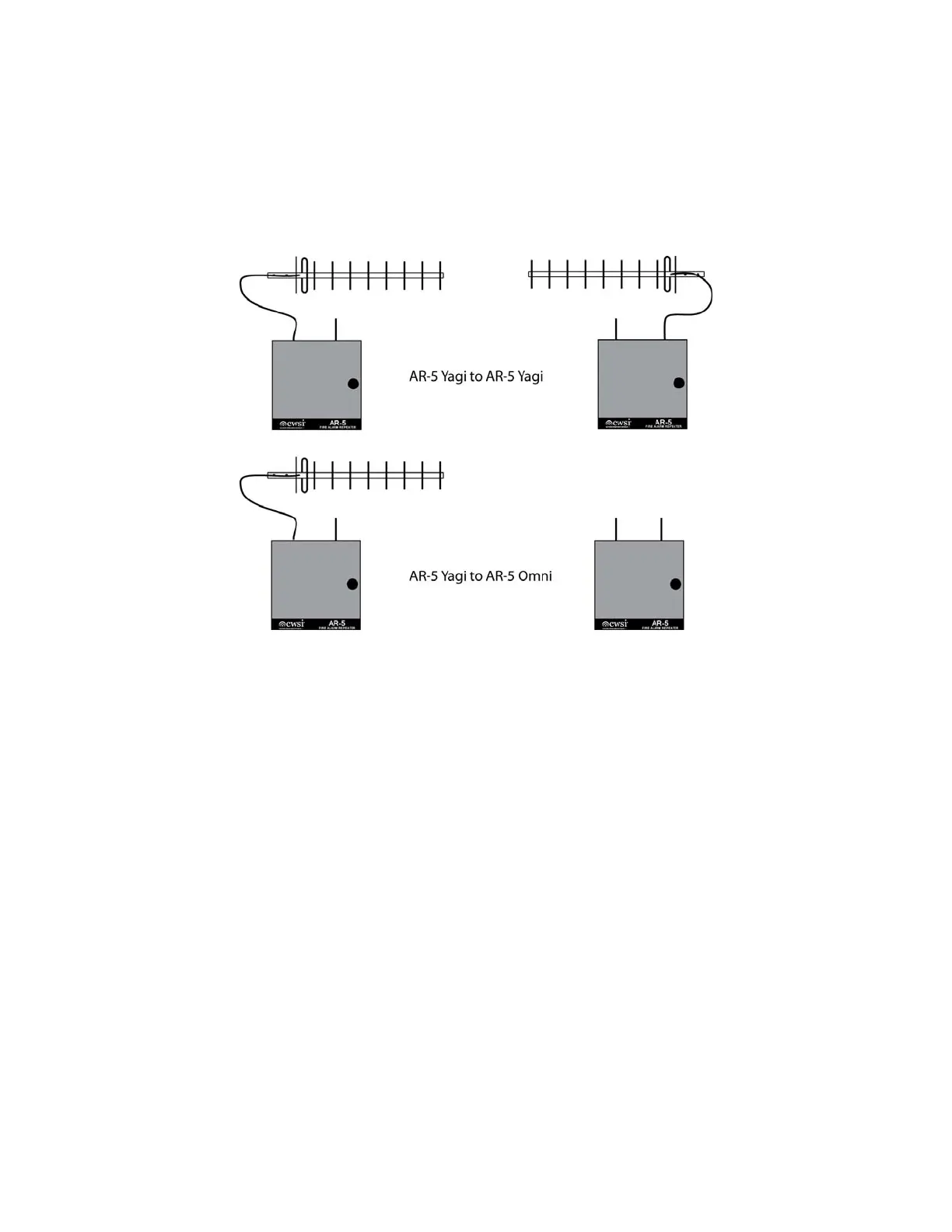

Typical Antenna Configurations
Figure 1A
Always perform the signal survey with the antenna that will be used on the repeater when it is
installed. Enrollment can only be accomplished with the repeater within reception range of the CP-
3600(+) or at the intended mounting location as long as it can communicate with another enrolled
repeater. Follow the enrollment instructions in the CP-3600(+) manual. After enrollment, it is
recommended to hold the repeater in the intended mounting location and verify a good signal survey
prior to permanently mounting the unit. Upon enrollment and conducting a signal survey the repeater
can be mounted in its intended location. The following must be considered and or adhered to when
mounting the unit.
1 – All wiring should comply with national and/or local electrical codes. Unless otherwise
specified, wire should be 18 gauge copper with 600 Volt insulation. Shielded wire is preferred.
2 – This unit is intended to be mounted in indoor dry areas. Avoid dusty, wet and corrosive
locations.
3 – Mount the AR-5 Repeater at least 8 feet high.
4 – Provide adequate space surrounding the unit to allow for;
a – Allow enough room for the hinged cover to be completely opened for easy access
to internal components and wiring.
b - The connection of conduit to the desired cabinet locations.
c – The attachment of omni antennas to both antenna sma connectors.
5 – Avoid electrically noisy locations such as main electrical and transformer rooms,
computer rooms, telephone switching rooms, etc.
