P/N IM-AR5 Rev. F
© 2017 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document
revision date and are subject to change without notice.
18
CONTACT MANUFACTURER FOR COMPLETE PART NUMBERS AND OPTIONS. REFER TO MANUFACTURER
DOCUMENTATION FOR PROPER WIRING OF SYNC MODULES
* UP TO 4 RELAYS CAN BE CONNECTED WITHOUT ANY NOTIFICATION APPLIANCES CONNECTED OR
SUBSTITUTE 1 RELAY FOR 1 NOTIFICATION APPLIANCE IF USED TOGETHER. WHEN USING R-20E RELAYS
THEY SHOULD BE CONNECTED DIRECTLY TO THE NAC OUTPUTS BEFORE THE SYNC MODULE. DO NOT USE
THE R-20E ON A NAC WITH GENTEX SYNC OPTION ON.

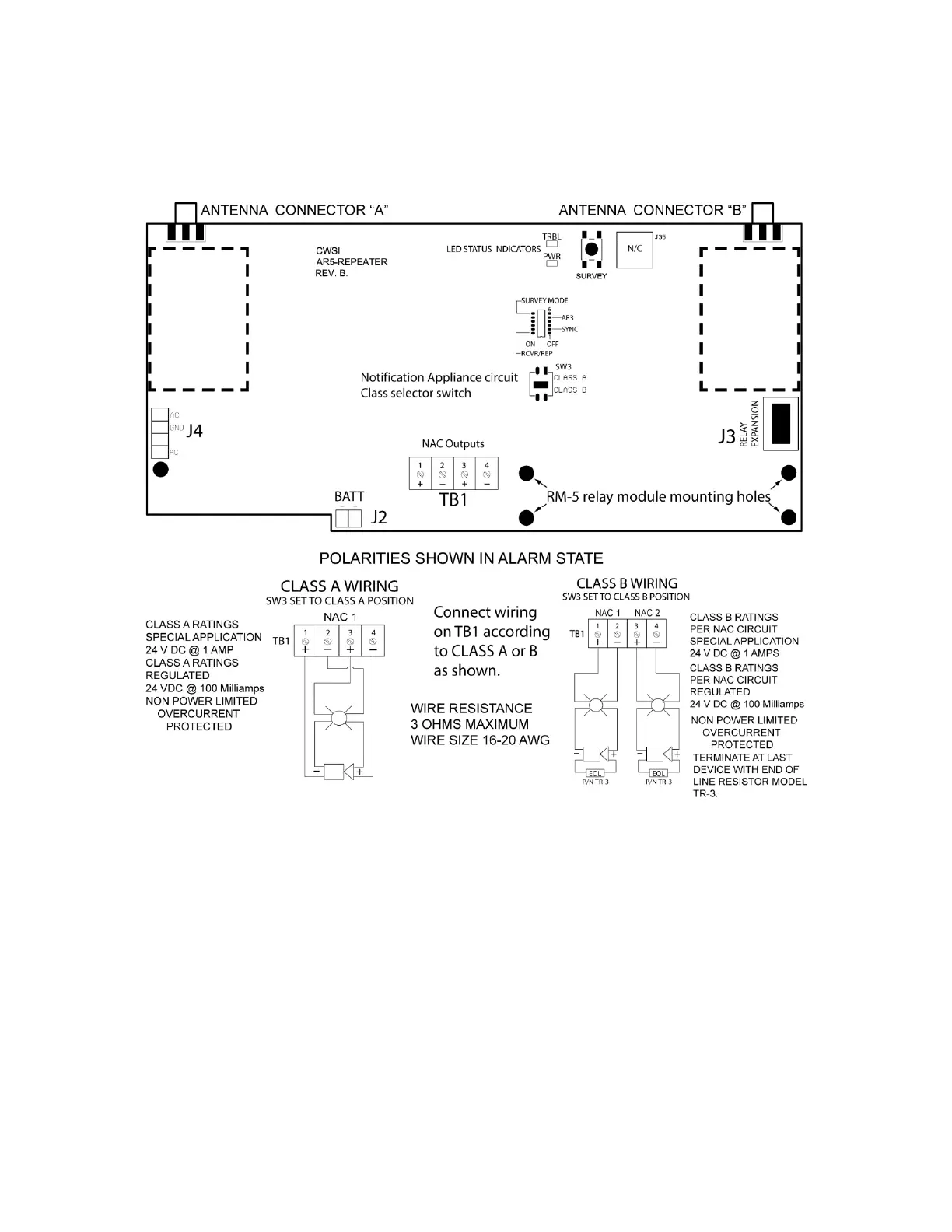

Figure 4
4.2.3 USB Jack J35
This connector is for factory use only. Refer to figure 4 for location.
Section 5 – Optional Model RB Relay Boxes
5.1 Description
The RB relay box is an optional accessory for connection to the AR-5 repeater. It provides up to 40
normally open dry contact outputs. The number of relays corresponds to the model number of the unit
for example RB-10 is a ten relay box. Relay boxes can be ordered in increments of ten relays. The
relay box is connected to the AR-5 repeater with a cable run through conduit. The enclosure is the
same as a repeater.
