Section 2 - Compatibility
2.1 Compatible Equipment and Accessories
Refer to the CWSI control panel manual for complete compatibility details
The following antennas are for use with the AR-5 repeater:
Tyco Fire & Security GmbH
Models: OM-1 Omni – Isotropic gain 2.5 dBi, OM-2 Omni – Isotropic gain 1 dBi, OM-3 Omni –
Isotropic gain 5 dBi, YA-1 Yagi – Gain 15.2 dBi
The following accessories are for use with the AR-5 repeater:
Tyco Fire & Security GmbH
Models:
RB-10, RB-20, R-30, RB-40 Relay Boxes, RM-5 Relay output sub assembly module
CWSI-BPF-915 Optional Band Pass Filter for Antenna SMA connector
Notification Appliances:
As listed in the Notification Appliance Compatibility section of this manual

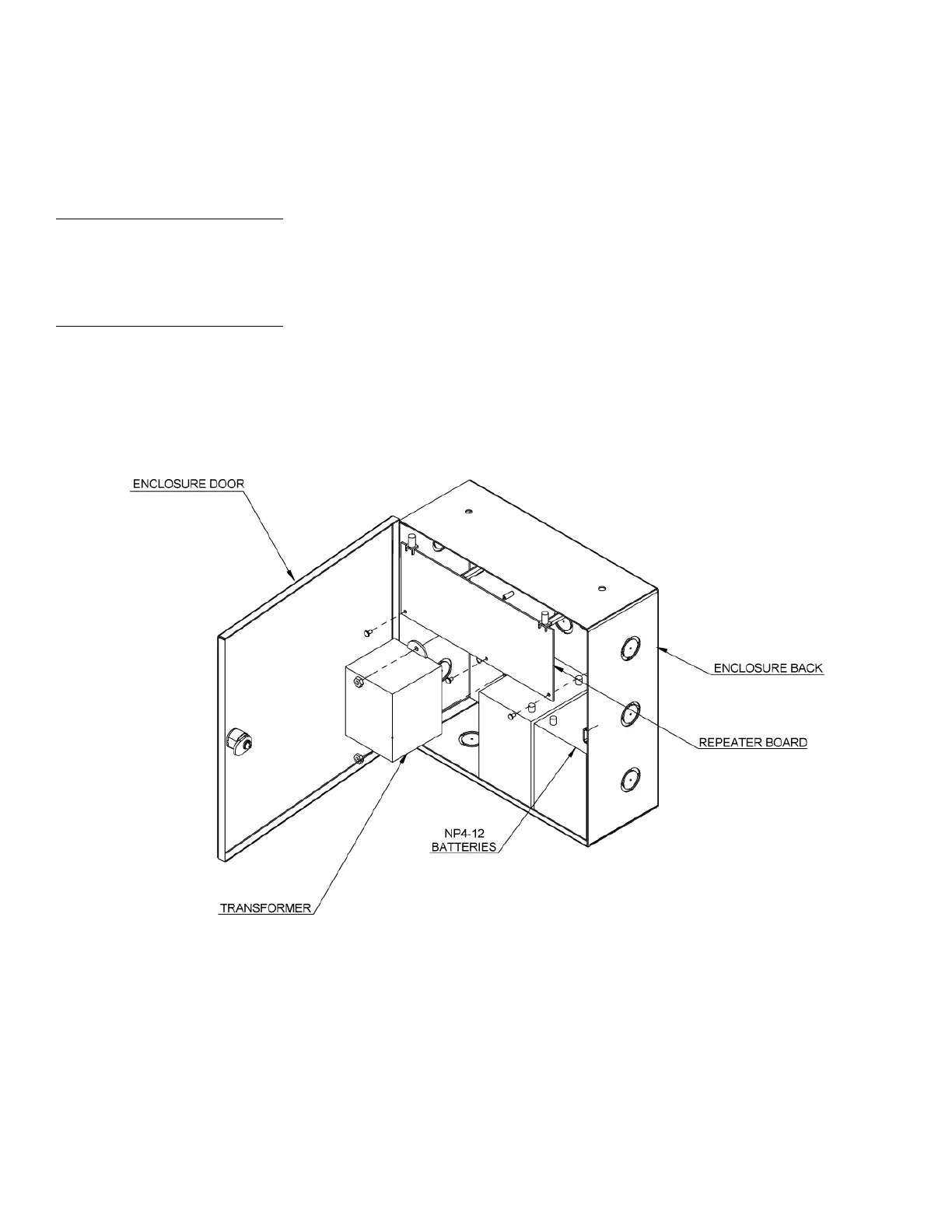

Figure 2
