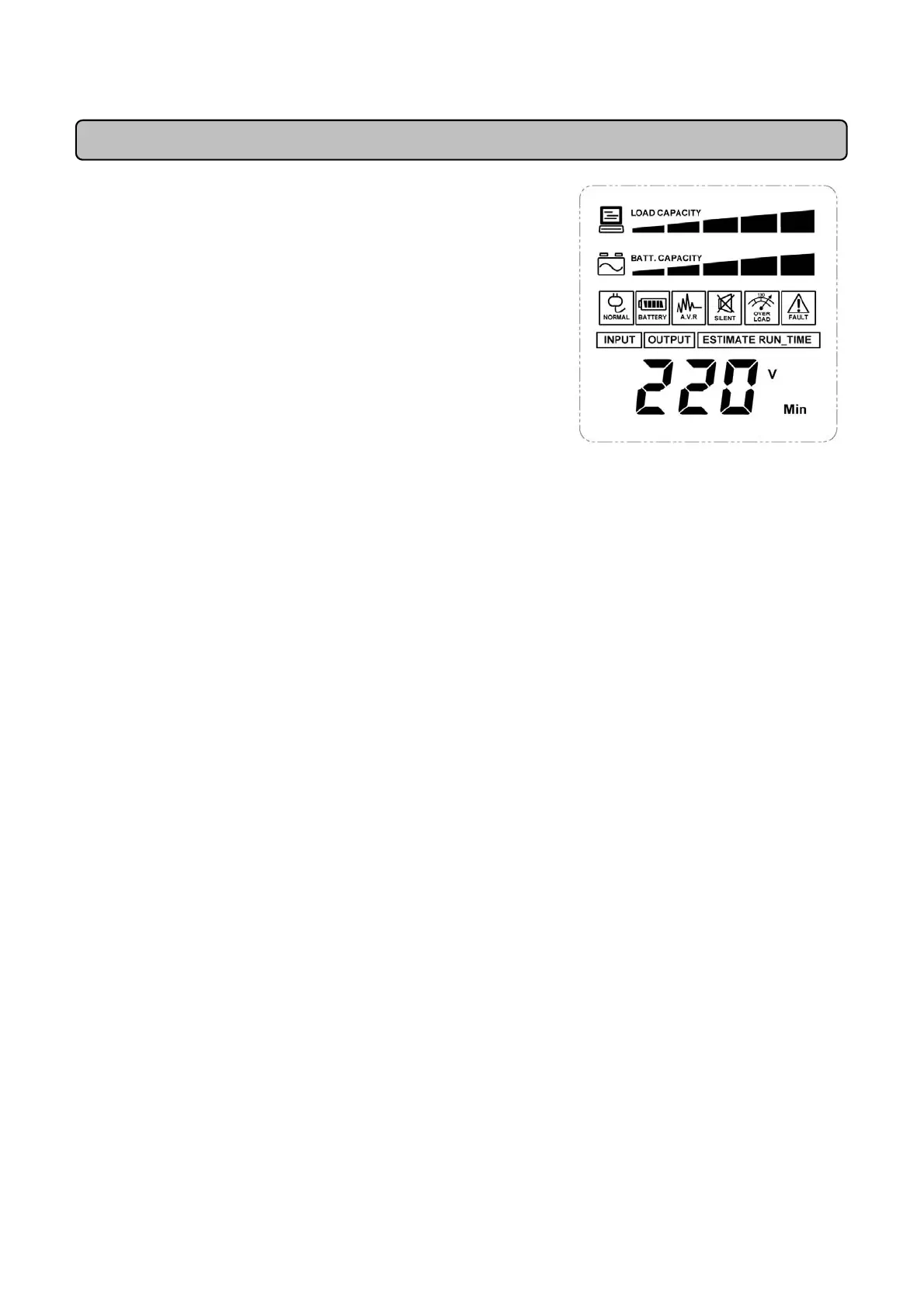

DEFINITIONS FOR ILLUMINATED LCD INDICATORS
INPUT voltage meter: This meter measures the AC voltage
that the UPS system is receiving from the utility wall outlet. The
UPS is designed, through the use of automatic voltage
regulation, to continuously supply connected equipment with
stable, 220/230 output voltage. In the event of a complete
power loss, severe brownout, or over-voltage, the UPS relies
on its internal battery to supply consistent 220/230 output
voltage. The
INPUT voltage meter can be used as a diagnostic tool to
identify poor-quality input power.
OUTPUT voltage meter: This meter measures the AC voltage
that the UPS system is providing to the computer, such as
normal line mode, AVR mode, and battery back up mode.
Note: The OUTPUT voltage meter shows the status of the battery back up outlets.
ESTIMATE RUN TIME: This displays the run time estimate of the UPS with the current
battery capacity and load.
NORMAL icon: This icon appears when the UPS is working under normal GreenPower Bypass
conditions.
BATTERY icon: During a severe brownout or blackout, this icon appears and an alarm sounds (two
short beeps followed by a pause) to indicate the UPS is operating from its internal batteries. During a
prolonged brownout or blackout, the alarm will sound continuously (and the BATT.CAPACITY meter
shows one 20% capacity segment shaded) to indicate the UPS’s batteries are nearly out of power. You
should save files and turn off your equipment immediately.
AVR (Automatic Voltage Regulator) icon: This icon appears whenever your UPS is automatically
correcting low AC line voltage without using battery power. This is a normal, automatic operation of
your UPS, and no action is required on your part.
SILENT MODE icon: This icon appears whenever the UPS is in silent mode. The buzzer does not
beep during silent mode until the battery reaches low capacity.
OVER LOAD icon: This icon appears and an alarm sounds to indicate the battery-supplied outlets are
overloaded. To clear the overload, unplug some of your equipment from the battery-supplied outlets
until the icon turns off and the alarm stops.
FAULT icon: This icon appears if there is a problem with the UPS. Contact CyberPower Systems at
service@cyberpower-eu.com for further help and support.
BATT. CAPACITY meter: This meter displays the approximate charge level (in 20% increments) of the
UPS’s internal battery. During a blackout or severe brownout, the UPS switches to battery power, the
BATTERY icon appears, and the charge level decreases.
LOAD CAPACITY meter: This meter displays the approximate output load level (in 20% increments) of
the UPS’s battery outlets.
