CyberPower OR1000PFCRT2U User Manual

Copyright © 2016 CyberPower Systems, Inc.
2
UNPACKING
The box should contain the following:
(a) UPS unit x1; (b) User manual x1; (c) USB A+B type cable x1; (d) Rackmount bracket x2; (e) Vertical
stand x2; (f) Warranty registration card x1
AUTOMATIC VOLTAGE REGULATOR(AVR)
The OR1000PFCRT2U/OR1500PFCRT2U/OR2200PFCRT2U can stabilize inconsistent utility power.
Incoming utility power fluctuations may be damaging to important data and hardware but Automatic
Voltage Regulation (AVR) helps protect the computer against experiencing dangerous voltage levels. AVR
automatically adjusts low or high voltages to keep equipment working at safe AC power levels (110/120V)
without switching to battery. Your equipment can operate normally even during the power problems such
as brownouts and blackouts. The unit’s powerful sealed lead-acid batteries will provide power only if the
incoming voltage drops below 90V or increases above 140V.

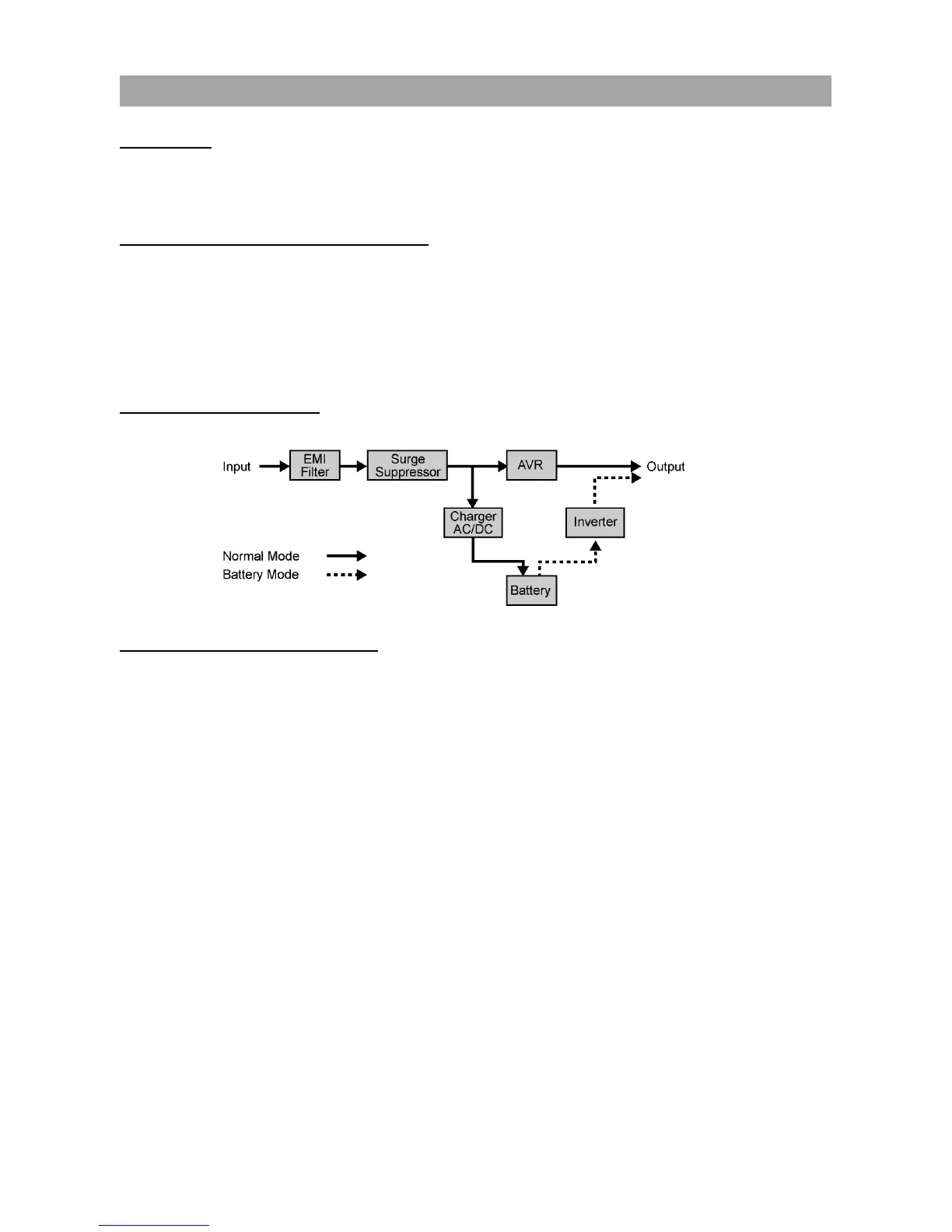

SYSTEM BLOCK DIAGRAM
HARDWARE INSTALLATION GUIDE
1. Battery charge loss may occur during shipping and storage. The first time the UPS is used, it is
strongly recommended to charge the batteries for at least 18 hours to ensure that the batteries are at
their maximum charge capacity. To recharge the batteries, simply plug the UPS into an AC outlet, the
batteries will charge whether the UPS is powered on or not.
2. With the UPS off and unplugged, connect your computer, monitor, and any externally powered data
storage device (Hard drive, Tape drive, etc.) into the outlets. DO NOT plug a laser printer, copier,
space heater, vacuum, paper shredder or other large electrical device into the UPS. The power
demands of these devices will overload and possibly damage the unit.
3. To protect a fax, telephone, modem line or network cable, connect the telephone or network cable
from the wall jack outlet to the jack marked “IN” on the UPS. Then, connect a telephone cable or
network cable from the jack marked “OUT” on the UPS to the modem, computer, telephone, fax
machine, or network device.
4. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet
is protected by a fuse or circuit breaker and does not service equipment with large electrical demands
(e.g. air conditioner, copier, etc). The warranty prohibits the use of extension cords, outlet strips, and
surge strips.
INSTALLING YOUR UPS SYSTEM
(continued)
IN
STALLING YOUR UPS SYSTEM

CyberPower OR1000PFCRT2U Specifications

General

Safety	UL 5th, cUL, FCC class A
Form factor	Rackmount/Tower
Cable length	2.4 m
Display type	LCD
Product color	Black
Rack capacity	2U
LED indicators	Power
Waveform	Sine
Noise level	48.5 dB
Output power	700 W
UPS topology	Line-Interactive
Input frequency	60 Hz
Surge protection	Yes
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Output power factor	0.7
Surge energy rating	1470 J
Output power capacity	1 kVA
Power protection features	Short circuit
Input operation voltage (max)	139 V
Input operation voltage (min)	88 V
Output operation voltage (max)	142 V
Output operation voltage (min)	86 V
Power plug	NEMA 5-15P
AC outlet types	NEMA 5–15R
AC outlets quantity	8 AC outlet(s)
Modem (RJ-11) ports	2
Battery voltage	24 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	10 h
Typical backup time at full load	6.5 min
Typical backup time at half load	18 min
Cables included	Input power cable, Phone (RJ-11), USB cable
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS, ENERGY STAR

Weight and Dimensions

Depth	389 mm
Width	432 mm
Height	89 mm
Weight	16964 g
