CyberPower OR1000PFCRT2U User Manual

Copyright © 2016 CyberPower Systems, Inc.
4
SELECT
ON/OFF
AC INPUT
IN OUT
Push To
RESET
EPO
Serial Port
FAULT
WIRING
6G48
E187679
POWER SUPPLY
UNINTERRUPTIBLE
21
4
3
6
5
87
Max / Outlets
15 Amps
1
711 5
6
2
3
12891013
4

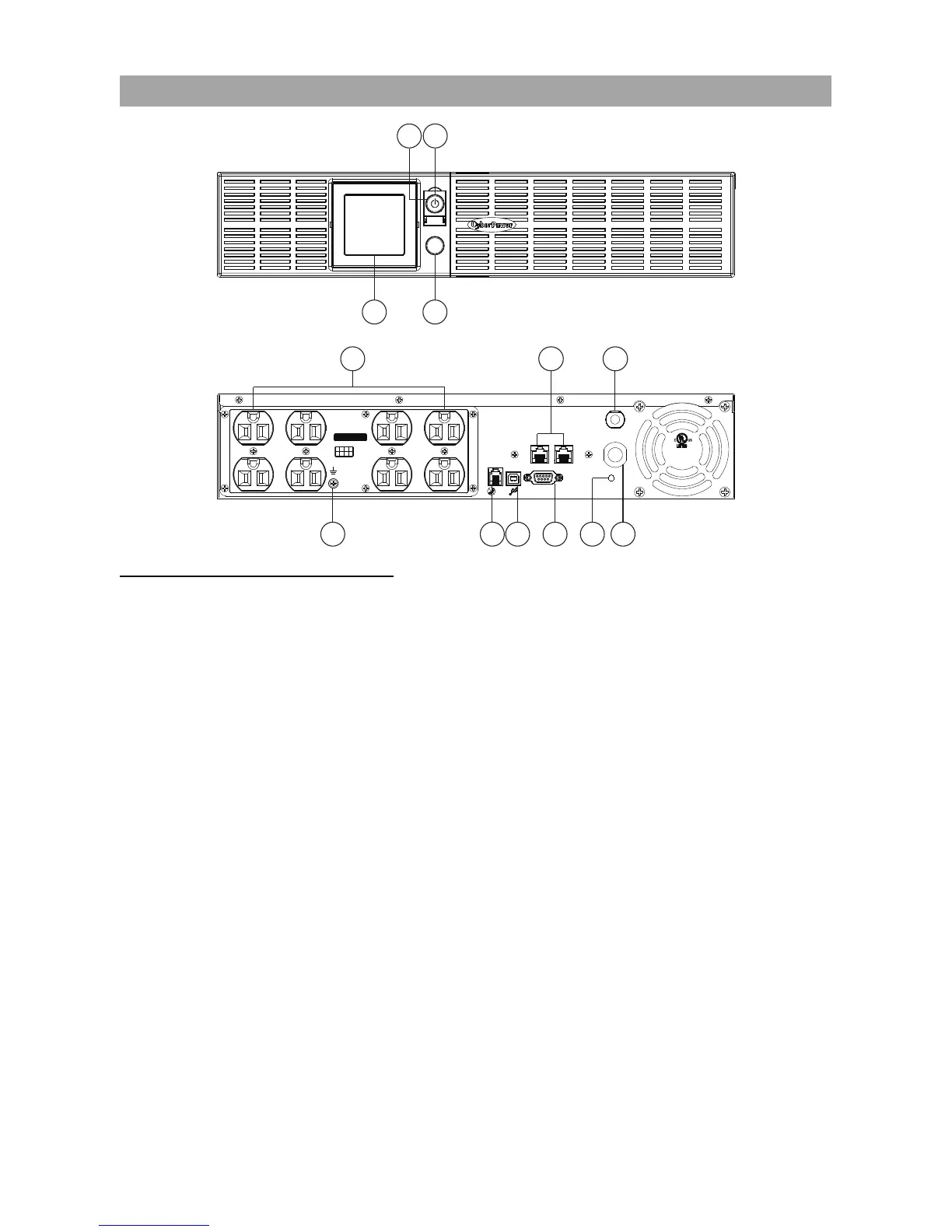

FRONT / REAR PANEL DESCRIPTION
1. Power Switch
Master on/off switch for equipment connected to the UPS.
2. Power On Indicator
An LED ring around the Power Switch indicates that the AC utility input power condition is normal and that
the UPS outlets are providing power, free of surges and spikes.
3. Multifunction LCD Readout
An LCD that shows various UPS information using icons and messages.
4. Display Toggle Button
Used to select among a variety of information the LCD can display.
5. Battery Backup, Surge Protected and AVR protected Outlets
This unit provides a total of 8 outlets with battery backup and surge protection. They ensure that
connected equipment will keep an uninterrupted operation over a period of time, during a power failure.
6. AC Input Power Cord
Connect the AC Power cord to a properly wired and grounded outlet.
7. Input Circuit Breaker
The circuit breaker serves to provide input overload and fault protection.
8. Serial Port
The serial port allows communication between the UPS and the computer. The UPS can control the
computer’s shutdown in case of an emergency, and the computer can monitor the UPS and alter its
various programmable parameters.
BASIC OPERATIO
N

CyberPower OR1000PFCRT2U Specifications

General

Safety	UL 5th, cUL, FCC class A
Form factor	Rackmount/Tower
Cable length	2.4 m
Display type	LCD
Product color	Black
Rack capacity	2U
LED indicators	Power
Waveform	Sine
Noise level	48.5 dB
Output power	700 W
UPS topology	Line-Interactive
Input frequency	60 Hz
Surge protection	Yes
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Output power factor	0.7
Surge energy rating	1470 J
Output power capacity	1 kVA
Power protection features	Short circuit
Input operation voltage (max)	139 V
Input operation voltage (min)	88 V
Output operation voltage (max)	142 V
Output operation voltage (min)	86 V
Power plug	NEMA 5-15P
AC outlet types	NEMA 5–15R
AC outlets quantity	8 AC outlet(s)
Modem (RJ-11) ports	2
Battery voltage	24 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	10 h
Typical backup time at full load	6.5 min
Typical backup time at half load	18 min
Cables included	Input power cable, Phone (RJ-11), USB cable
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS, ENERGY STAR

Weight and Dimensions

Depth	389 mm
Width	432 mm
Height	89 mm
Weight	16964 g
