CyberPower PDU15B8R User Manual

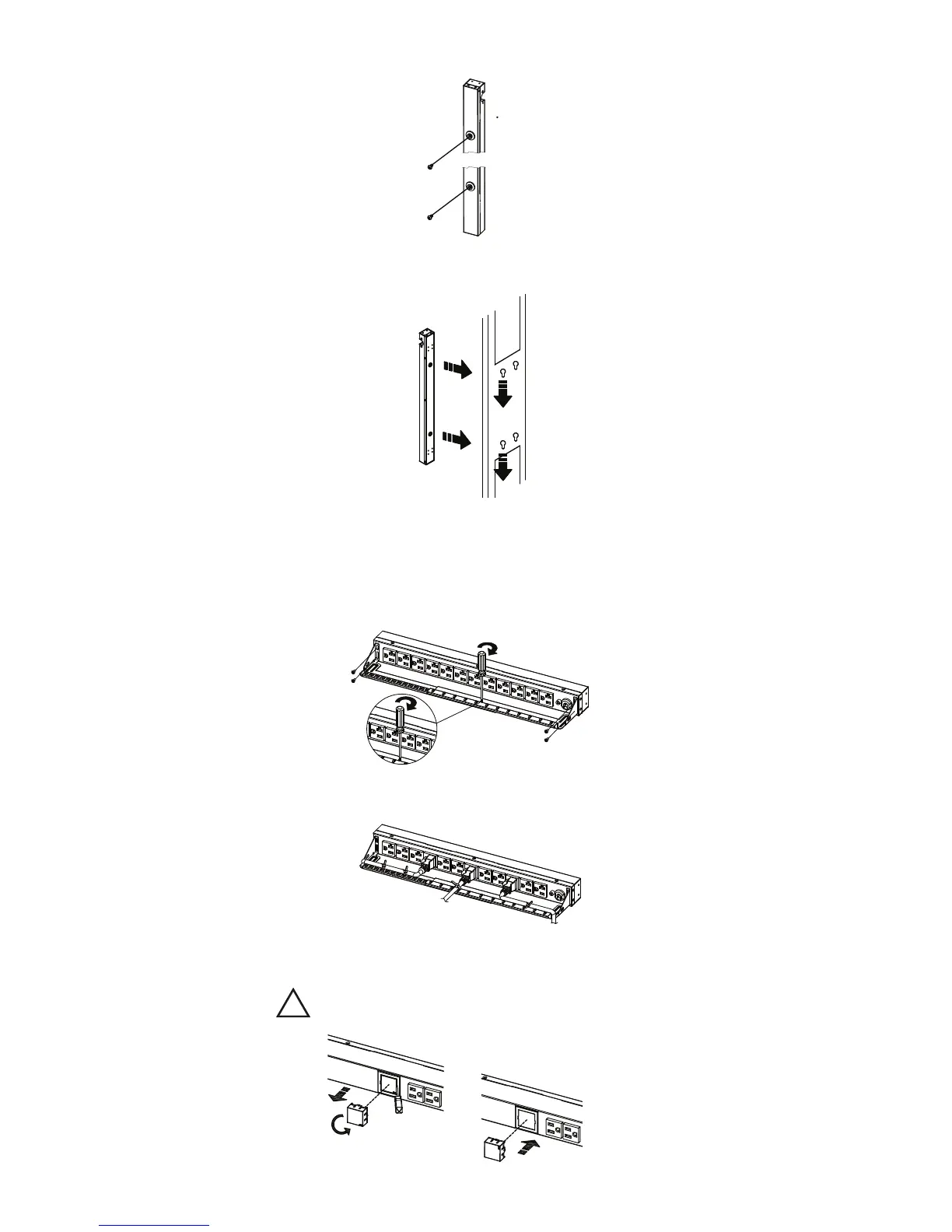

Vertical Installation with Keyhole Mounts (0U Models)
Align the the Keyhole Mounts to the Keyhole Slots on the rack.
Insert and slide down to lock firmly into place.
Step 2 – PDU Mounting
Step 1 – Keyhole Mount installation
Attach the Keyhole Mounting Pegs to the PDU with the 2 supplied
Bracket Mounting Screws (M4 X 6).
For information on Cyberpower products, visit www.cyberpower.com
5
Cord Retention Tray installation
(Optional for both horizontal and vertical installations)
Attach the Cord Retention Tray to the PDU with the 4 supplied Cord
Retention Tray Mounting Screws (M3 X 6). Tighten the Cord Retention Tray
with the screw on it.
Use the Cable Ties provided to fasten each power cord to the Cord Retention
Tray.
Meter Configuration
Use a screwdriver to gently remove the LED Meter. Rotate the LED Meter
90 degrees, and insert back into the PDU.
!
Note
Depending on installation method (vertical or horizontal),
the LED Meter may need to be rotated, before installation,
for proper orientation.
Adjust the length of the Cord Retention Tray till the screw hole on the Tray
and PDU are aligned.

CyberPower PDU15B8R Specifications

General

Maximum current	15 A
AC input frequency	50 - 60 Hz
Nominal input voltage	120 V
Power plug	NEMA 5–15P
AC outlet types	NEMA 5–15R
AC outlets quantity	8 AC outlet(s)
PDU types	Basic
Product color	Black
Rack capacity	1U
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS
Certification	UL1363, CSA C22.2
LED indicators	Yes

Weight and Dimensions

Weight (imperial)	3.5 lbs
Dimensions (W x D x H) (imperial)	17.5 x 1.5 x 1.75 \
